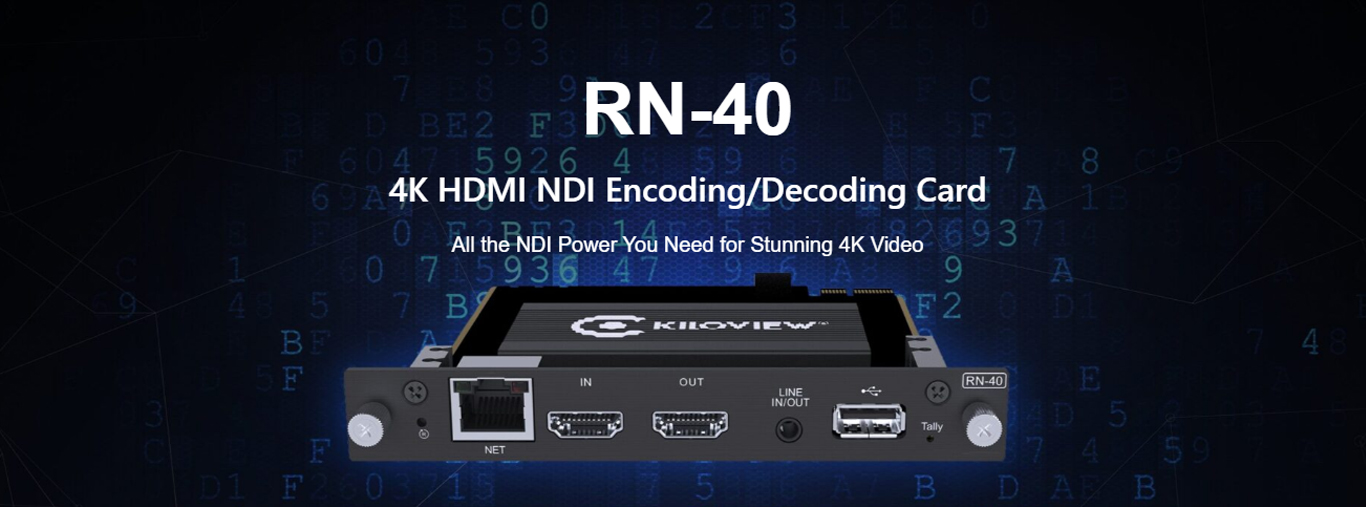

Kiloview RN-40 is a bi-directional HDMI to NDI encoding/decoding card designed for Kiloview rackmount chassis RU01/RU03.
It supports 4Kp60 HDMI encoding to NDI High Bandwidth with loop-through for local monitoring, or decoding NDI High Bandwidth streams back to HDMI output.
Ideal for 4K IP-based production workflows, RN-40 ensures high-quality, low-latency video transmission and supports seamless switching between encoding and decoding modes.
The RN-40 supports encoding HDMI signals (up to 4Kp60) into NDI High Bandwidth streams or decoding NDI streams back to HDMI. With HDMI loop-through, it enables real-time monitoring and efficient signal routing, ideal for IP-based 4K/HD workflows.
The RN-40 delivers 4Kp60 video encoding/decoding with YCbCr 4:2:2 color sampling, ensuring vibrant color and consistent image quality for high-end productions.
• HDMI audio embedding & de-embedding for mixer connection
• Real-time analog audio embedding via 3.5mm input
• 2-channel synced audio with up to 16-channel mapping

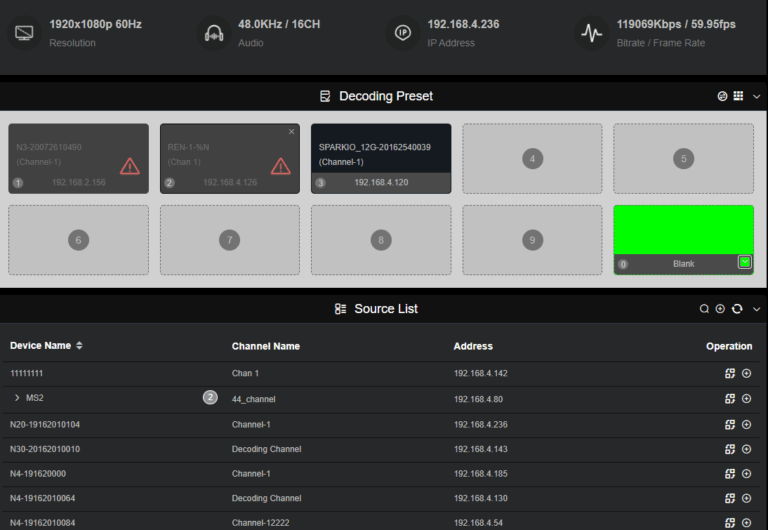

In decoding mode, pre-set up to 9 NDI sources and switch instantly via the web interface—no blackouts, stutters, or signal loss. Transition timing can be adjusted to fit your live production.
Advanced PTZ management supporting USB serial (RS-232/485/422) and IP-based protocols, delivering precise control over 4K camera movements. Designed to enhance complex UHD live productions and remote directing workflows.

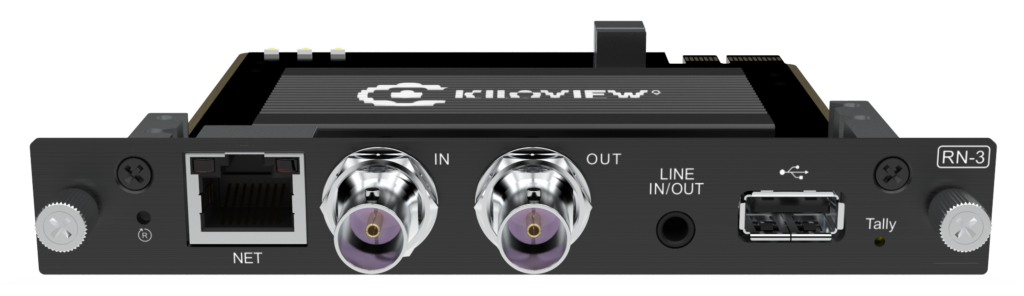

| Model | RN-3 | RN-40 |
|---|---|---|
| Applicable Chassis | RU01, RU03 | RU01, RU03 |
| Video Resolution | Input support: 1920*1080p 60/59.94/50/30/29.97/25/24/23.98fps 1280*720p 60/59.94/50/30/29.97/25/24/23.98fps Output support: 1920*1080p 60/59.94/50/30/29.97/25/24/23.98fps 1280*720p 60/59.94/50/30/29.97/25/24/23.98fps | Input support: 3840*2160p 60/59.94/50/30/29.97/25/24/23.98fps 1920*1080p 60/59.94/50/30/29.97/25/24/23.98fps 1920*1080i 60/59.94/50fps 1280*720p 60/59.94/50/30/29.97/25/24/23.98fps Output support: 3840*2160p 60/59.94/50/30/29.97/25/24/23.98fps 1920*1080p 60/59.94/50/30/29.97/25/24/23.98fps 1920*1080i 60/59.94/50fps 1280*720p 60/59.94/50/30/29.97/25/24/23.98fps |
| Video Port | 1 × 3G-SDI, input 1 × 3G-SDI, output for decoding/loop-out for encoding | 1 × 4Kp60 HDMI, input 1 × 4Kp60 HDMI, output for decoding/loop-out for encoding |
| Video Encoding and Decoding | SpeedHQ (NDI): SHQ0, SHQ2 | SpeedHQ (NDI): SHQ0, SHQ2 |
| Streaming Protocols | NDI HB | NDI HB |
| Interlaced Video Support | 1080i60 interlaced input and 1080i60 interlaced output encoding 720×576i50 interlaced input and 720*576i50output encoding 720×480i59.94 interlaced input and 720*480i59.94 output encoding | 1080i60 interlaced input and 1080i60 interlaced output encoding |
| Color Space | Encoding: NDI High Bandwidth: YCbCr 4:2:0, 4:2:2 Decoding: NDI High Bandwidth: YCbCr 4:2:0, 4:2:2 | Encoding: NDI High Bandwidth: YCbCr 4:2:0, 4:2:2 Decoding: NDI High Bandwidth: YCbCr 4:2:0, 4:2:2 |
| Color Depth | 8-bit | 8-bit |
| Audio Port | 1 × 3.5mm Line in/Line out | 1 × 3.5mm Line in/Line out |
| Audio Encoding and Decoding | NDI Audio, AAC-LC, more audio formats and channels available through custom development | NDI Audio and more audio formats and channels available through custom development |
| Audio Channels | Encoding: 16 channels Decoding: 8 channels | Encoding: 2 channels (supports mapping up to 16 channels) Decoding: 2 channels (supports mapping up to 16 channels) |
| Audio Sampling | Fixed at 48 kHz | Fixed at 48 kHz |
| Network Port | 1 × 1000Mbps Ethernet Port | 1 × 1000Mbps Ethernet port (support PoE) |
| Management | Web-based control or centralized management via KiloLink Server Pro | Web-based control or centralized management via KiloLink Server Pro |
| Voice Intercom | USB headset expansion or group calls via Kiloview Intercom System (KIS) | USB headset expansion or group calls via Kiloview Intercom System (KIS) |
| Video Input Loss Alerts | Default “NO INPUT SIGNAL” image on HDMI disconnect Custom PNG (1920 × 1080 or 1280 × 720) display supported | Default “NO INPUT SIGNAL” image on HDMI disconnect Custom PNG (1920 × 1080 or 1280 × 720) display supported |
| PTZ Control | USB-to-serial (RS-232/RS-485/RS-422) and network protocols (Sony Visca, Pelco-D/P) for external PTZ control | USB-to-serial (RS-232/RS-485/RS-422) and network protocols (Sony Visca, Pelco-D/P) for external PTZ control |
| USB Port | 1*USB 2.0 Type-A | 1*USB 2.0 Type-A |
| Dimensions | 148.65×132.00×19.20mm | 148.65×132.00×19.20mm |
| Weight | 160g | 160g |
