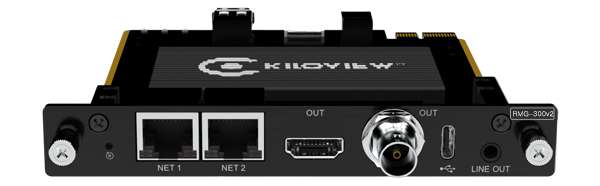

Kiloview RMG300 v2 is a powerful dual-channel 4K media gateway card designed for the Kiloview rackmount chassis RU01/RU03. It supports H.264/H.265 transcoding, dual-channel video decoding and output via HDMI and 3G-SDI, and protocol conversion across NDI HX, SRT, RTMP, RTSP, TS-UDP, and HLS.
With built-in support for video source combination, restreaming, and flexible stream switching, the RMG300 v2 enables seamless interconnection between various IP video systems and signal formats. It works not only as a protocol bridge, but also as a lightweight streaming media server.

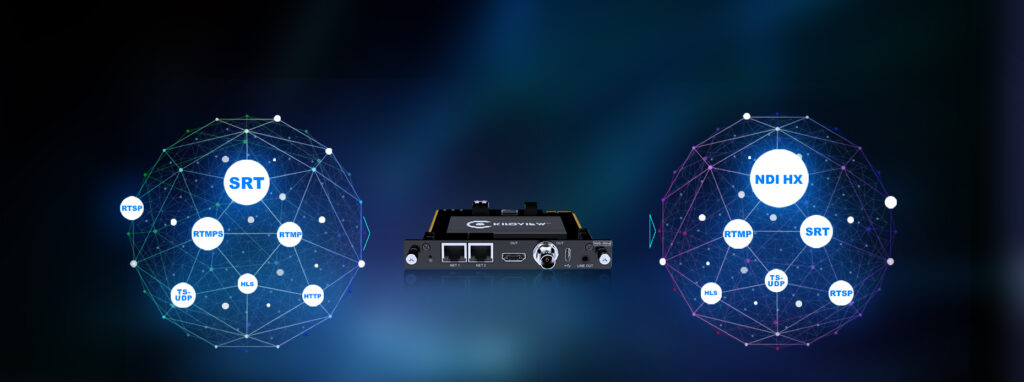

The RMG-300 v2 supports a wide range of streaming protocols, including NDI HX, SRT, RTMP/RTMPS, RTSP, HLS, and TS over UDP/RTP, ensuring compatibility across diverse IP-based video systems.
The RMG-300 v2 supports up to 9 simultaneous IP stream inputs. Each stream can be converted into up to 4 output streams using the same or different protocols, allowing a total of 36 protocol conversions. Sources can also be switched dynamically based on workflow needs.
The RMG-300 v2 supports up to 50 concurrent stream accesses for distribution or live streaming.
* Actual performance depends on network bandwidth, video format, and other factors. Total output bandwidth limit: 600 Mbps.

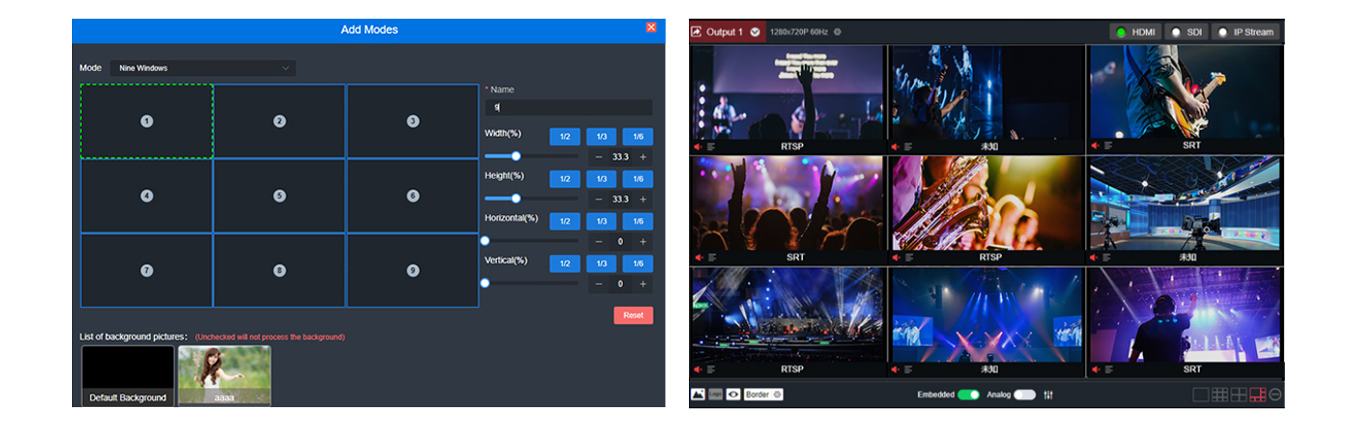

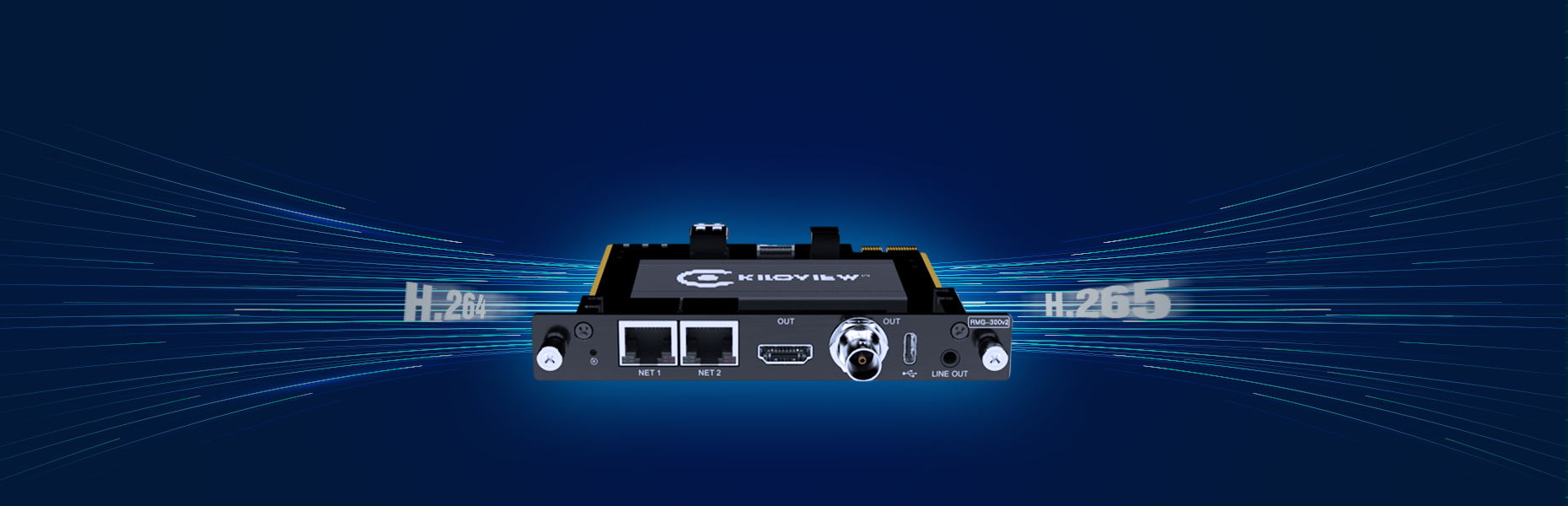

The RMG-300 v2 enables real-time transcoding between H.264 and H.265. It also allows combining multiple streams into a multiview layout for unified output to streaming platforms.
Supports decoding of up to 9 IP streams, with dual output via 3G-SDI and 4K HDMI.
Example: 9 × 1080p30, 8 × 1080p60, or 4 × 4Kp30 channels supported.
| Model | RMG-300 v2 |
|---|---|
| Decoding Output | 1× 3G-SDI Max: 1920×1080@60Hz (1080p60), backward compatible 1× HDMI 2.0 Max: 3840×2160@60Hz (4Kp60), backward compatible |
| Video Decoding | H.264 (AVC) compatible with Baseline, Main, and High profiles, up to Level 5.2; H.265 (HEVC) compatible with Main profile, up to Level 5.1 |
| Streaming Protocols | NDI HX2 / NDI HX3 / SRT / RTMP / RTMPS / HLS / TS over UDP / RTP / RTSP |
| Video Decoding Capability | H.264/H.265: • 16× 1080P30 streams • 9× 1080P60 streams • 4× 4KP30 streams • 1× 4KP60 stream |
| Multi-view Layouts | Custom 1/2/3/4/5/6/7/8/9/16 grid layouts |
| Audio Decoding | AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM |
| Audio Channels | • 4-channel SDI embedded audio • 2-channel HDMI embedded audio • 1 × 3.5mm Line-out (2-channel) |
| Audio Bitrate Range | • AAC: 8Kbps ~ 320Kbps • G.711: 64Kbps |
| Network Port | 2 × 10M/100M/1000Mbps Ethernet ports |
| Stream Distribution Capacity | • 36× SRT/RTMP streams (9 destination × 4 streams each) • Concurrently supports 50× NDI HX/RTSP streams |
| Protocol Conversion Capability | 9-channel simultaneous 1080P transcoding |
| OSD/Graphics Overlay | Custom background images and text/graphics overlay |

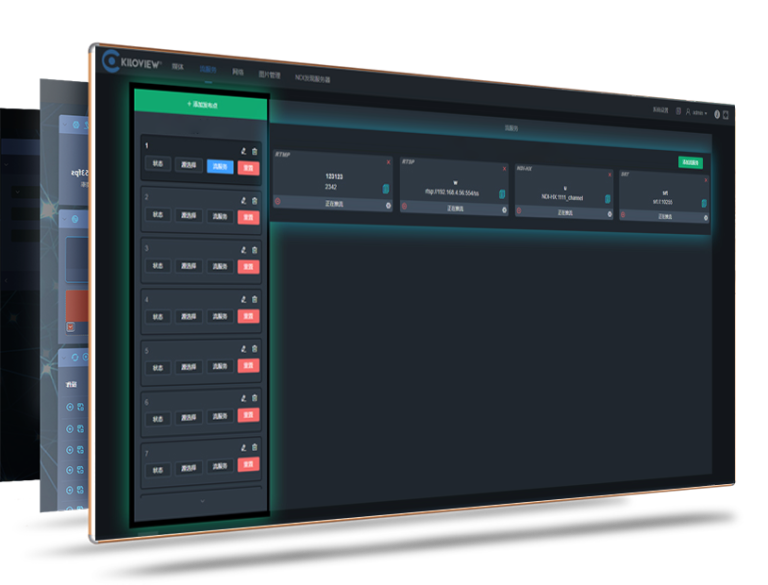

| Management | Web-based control or centralized management via KiloLink Server Pro |
| Voice Intercom | Web-based control or centralized management via KiloLink Server Pro |
| USB Port | 1 × USB 3.0 Type-C |
| Dimensions | 32*132*19.2mm |
| Weight | 200g |
