KiloLink Station is Kiloview’s dedicated hardware designed for professional wireless bonding reception, centralized device management, and high-quality IP/SDI workflows. By integrating the full capabilities of KiloLink Server Pro into a compact, half-1U appliance, it delivers a true plug-and-play experience.
Forget complex server deployments, recurring cloud costs, or Linux environment optimizations. Whether you are managing multi-camera field reports, educational broadcasts, or mission-critical enterprise video, KiloLink Station provides synchronized reception, flexible outputs, and intuitive control in one reliable system.
To meet the demands of diverse production environments, KiloLink Station is available in two specialized configurations:

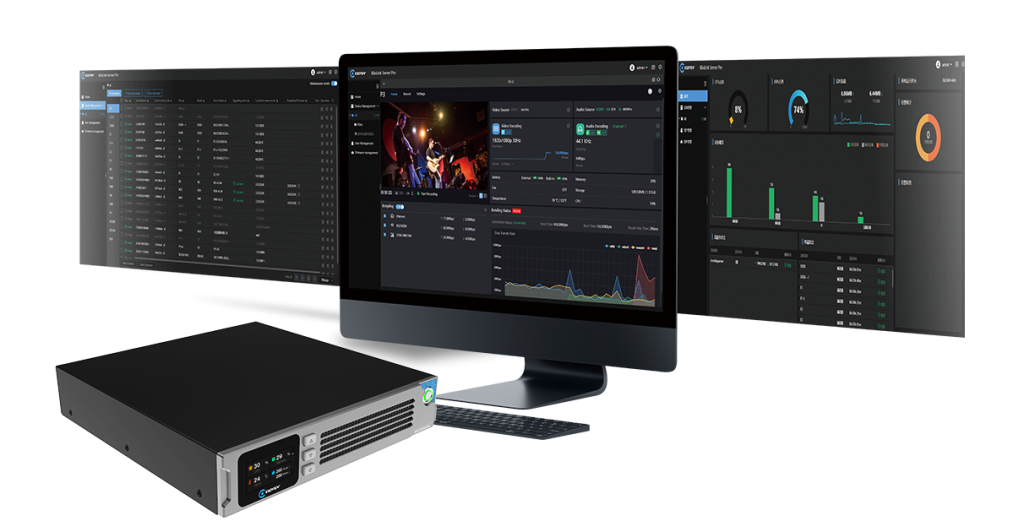

KiloLink Station comes pre-configured with KiloLink Server Pro. It can register KiloLink-enabled devices the moment they power on. No Docker, no commands, and no technical hurdles—just instant, secure connectivity that gets your workflow operational in minutes.
Designed for the field, the system supports simultaneous reception from up to 8 P3 or P3 Mini wireless bonding encoders. Powered by Kiloview’s patented KiloLink technology, it ensures stable transmission across multiple cellular links, even in the most challenging network environments.

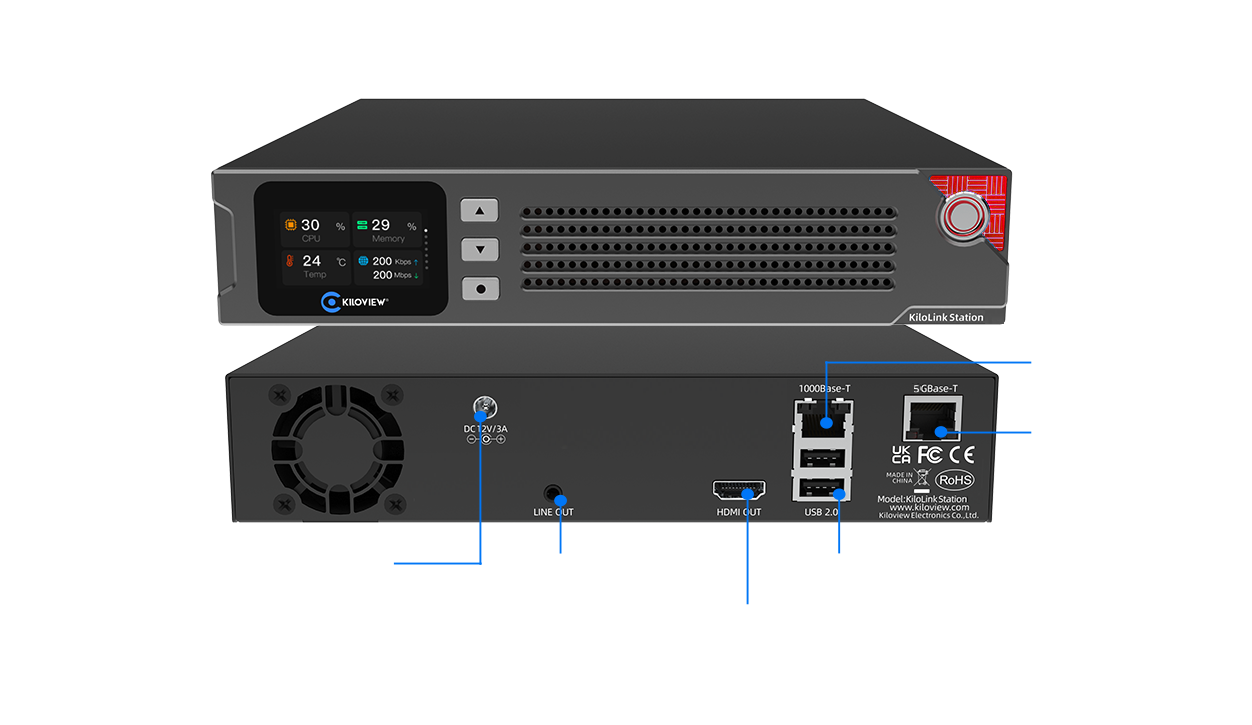

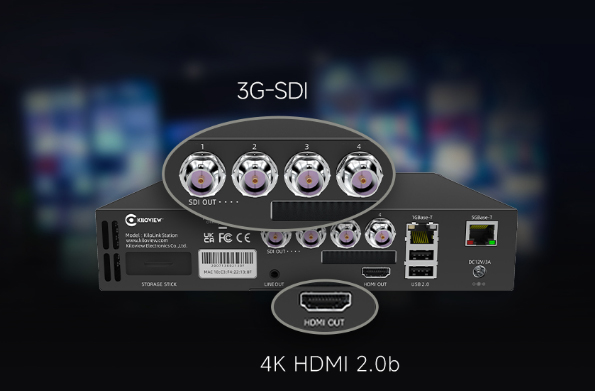

Integrate seamlessly with any studio or OB van. KiloLink Station features:

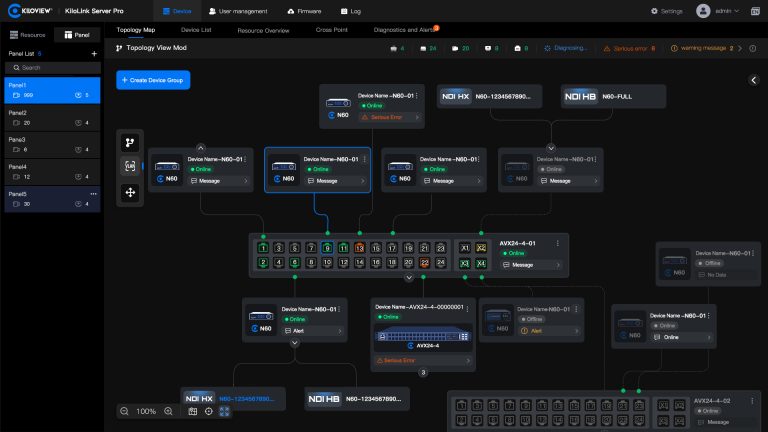

When paired with Kiloview’s AVX Media Hub, KiloLink Station offers a Visualized Topology View, allowing you to monitor device health, connectivity, and signal flow in real-time.
KiloLink Station supports a comprehensive suite of protocols— NDI HX, SRT, RTMP, RTP/RTSP, and HLS.
This versatility allows you to convert video streams coming from Kiloview wireless encoders P3 or P3 mini to any other IP protocols to fit your specific workflow, whether it’s for live streaming, remote point-to-point transmission or NDI production.
Built-in professional SSD storage. record every incoming stream locally.

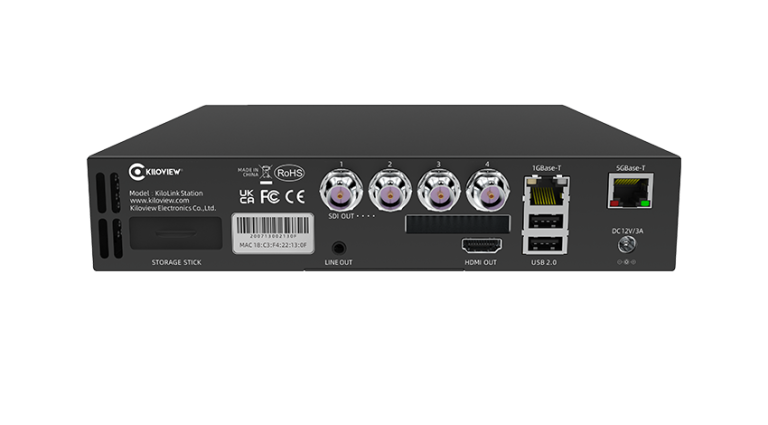

The slim half 1U chassis fits easily into racks or portable setups

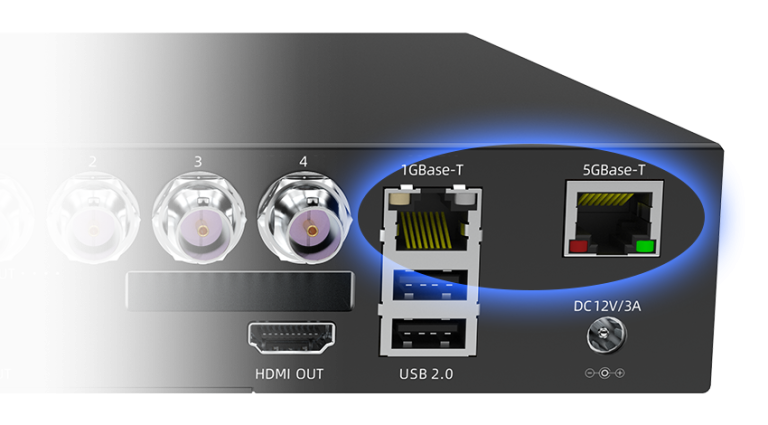

Equipped with 5G and 1G network interfaces for load balancing and network failover.
A rugged, highly integrated hardware architecture designed for continuous, round-the-clock operation.

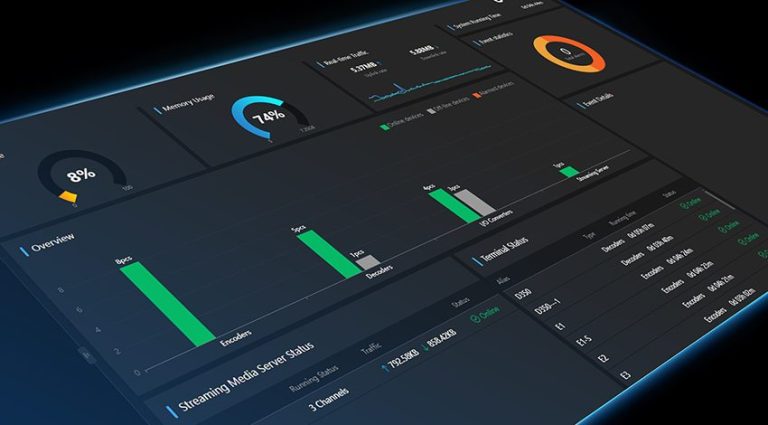

KiloLink Station provides an intuitive, easy-to-use interface for managing devices and workflows.
Kilolink Station includes a comprehensive API, allowing seamless integration with third-party systems or custom applications
| Model | Kilolink Station |
|---|---|
| Memory | 16GB DDR4 |
| Storage | 128GB eMMC |
| Streaming Protocols | NDI HX, SRT, RTMP, RTP/RTSP, UDP and HLS |
| Video Decoding | H.264 / H.265 |
| Bonding Performance | Supports up to 8 × P3 units simultaneously. |
| Video Output | 4 × 3G-SDI (Pro Edition Only): Up to 1920*1080p60 (Downward compatible, includes 1080i50 support) 1 × 4K HDMI: Up to 4KP60 (Downward compatible) |
| Encoding Performance | Simultaneous Encoding: 4 units × 5 streams each. Max Performance: 4K P60 AVC/HEVC 200Mbps @ Level 5.1 Main Tier; ITU-T H.264 High/Main/Baseline Profile @ Level 5.2 |
| Audio Decoding | AAC |
| Audio Output | 1 × 3.5mm Line Out |
| Multiview Layout | Supports up to 4-way split screen (Quad-view) |
| Network | 1 × 5GbE RJ45 Ethernet 1 × 1GbE RJ45 Ethernet |
| Power Supply | DC 12V 3A |
| Power Consumption | ≤ 12W |
| Environment | Operating Temp: -10°C to 50°C Storage Temp: -20°C to 70°C Relative Humidity: 5% to 90% (non-condensing) |
| Management | Web-based UI Management |
| Dimensions | 220 × 231.45 × 44 mm (Compact half-1U; two units can be rack-mounted as 1U) |
| Weight | ≈ 1780g (Standard Edition) |
