1×4 SDI DISTRIBUTION AMPLIFIER

Model- PKDA-1x4 3G

1×4 SDI DISTRIBUTION AMPLIFIER

  • Automatically detects SD, HD and 3G-SDI

  • 4 buffered and re-clocked outputs

  • 3G/HD/SD-SDI multi-rate signal processing

  • Output 2 & 4 support DVB-ASI signal

  •  Automatic cable equalization and signal retiming

  • Pass all ancillary data and embedded audio

  • Micro USB and DC power

  • Detachable bracket design for wall mounting

MECHNICAL: –

• Insertion/Withdrawal Forces: 7 pounds maximum/5 pounds nominal insertion; 7
pounds
• maximum/5 pounds nominal withdrawal
• Life: 10,000 operations (minimum)

Model- PKDA-1x4 3G-1

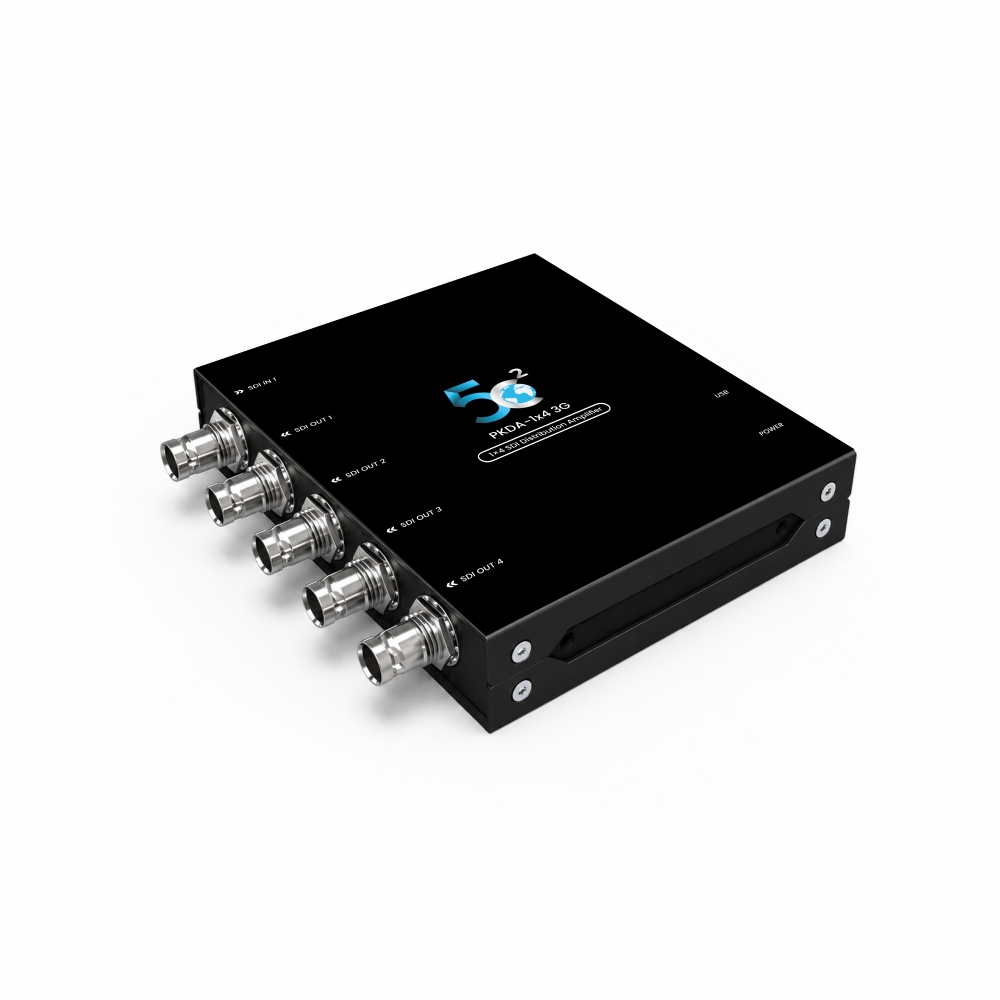

Model- PKDA-1x4 3G-2

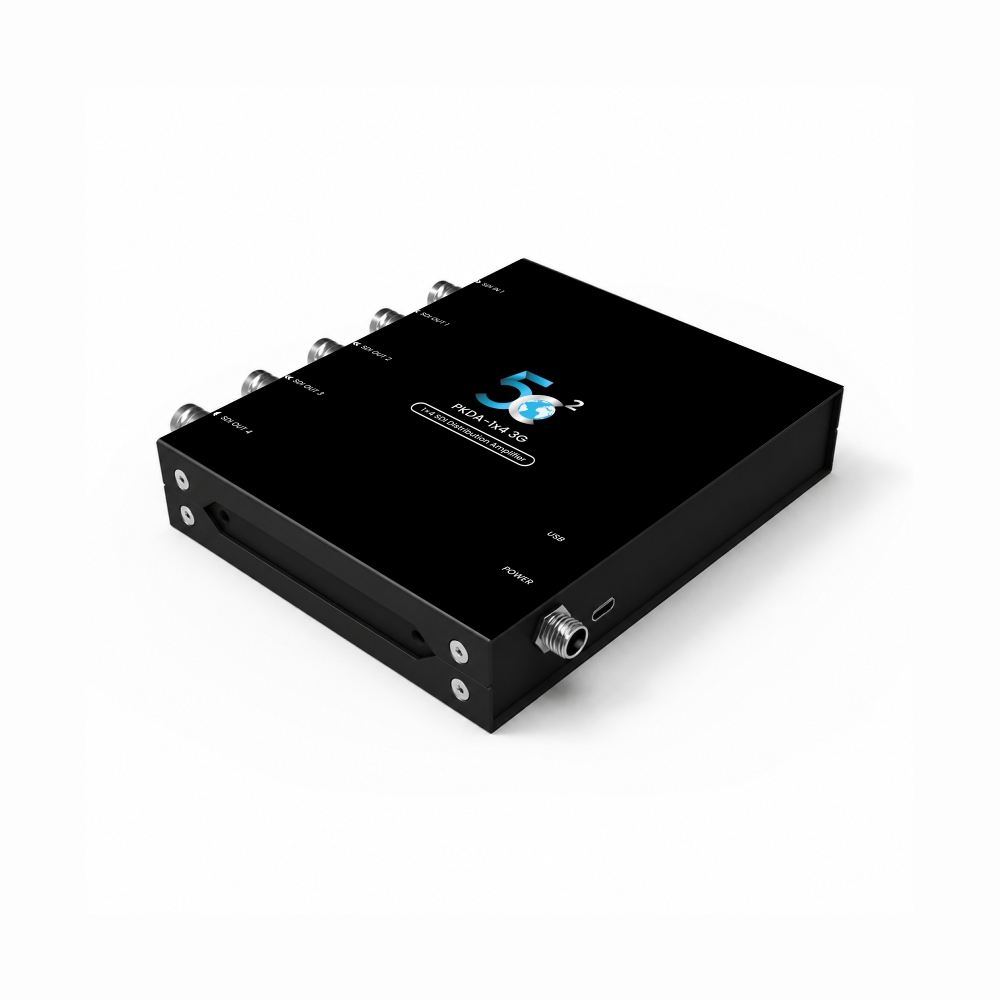

Model- PKDA-1x4 3G-3

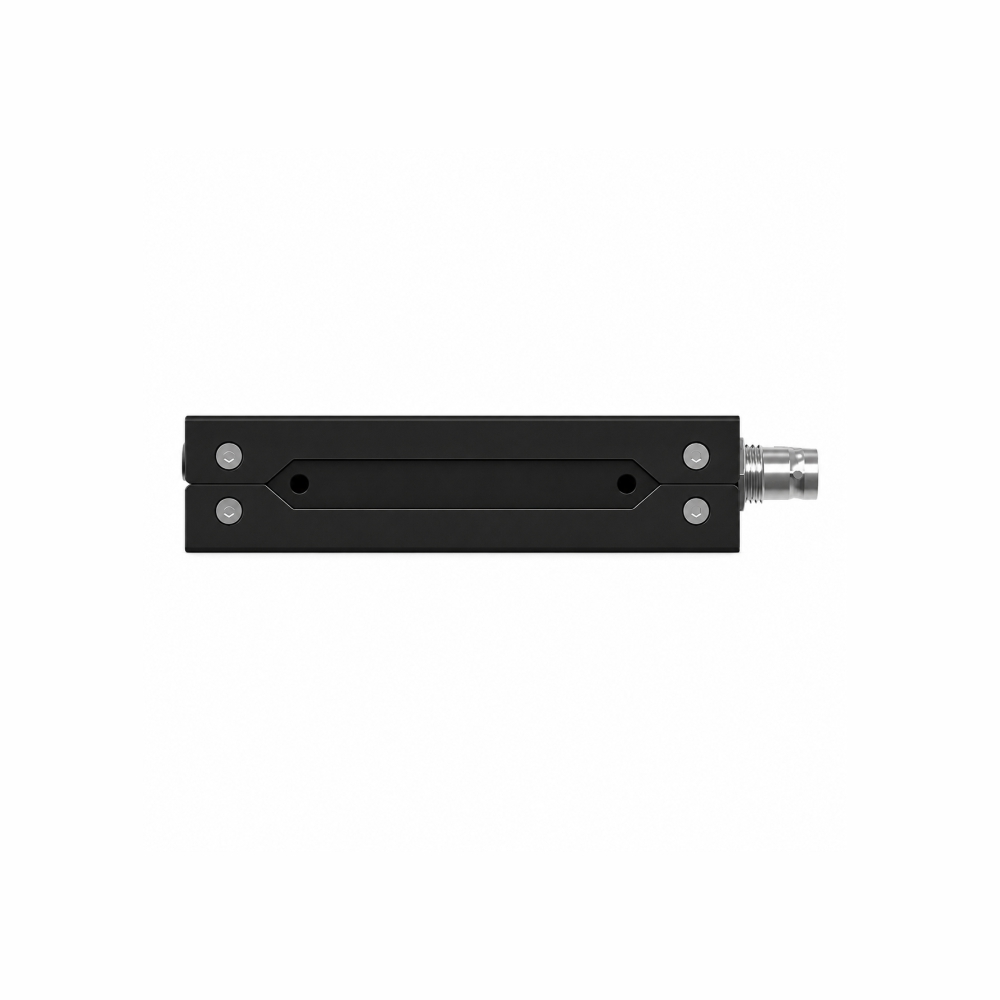

Model- PKDA-1x4 3G-4

ENVIRONMENTAL: –

• Thermal Range: -55° C to +85° C

• Humidity: Meets MIL-STD-202F, method 106E

• Thermal Shock: Meets MIL-STD-202F, method 107D

• Salt Spray: Meets MIL-STD-202F, method 101D

MATERIAL: –

• Shells: Die-cast; satin-nickel or Black Velvet

• Inserts: Glass-filled thermoplastic

• Socket Contacts: Copper alloy, silver- or gold-plated

• Pin Contacts: Copper alloy, silver- or gold-plated

• Latch Release: Steel, nickel-plated

• Insert Locking Cam: Die-cast zinc
