Featuring frame rates up to 1080p60, 10x optical zoom, and dual SDI and NDI® outputs, P100 gives you professional level quality, performance, and total flexibility.

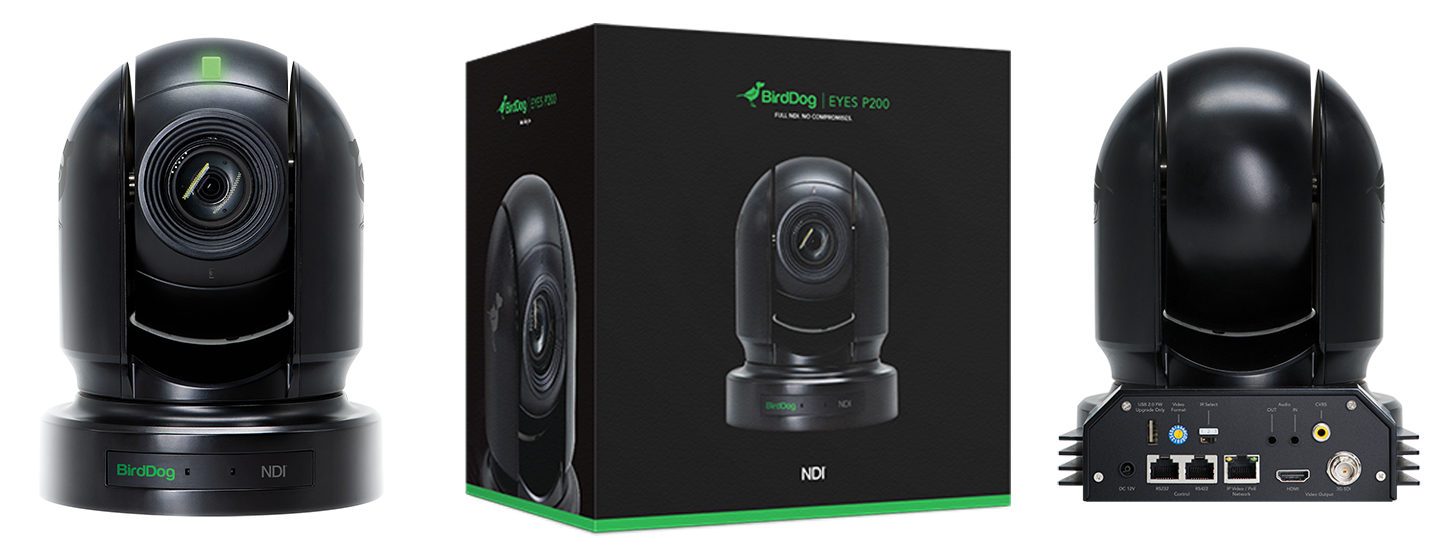

By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS Backlit Sensor, and a true Sony Image Module, P200 has lightening auto focus, incredibly sharp images, and insanely fast zoom.
Designed for fixed outdoor installations such as sports, the IP67 rating means A200 can withstand pretty much any weather conditions.

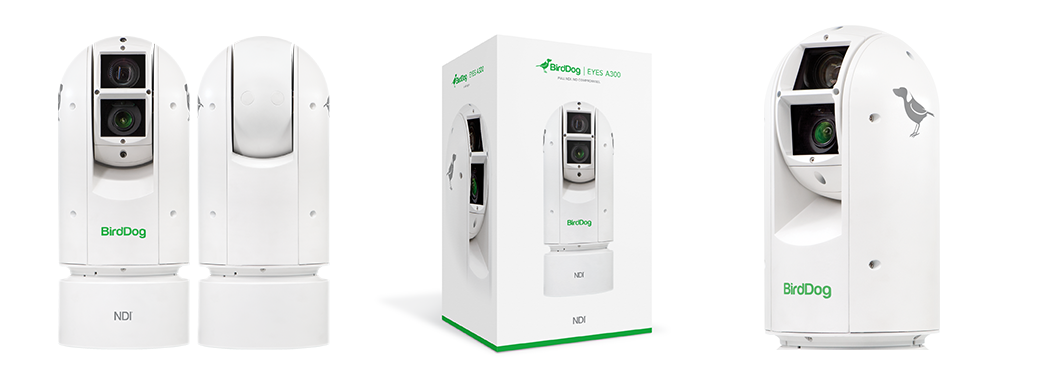

Designed for fixed outdoor installations such as sports, the IP67 rating and the Wind Load Durability rating equal to that of a category 4 Hurricane, which means A300 can withstand pretty much any weather conditions.

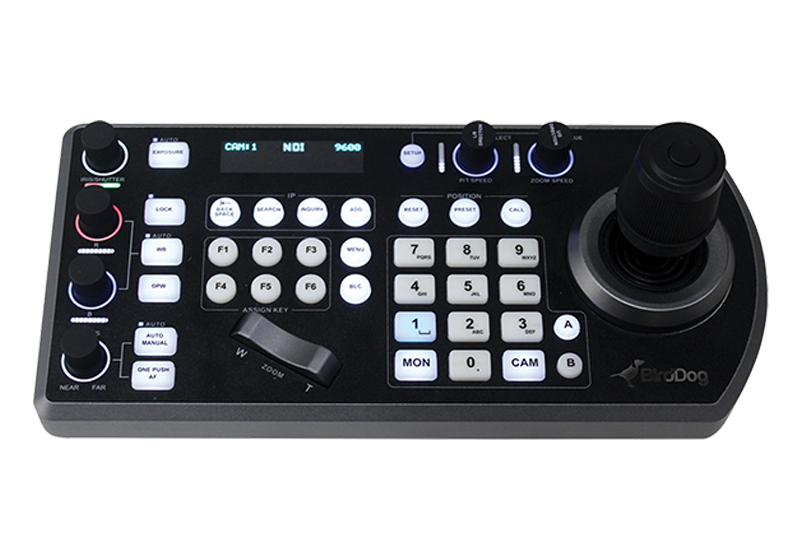

BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras.

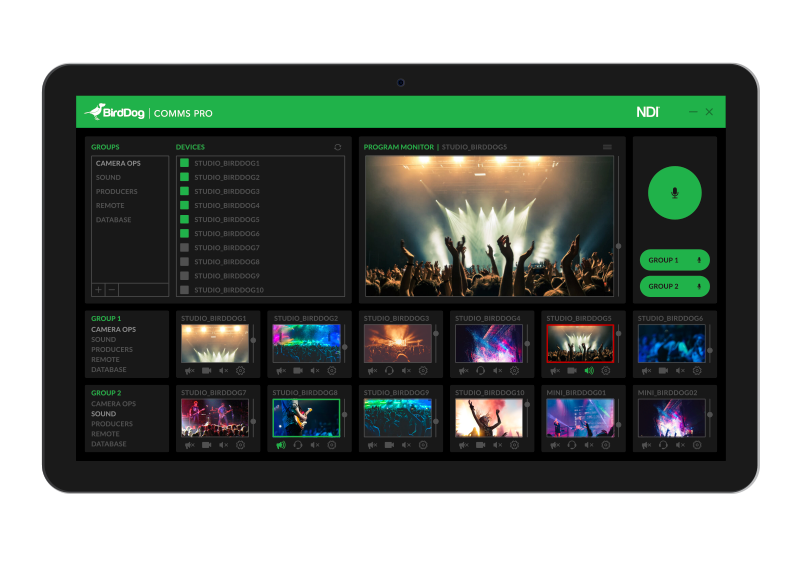

By harnessing the true power of NDI®, BirdDog Comms Pro is the world’s first audio intercom system integrating live camera feeds. Be in total control and see every angle of your live production with live video windows from every BirdDog Studio NDI or Mini enabled camera source.

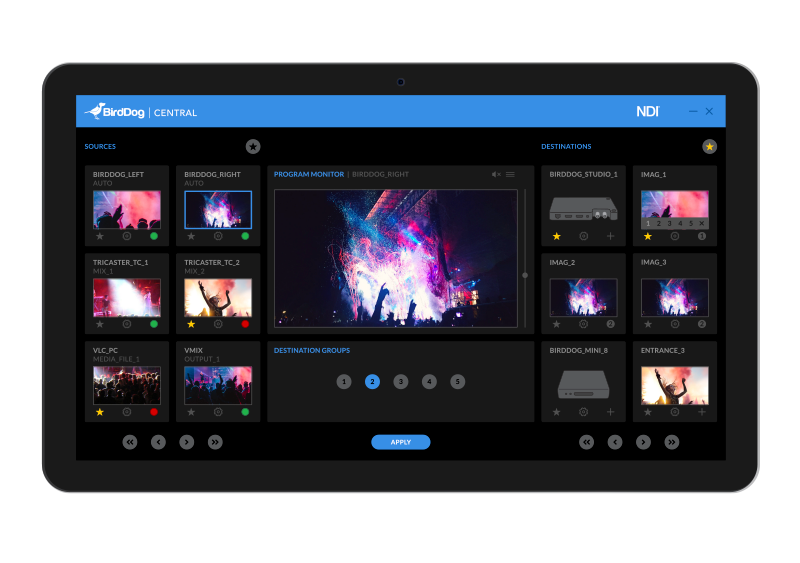

BirdDog Central Pro is a software platform that is set to redefine the way we think about pushing content to TV screens. By teaming up Central with Mini or Studio NDI you can now drive your NDI® streams to any BirdDog hardware destination.
| Feature/Specification | P100 | P200 | A200 | A300 |
|---|---|---|---|---|
| CAMERA | ||||
| Image Sensor | 1/2.86" CMOS 2.2MP | 1/2.8" CMOS 2.13MP | ||
| Lens | 4.7 - 47mm | 4.3 - 129mm | ||
| Optical Zoom | 10x | 30x | ||
| Digital Zoom | 12x | 12x | ||
| Horizontal Angle of View | 69.9º(W) - 6.43º(T) | 63.7º(W) - 2.3º(T) | ||
| Aperture | F1.6(W) - F3.0(T) | F1.6(W) - F4.7(T) | ||
| Min. Illumination | 0.5 lux | Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode) |
||
| Shutter Speed | 1/1 - 1/30000s | 1/1 - 1/10000s | ||
| Focus | Auto, Push, Manual | |||
| White Balance | Auto, Indoor, Outdoor, Manual, OPW, ATW | |||
| Exposure | Auto, Manual, Shutter/Iris Priority | |||
| Backlight Compensation | YES | |||
| MECHANICAL | ||||
| Pan Movement | Horizontal: ±350º continuous pan * | Horizontal: ±360º continuous pan * | ||
| Tilt Movement | Vertical: +90º to -30º * | Vertical: +90º to -15º * | ||
| Preset Position | 128 (Speed adjustable: Up to 150°/s) | 255 (Speed adjustable: Up to 150°/s) | ||
| Preset Speed | 0-5 Level adjustable | - | ||
| Environmental | Indoor | Out/Indoor, IP67, corrosion resistant treated housing | Out/Indoor, IP67, corrosion resistant treated housing, wind load durability 60m/s, Nitrogen filled housing | |
| Illumination | - | IR Laser, up to 500m | ||
| Operating Temperature | -10 to +50 (ºC) | -40 to +60 (ºC) | ||
| Operating Humidity | ≤80% | |||
| Infrared | - | Adaptive, illum. up to 100m | - | |
| VIDEO INTERFACE | ||||
| Video Outputs | NDI/SDI | NDI/HDMI/SDI | NDI/SDI | NDI/SDI |
| Video Formats | 1080p 60, 59.94, 50, 29.97, 25 • 1080i 60, 59.94, 50 • 720p 60, 59.94, 50, 29.97, 25 | |||
| Audio I/O | 3.5mm Audio In (Stereo) - 3.5mm Audio Out (Stereo) | |||
| CONTROL INTERFACE | ||||
| IP PTZ Control | NDI Control (auto configuring) | |||
| Serial PTZ Control | 2x RJ45: RS232/RS422/RS485 | |||
| Serial Control Protocol | VISCA / Pelco D | |||
| POWER & DIMENSIONS | ||||
| Power Input | 12v DC | 12v DC, PoE + (IEEE 802.3at) | - | |
| Power Consumption | - | Min. 15W, Max. 60W (-40°C) | Min. 24W, Max. 80W (-40°C, IR Laser ON) | |
| Dimensions | 145x145x154mm | 160x178x220mm | 210x210x333 | 180x180x423mm |
| Weight | 1.0Kg | 2.0Kg | 5.5Kg | 10.2Kg |
| NETWORK | ||||
| Video Compression | Full NDI – i-frame high quality low latency NDI for production | |||
| Network Protocol | NDI – Discovery, configuration and control | |||
| Web Control Interface | Full control via Web/Mobile UI inc. Scene presets | |||
