World’s First NDI® PTZ Controller.

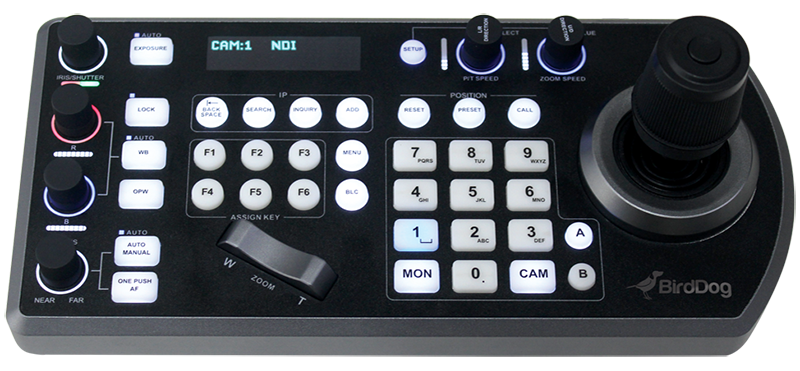

BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for.

Universal control. Mix and Match protocols.

Never before has a PTZ controller been so flexible. PTZ Keyboard is the world’s first PTZ controller with NDI® and NDI|HX support. Along with NDI® there is support for Visca over IP, RS422, and RS232. You can mix and match cameras from any of the supported protocols and control them all from a single PTZ Keyboard.

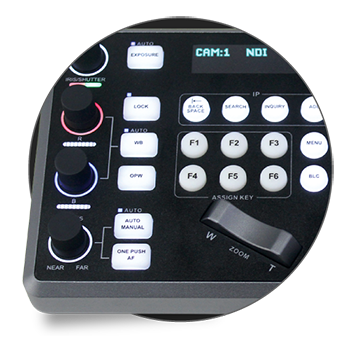

Superior Ergonomics. Built for Humans.

TUsing the PTZ Keyboard is a breeze with well thought out button layout. Quickly access all the cameras on the network, and set up quick access buttons for all your favourite settings such as Exposure, Focus, Zoom, and movement speeds.

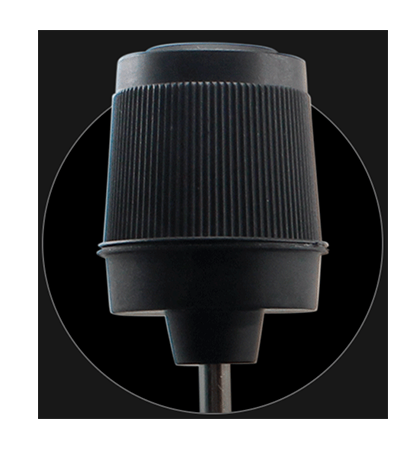

3-Way Joystick. Pan, Tilt, Zoom.

Effortless, one handed control of Pan, Tilt, and Zoom is possible with the 3-Way Joystick. For those who prefer a zoom rocker there is also one of those exactly where your left hand wants it.

Soft touch buttons. Treat your fingers.

Your fingers will thank you for using the PTZ Keyboard. Soft-touch silicon buttons and easy turn dials give a premium sensation while achieving the responsiveness you expect and deserve.

6 program buttons. Work how you want to work.

Set up your quick access buttons to work the way you want. Exposure, Focus, PT Speed, Zoom, Shutter Speed, Iris, White Balance, Compensation, and more, can all be programmed into the assignable buttons.

By the power of PoE. You have the power.

Super flexible powering options allow you to power the PTZ Keyboard from Power over Ethernet (PoE), DC in, or even over the serial port. Never get stuck in a situation where you can’t power up.

Control 255 cameras. Yes, 255.

Designed to control up to 255 PTZ cameras on a single network, PTZ Keyboard can scale to even the most complex installations.

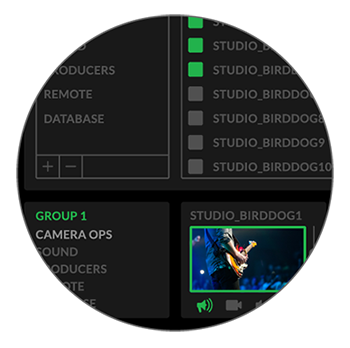

Free Comms Lite. Upgrade to Comms Pro.

PTZ Keyboard includes free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director. For more information on Comms Lite and how to get your free copy click here.

Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you create you up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more. Comms Pro is just $495 and you can read more about it here.

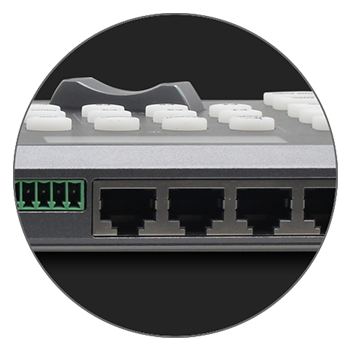

INPUT/OUTPUT CONNECTORS

Control Input/Output

LAN: RJ45 x1 (With PoE) 100 BASE-TX

RS232: RJ45 x1

RS422: RJ45 x2

CONTROL SIGNAL FORMAT

NDI^® CONTROL

VISCA over IP

RS 232/ RS422: Baud Rate 2400 / 4800 / 9600 / 19200 / 38400

USER INTERFACE

Display: LED

Speed control: YES, 2 knobs (pan/tilt, zoom)

Zoom rocker: YES

Zoom ring ibn joystick: YES

Programmable function buttons: 6

CAMERA CONTROL

Maximum camera control: Max. 255 with multiple protocols including NDI/IP

Maximum serial connections:

RS232: 7 – RS422: 7

Key/Button illumination: Multi-colour LED

BUTTONS

Exposure Selection: Yes, Button

One push White balance: Yes, Button

Backlight control: Yes, Button

Display status of WB, Iris, Gain, Shutter, Focus: Yes

White balance model selection: Yes, Button

R, B, Gain: Yes, Knob

Iris Adjustment: Yes, Knob

Shutter Speed: Yes, Knob

Focus model selection: Yes, Button

One push auto focus: Yes, Button

Manual focus: Yes, Knob

GENERAL

Power input: DC 12V, PoE (Power over Ethernet), Power via RS232/RS422 port

Current: 3W

Operating Temp: 0-40 (ºC)

Dimensions: 278x132x99.5mm
