NDI® has never looked so good.

Designed for serious production the image quality of P200 is best in class. By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS Backlit Sensor, and a true Sony Image Module, P200 has lightening auto focus, incredibly sharp images, and insanely fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and features independent, live triple outputs in SDI, HDMI and Full NDI®.

Full NDI®. No compromises.

In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P100 is a Full NDI® camera.

Sony Sensor. You deserve the best.

The best pictures come from the best silicon. P200 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Your productions deserve the best.

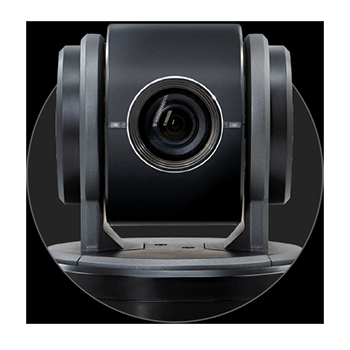

Sony Image Module. Optics done right.

Lightning auto focus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with image module made by the world’s best. P200 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.

BirdDog and Bolin. BFF’s.

Sometimes a partnership is so strong it creates more than the sum of the individual parts. BirdDog and Bolin have joined forces to bring the World’s Best range of NDI PTZ gear to market. With Bolin’s commitment to using the highest quality Sony Sensors and their ability to build weatherproof cameras BirdDog knew there was only one PTZ partner that shared BirdDog’s vision of bringing to market the highest quality products at reasonable prices. Through BirdDog’s NDI know-how and Bolin’s unrivalled PTZ engineering pedigree an unbreakable partnership has formed. Batman and Robin. Mulder and Scully. Joanie and Chachi. You get the idea.

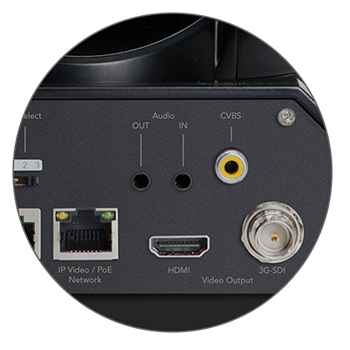

Triple output. NDI®, SDI and HDMI.

With NDI®, SDI, and HDMI simultaneous outputs the P200 is ready to go live with your full NDI® workflow today or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232. No matter which way you like to work, you can rest easy in the knowledge that P200 has you covered for all workflow situations.

30x Optical zoom. Over there is now over here.

Never miss a shot again. 30x optical zoom brings the whole world to you. Now you can zoom in to the other end of a football game and stay locked in on the action. The incredible optical zoom function makes P200 perfect for sports such as football, baseball, hockey, ski fields, basketball, soccer, and more.

PoE or DC. You have the power.

P200 can be powered by Power over Ethernet (PoE) or from the included power adapter.

PTZ Keyboard. Take control.

Combine P200 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control P200 over NDI® or by RS422 / RS232 when using in SDI mode.

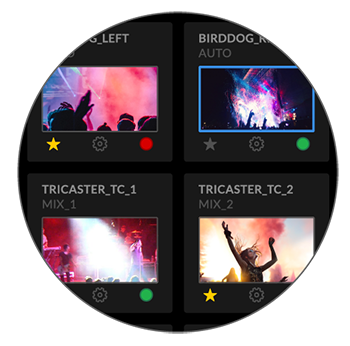

Free Comms Lite. Upgrade to Comms Pro.

P200 includes free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director. For more information on Comms Lite and how to get your free copy click here.

Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you create you up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more. Comms Pro is just $495 and you can read more about it here.

Distribute NDI® content everywhere. Just add Central.

BirdDog Central is a software platform set to redefine the way we think about driving content to TV screens. By teaming up Central with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI or Mini to decode NDI® back to SDI or HDMI. For more information on Central click here.

CAMERA

IMAGE SENSOR
1 / 2.8 inch CMOS 2.13MP

LENS
4.3-129mm

OPTICAL ZOOM
30x

DIGITAL ZOOM
12x

HORIZONTAL ANGLE OF VIEW
63.7° (W) – 2.3°(T)

APERTURE
F1.6 (W) – F4.7 (T)

MIN. ILLUMINATION
Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)

SHUTTER SPEED
1/1 – 1/10000s

FOCUS
Auto, Push, Manual

WHITE BALANCE
Auto, Indoor, Outdoor, Manual, OPW, ATW

EXPOSURE
Auto, Manual, Shutter/Iris Priority

BACKLIGHT COMPENSATION
YES

MECHANICAL

PAN MOVEMENT
Horizontal: ±350º continuous pan (Zoom Adaptive Speed Range: 0.05º〜100º/S )

TILT MOVEMENT
Vertical: +90º to -30º (Zoom Adaptive Speed Range: 0.05°〜50°/S)

PRESET POSITIONS
128 (Speed adjustable: Up to 150°/s)

PRESET SPEED
0-5 Level adjustable

ENVIRONMENTAL
Indoor

OPERATING TEMPERATURE
-10 – +50 (°C)

OPERATING HUMIDITY
≤80%

VIDEO INTERFACE

VIDEO OUTPUT
NDI /HDMI /SDI

VIDEO FORMATS
1080p 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25

AUDIO I/O
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)

CONTROL INTERFACE

IP PTZ CONTROL
NDI Control (auto configuring)

SERIAL PTZ CONTROL
2x RJ45: RS232/RS422/RS485

SERIAL CONTROL PROTOCOL
VISCA / Pelco D

POWER & DIMENSIONS

POWER INPUT
12v DCm, PoE+ (IEEE 802.3at)

DIMENSIONS
160x178x220mm

WEIGHT
2.0Kg

NETWORK

VIDEO COMPRESSION
Full NDI – i-frame high quality low latency NDI for production

NETWORK PROTOCOL
NDI – Discovery, configuration and control

WEB CONTROL INTERFACE
Full control via Web/Mobile UI including Scene presets
