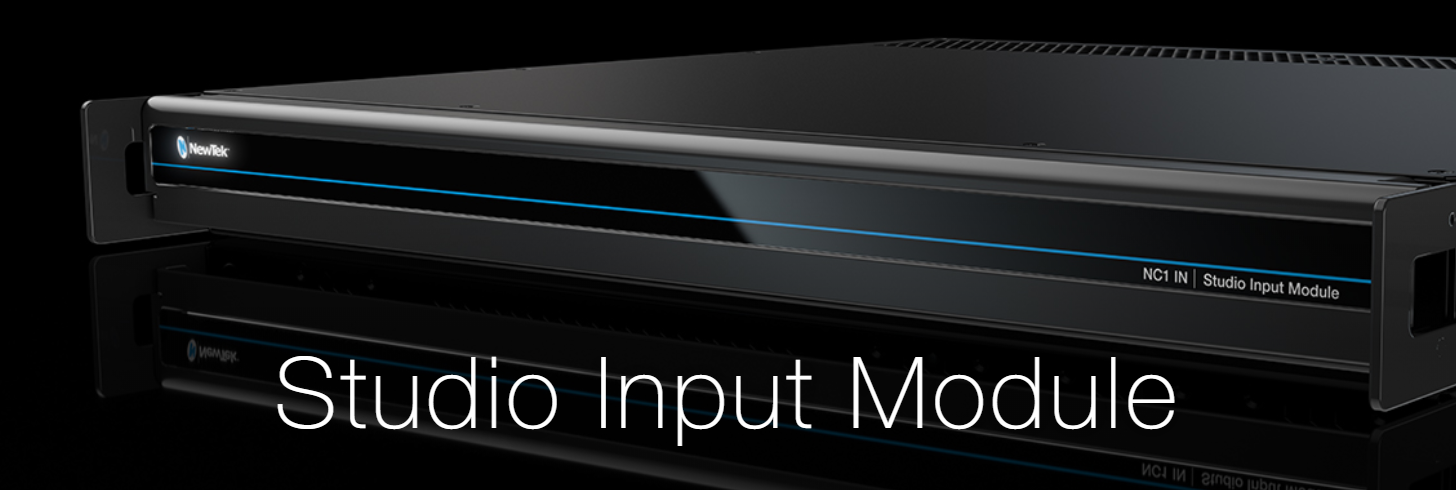

Inputs anywhere. More sources. More locations. More possibilities

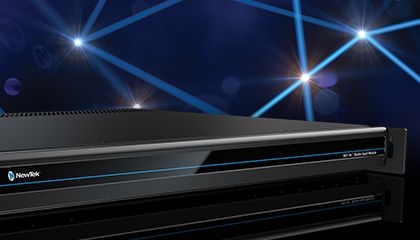

The Vizrt NC1 Studio Input Module is a flexible extension of your studio, facility, and pipeline, making it possible to add new input sources to your production from any location on your network—and entirely new dimensions to your workflow.

New workflow opportunities await.

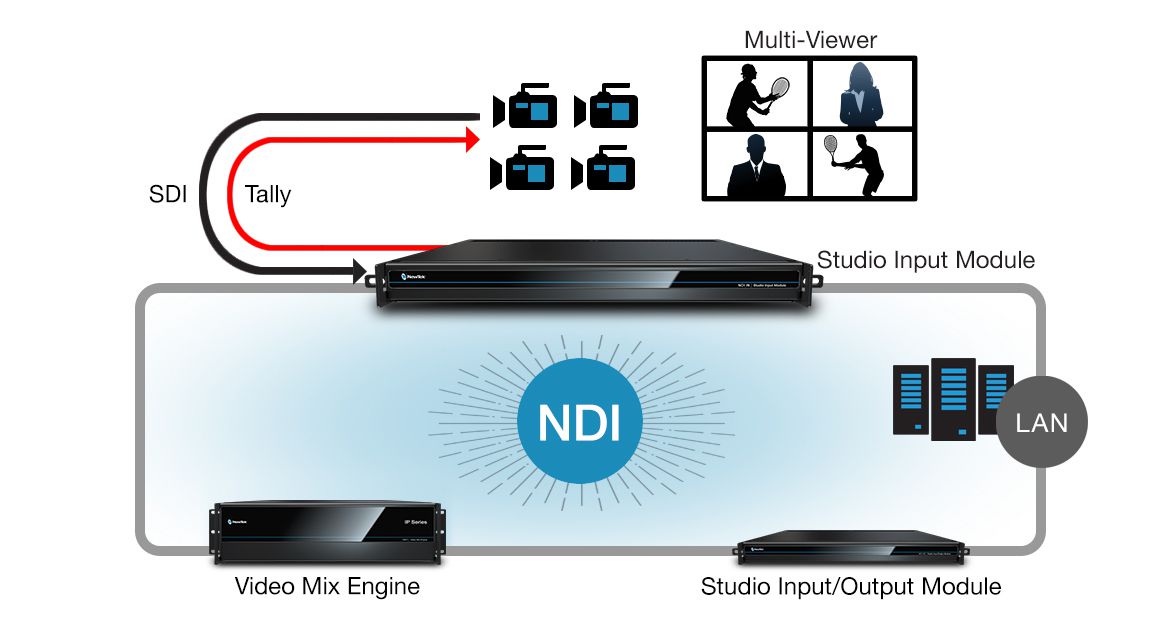

• Translate up to 4 SDI or IP video sources to NDI® and deliver to the network from any location
• Mix and match sources, including 3G-SDI and HD-SDI input devices, and RTMP, RTSP, and HTTP streams
• Integrate with compatible systems and devices across your network for switching, streaming, display, and delivery
• Stack modules in a single location or station in multiple locations to meet the demands of your productions

Seamless expansion.

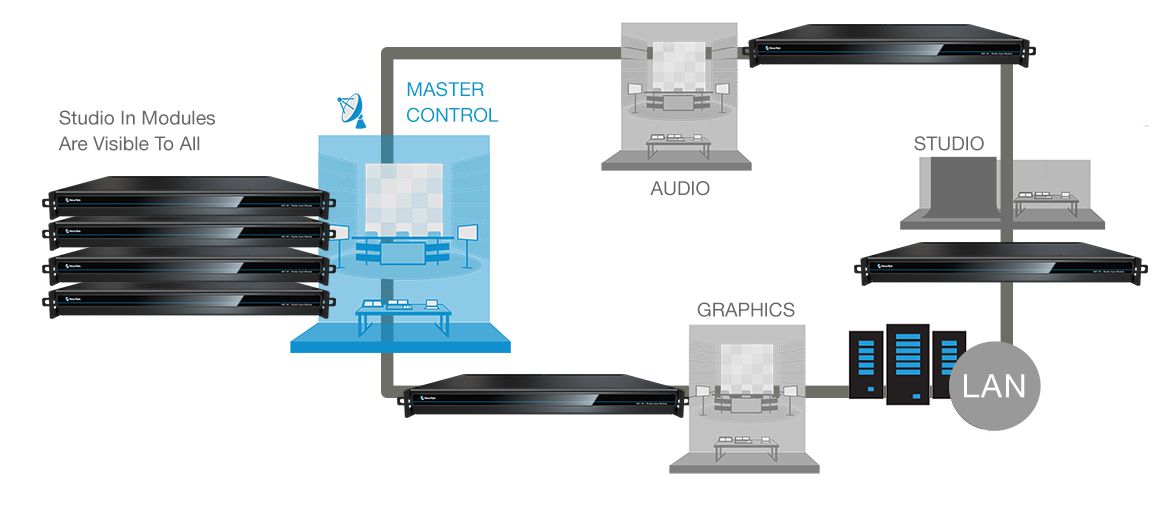

Plan, structure, and configure your installation according to your needs, including multi-system and multi-site workflows, with shared access to sources and stations. With each Studio Input Module integrated into your workflow, new SDI and IP sources are made available to every compatible system and device connected to your network.

Essential Studio Functionality

• Dedicated multiviewer with selectable workspace layouts, customizable viewports, and optional monitoring of return video channel via NDI
• Precision color calibration with independently configurable color correction tools and integrated waveform and vectorscope
• Native-resolution ISO recording of input sources to external or network attached storage for archive and post-production
• Responsive tally system for communicating on-air status of sources via on-screen visual indicators and external tally connections

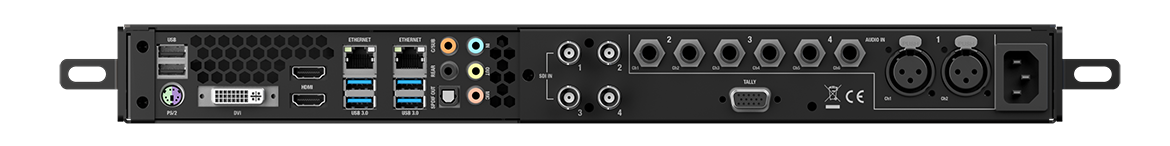

Local Video Input	Local Video Input4 x 3G/HD/SD-SDI inputs
Network Video Input	4 x NDI™ inputs
IP Video Input	Support for a range of video over IP input sources, including RTMP, RTSP, and HTTP streams
Network Video Output	4 x NDI outputs
Local Video Output	1 x DVI or HDMI user interface
Local Audio Input	4 x SDI embedded 1 x 2 Balanced XLR (Line) 3 x 2 Balanced 1/4” (Line)
Network Audio	Native support for network audio input and output via NDI Embedded audio supported for all NDI input and output video signals Integrated support1 for Dante™ networking protocol from Audinate®
Supported SDI Formats	1080p: 59.94, 50, 29.97, 25, 24, 23.976 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25, 24, 23.976 576i 50 480i 59.94
Recording	4 x recording channels via IsoCorder™ technology QuickTime® (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)2 Supports recording to external storage via USB 3.0 Supports shared storage integration and third-party partner solutions
Grab	Grab full resolution, deinterlaced still images from external video sources
Monitoring	Integrated interface display with configurable workspace and viewports
Signal Monitoring	Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing	Video: Floating Point, YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz
A/V Standards	3G-SDI video conforms to SMPTE 424M (Level A) HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155
Tally	Hardware tally via HD15 GPI connector or network tally via NDI
NIC	2 x 1 Gigabit NIC

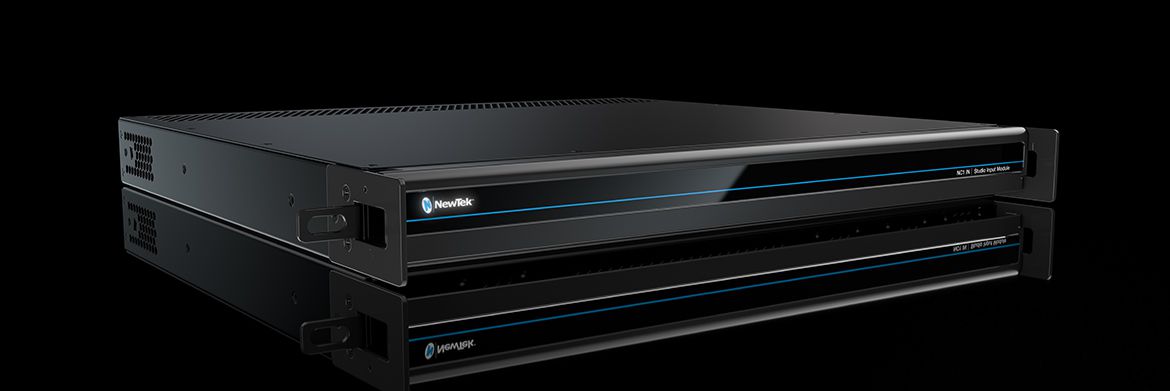

System Physical	1RU chassis with 180W PSU 19.0 x 1.75 x 16.75 in (48.3 x 4.5 x 42.5 cm) with rack ears attached 15 lbs (6.8 kg)

*Subject to change without notice.
