For today’s productions. And tomorrow’s changing demands.

VMC1 merges NewTek’s proven software-driven live production approach with power, efficiency, and flexibility – enabling you to create for all types of digital media programs and platforms.

Easily cross the lines between television, Internet, and mobile screens

• Send streams, clips, active recordings to social media, and Web-based destinations
• Package content to non-linear editing systems for fluid, file-based workflows
• Use instant replay for live events coverage and highlights production

Transform content into a wide array of formats, resolutions, aspect ratios, and frame rates

• Use non-standard aspect ratios, like 9:16 and square video
• Rotate and flip video on all inputs and outputs to conform to session aspect ratio
• Include non-standard video frame rates

Readily access all the inputs, outputs, and media assets from any location on the network

A software driven solution that is flexible and agile to use in multiple ways

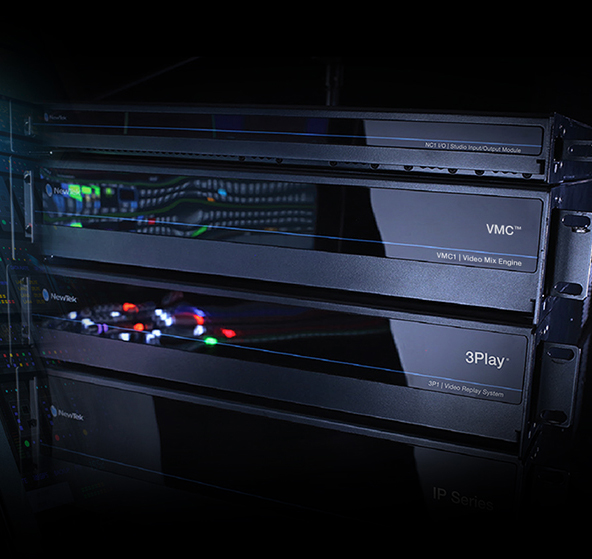

VMC1 Fully Integrated Solution

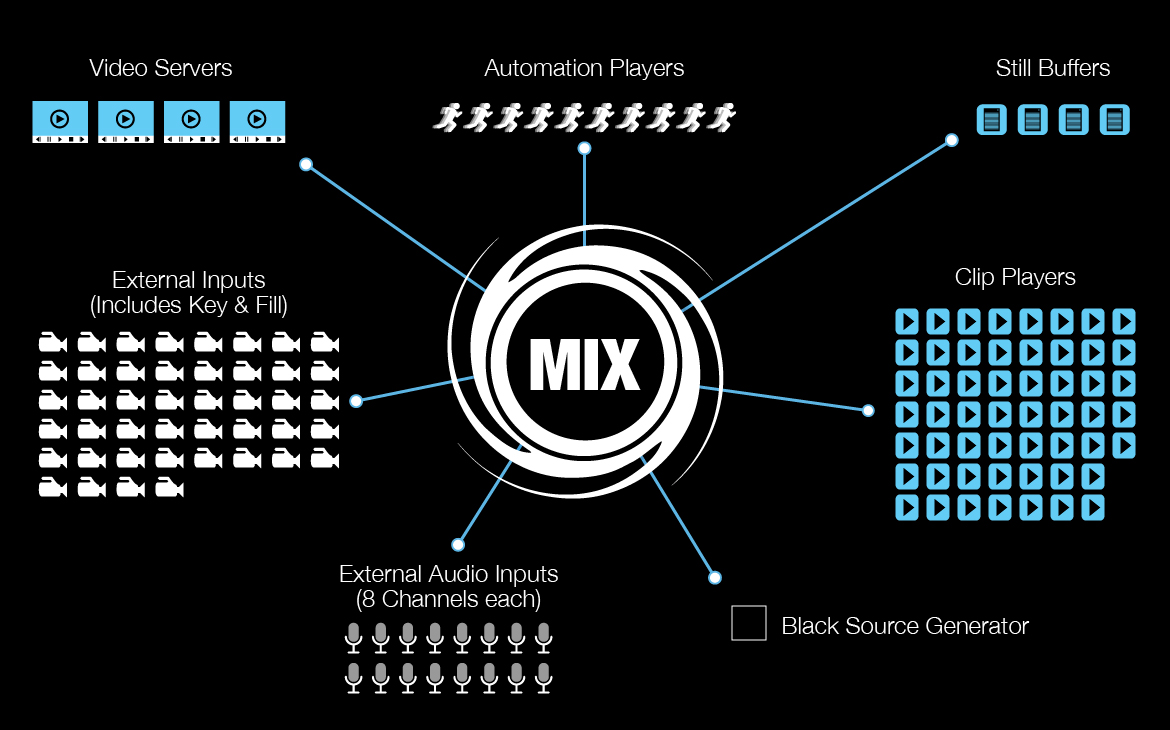

• 44 Inputs – NDI IP - UHD 60p
• 8 M/E
• Certified Chassis from NewTek
• Extended Warranty options
• SDI and audio I/O
• Use NC1 Studio Modules for expansion and SDI / SMPTE 2110

How and where you choose to create digital media productions can change over time with new requirements. The IP centric foundation of VMC1 make it easy to operate for distributed and remote production.

Expand Your Capabilities - Premium Functionality Without a Premium Price

All VMC Systems can be enhanced through a Premium Access subscription. Premium Access provides a range of the latest capabilities to keep you ahead of the competition.

• Live Story Creator
• LivePanel™
• Scalable Recording
• NDI® KVM
• LiveGraphics™
• Enhanced Video I/O

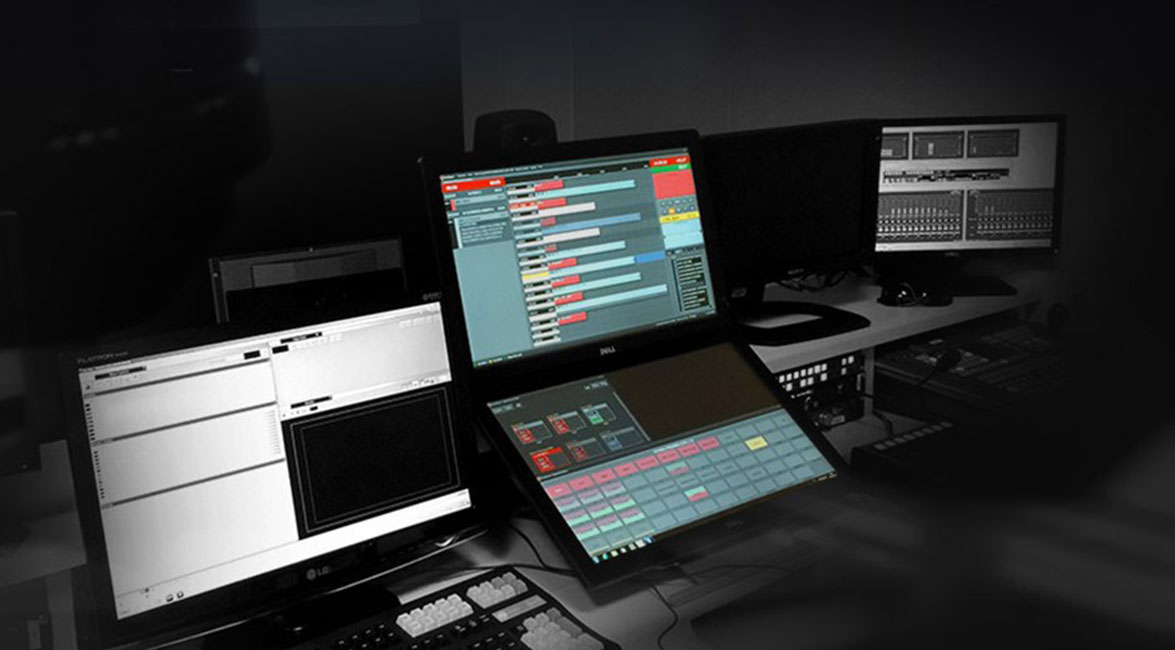

Automate with Viz Mosart™

Powerful studio automation is available for VMC through full integration with Viz Mosart from Vizrt. With VMC control, Viz Mosart only needs to interact with one system to achieve mixing, effect, keying and playback.

Vizrt Remote Storage

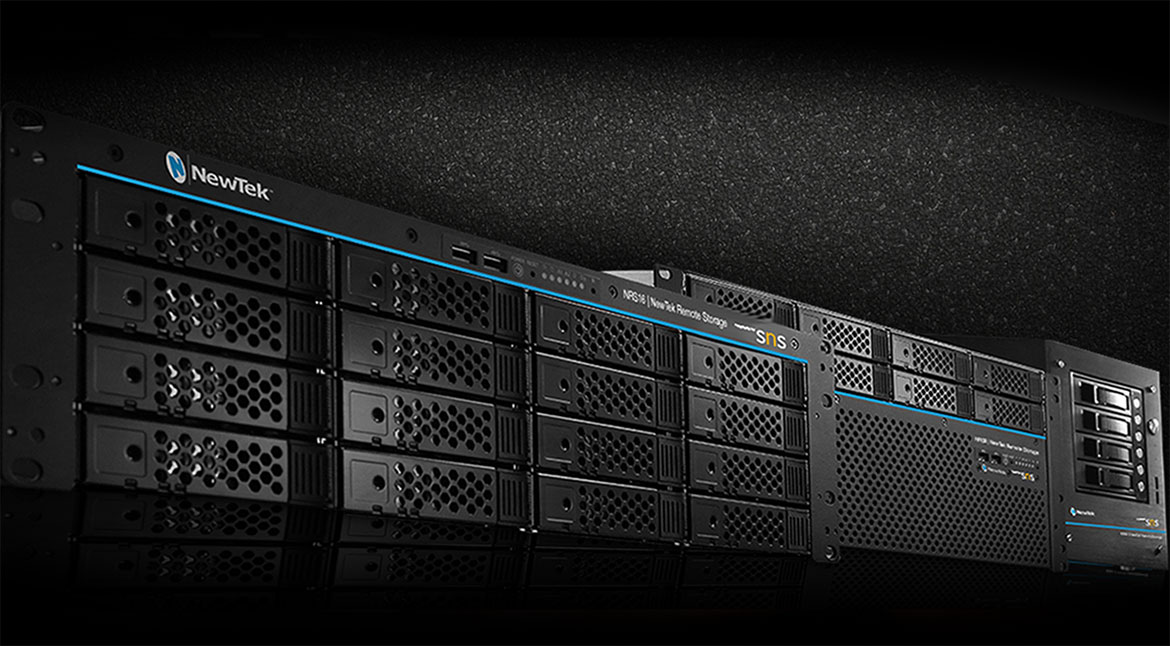

Complete your workflow with Vizrt Remote Storage – Powered by SNS. Powerful, scalable, shared storage solutions with optional chassis and network connectivity expansion, Vizrt Remote Storage systems are designed to meet the high-capacity, high-performance demands of today’s live production environments and are readily adaptable to your media needs.

Put Vizrt Professional Services on your side.

From systems and workflow engineering to operator training and technical support, NewTek’s industry expertise will help ensure your success from design to installation to production. With Vizrt Professional Services optimizing your purchase, you can invest in VMC with confidence.

Video Input	44 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 4K UHD at frame rates up to 60fps (2160p 59.94)
Network Video Input	44 x IP inputs via NDI®, resolution-independent, with support for key and fill
SDI Video Input1	4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates2 1080p: 59.94, 50, 29.97, 25, 24, 23.976 1080i: 59.94, 50 720p: 59.94, 29.97, 25 576i 50 480i 59.94
PTZ	Support for up to 44 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system
Skype TX	Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Video Output	Configurable for up to 4 independent video mix outputs, with simultaneous delivery via IP and SDI
Network Video Output	35 x IP outputs via NDI® (HD and SD sessions only) 4 x video mix outputs in resolutions up to 1080p at frame rates up to 60fps (1080p 59.94) 4 x direct IP source outputs via NDI® translation of local SDI inputs 4 x direct IP source outputs via NDI® translation of media players, with support for embedded alpha channel 15 x direct IP source outputs via NDI® translation of media buffers, with support for embedded alpha channel 8 x selectable IP outputs via internal NDI® matrix routers 1 x IP output via NDI® (4K UHD session) 1 x 4K UHD video mix output at up to 60 frames per second (2160p 59.94)
SDI Video Output	4 x 3G/HD/SD-SDI connections, optionally configurable for: 4 x independent 3G/HD/SD video mix outputs supporting standard NTSC and PAL formats, resolutions, and frame rates3 1 x 4K UHD video mix output via 3G-SDI quad-link grouping, supporting frame rates up to 60fps (2160p 59.94)
Stream Output	2 x resolution-independent streaming video outputs, independently configurable, with simultaneous stream archive
Multiviewer Output	4 x multiviewer outputs supporting standard display resolutions, using any combination of available connections 1 x DVI 1 x HDMI 3 x DisplayPort
Mix/Effect Buses (M/E)	8 x M/E buses supporting video re-entry 1 x Mix/Effect channel per bus with support for up to 4 sources 4 x KEY layers per bus 9 x memory slots per bus 1 x PREVIZ configuration and preview bus
DSK Channels	4 x DSK channels
Media	5 x media players 4 x DDR 1 x Sound 15 x media buffers 10 x animation buffers 5 x graphic buffers 55 x clip players (available for use as transitions or media depending on function)
Keyers	Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses 44 x input keyers 4 x media player keyers 8 x M/E keyers 1 x PREVIZ keyer 15 x buffer keyers
COMPs	Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences 16 x configurable COMP presets per bus
Virtual Sets	Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink	Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros	Record, store, edit and automate commands and user-configured operation sequences Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions Supports control via web-based interface
Recording	12 x configurable video recording channels via IsoCorder™ technology 4 x QuickTime® archival video recorders (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)4 2 x H.264 distribution video recorders (multiple profiles) 1 x MP3 audio recorder
Storage	2 x 3TB internal drive Capacity varies by format, resolution and file specification Supports recording to external storage via USB 3.0 and eSATA Supports shared storage integration and third-party partner solutions
Grab	Grab full resolution, deinterlaced still images from external video sources and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixer	Integrated multi-channel audio mixer with support for 8-channel audio, DSPs and 4x8x8 audio input routing
Local Audio Input	4 x SDI embedded 1 x Balanced XLR stereo pair (Line) 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output	4 x SDI Embedded 1 x Balanced XLR stereo pair 1 x Balanced 1/4” stereo pair 1 x Stereo 1/4" (phones)
Network Audio	Native support for network audio input and output via NDI® Embedded audio supported for all NDI® input and output video signals Integrated support5 for Dante™ networking protocol from Audinate® Support for AES67 protocol via compatible WDM audio drivers6
Supported Media File Formats	Import, store, and play back multimedia files, with optional transcoding, including: Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more
Monitoring	Support for up to 4 multiviewer displays with configurable workspaces and viewports
Signal Monitoring	Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing	Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz
Throughput Latency	~1.0-1.5 frames
A/V Standards	4K UHD video conforms to SMPTE 2036 (UHDTV1 using Square Division Quad Split) 3G-SDI video conforms to SMPTE 424M (Level A) HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155
Tally	Support for hardware tally via HD15 GPI connector, network tally via NDI®, and Blackmagic Design® SDI tally standard
Genlock	Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
GPI	Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI	Support for standard MIDI protocol enabling third-party device control
System Drive	250GB SSD
System Physical	3RU chassis with 500W redundant PSU and multi-tiered hardware and software fail-safe 19.0 x 5.25 x 19.57 in (48.3 x 13.34 x 49.7 cm) with rack ears attached 34 lbs (15 kg)

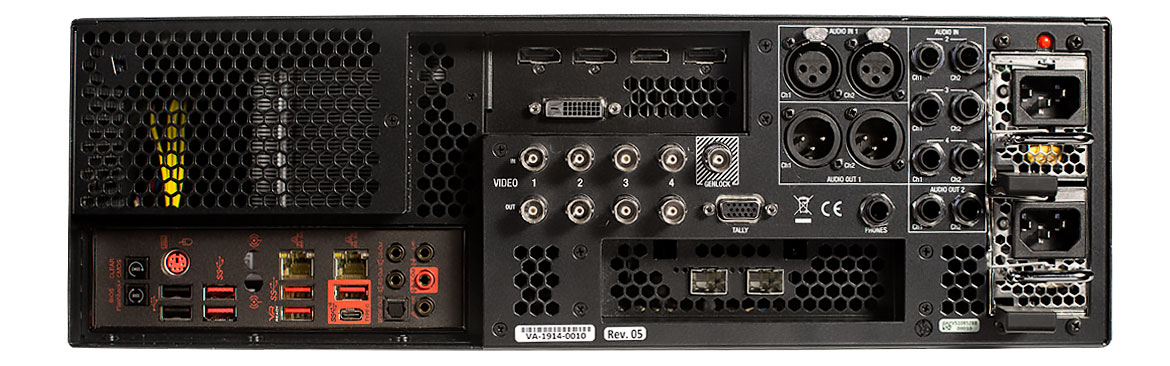

Vizrt VMC1 Back Panel
