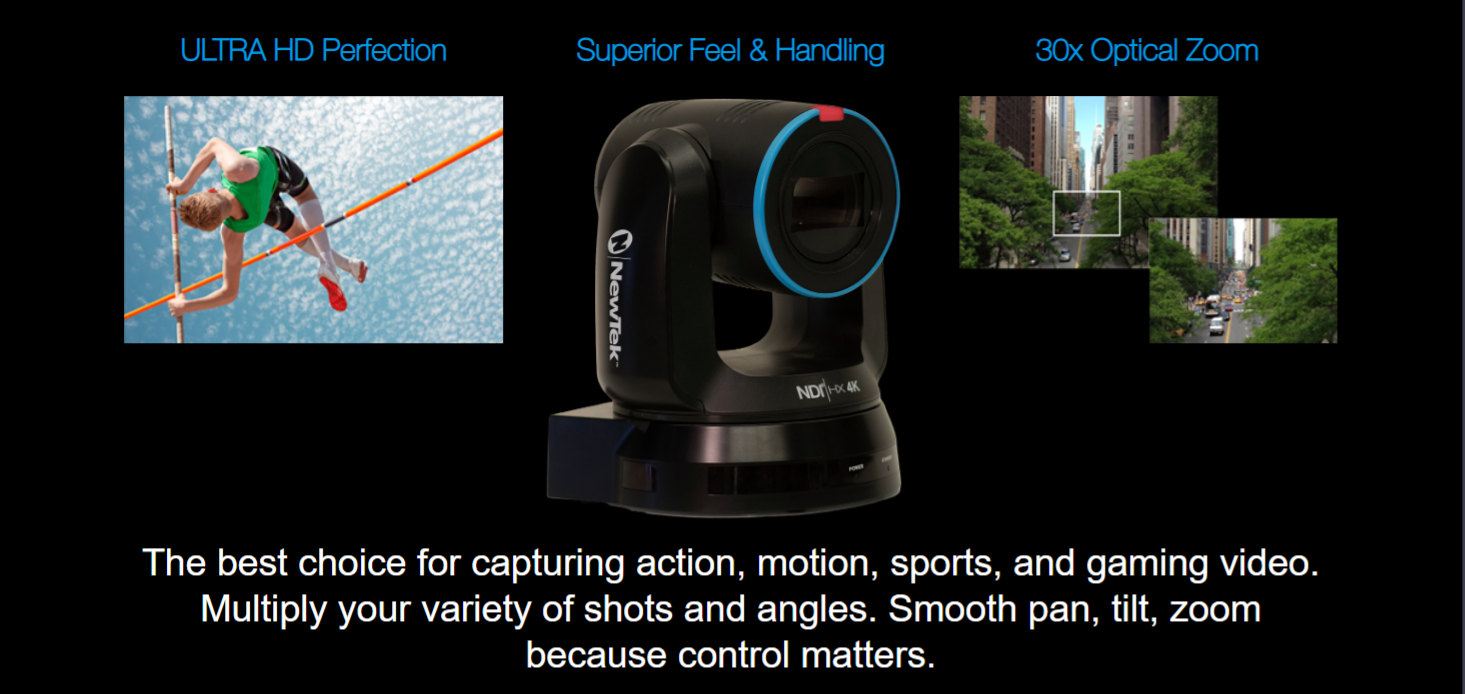

Introducing Vizrt PTZUHD

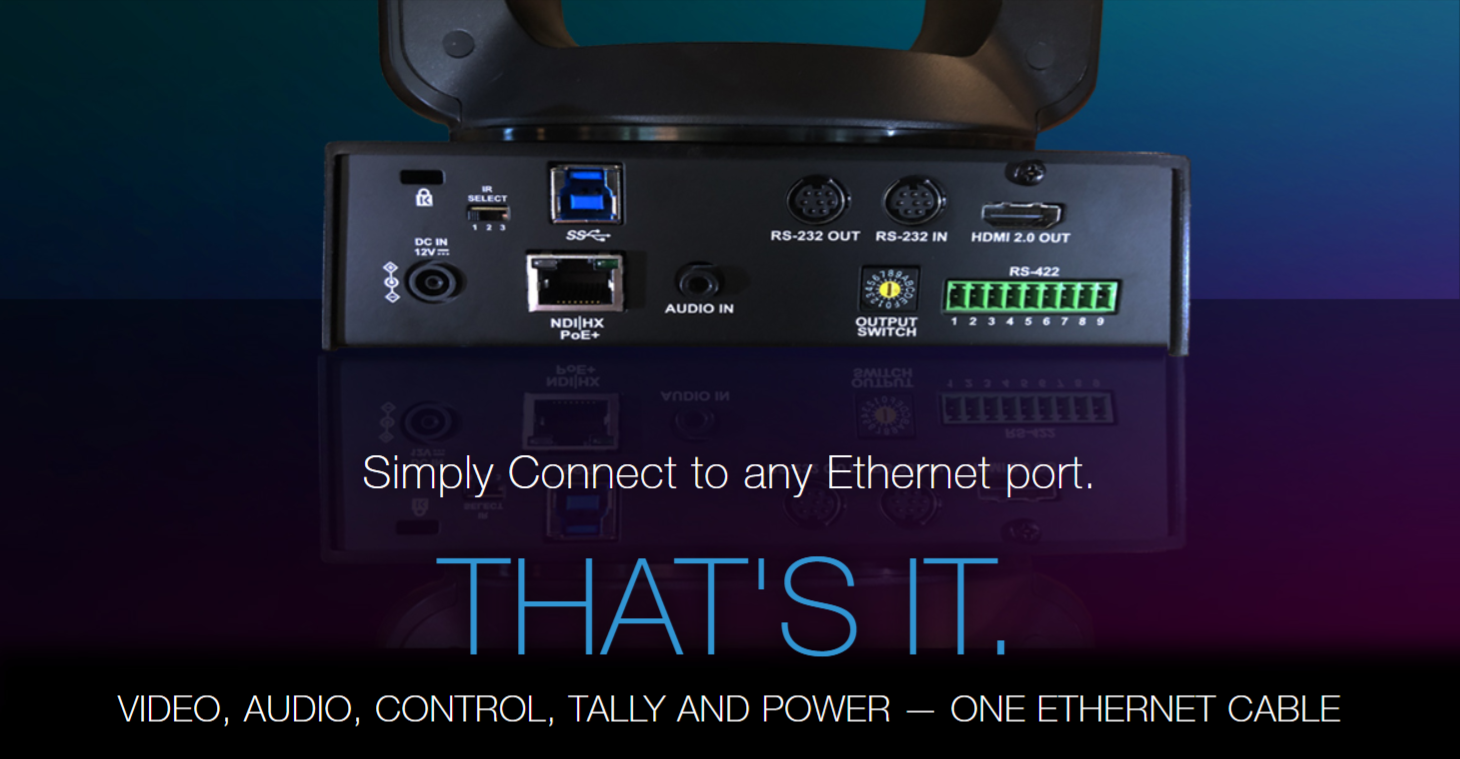

Meet the world’s first NDI®|HX PTZ camera with Ultra High Definition (UHD) video. A precision engineered camera offering smooth PTZ action, a state-of-the-art Sony sensor and video, audio, control, tally and power with a single cable.

With NDI PTZUHD just plug in and deliver incredible live video across a standard Ethernet network, the ultimate way for you to deliver 4Kp60 video into any IP environment.

Step into the world of NDI powered UHD video – today.

Vizrt NDI® PTZ Camera Features

Imagine the possibilities of a camera that can serve as a live video input for any NDI®-compatible hardware or software—from anywhere on your network. Introducing the Vizrt NDI® PTZ Camera, the faster, easier, and better way to acquire live video.

Multicast Mode

Optionally allow multiple destinations to receive video from your NDI® PTZ Camera without individual point-to-point connections to conserve network bandwidth.

NDI® Output

Acquire and deliver video to the network in full HD, with NDI® output via NDI®|HX and native support for resolutions up to 1080p at 60 frames per second.

Power over Ethernet

Streamline installation and reduce cabling complexity, optionally eliminating the need for a separate power supply connection with support for Power over Ethernet via POE+ (802.3at).

Pan-Tilt-Zoom

Perform real-time pan, tilt, and zoom camera movements with motor-driven PTZ camera control and configurable preset positions.

3G-SDI and HDMI Output

Optionally acquire and deliver video into conventional workflows with support for 3G-SDI and HDMI hardware output.

Program and Preview Tally

Receive tally notification from compatible NDI® devices via physical LEDs when video output from your NDI® PTZ Camera is visible on Program and/or Preview.

Remote Control & Monitoring

Operate camera controls, monitor video, manage login credentials, and configure audio, video, and network settings from any compatible networked device using the Web-based user interface or Vizrt NDI® Studio Monitor.

Remote Recording

Capture live NDI® PTZ Camera video remotely from any compatible computer or device using Vizrt NDI® Studio Monitor.

Video Bandwidth

Select from High, Medium, and Low bandwidth output to accommodate your specific network configuration and traffic.

Video Settings

Manage NDI® PTZ Camera options to include exposure, focus, iris, shutter speed, white balance, wide dynamic range, and more with configurable video settings.

Audio

Present high-quality audio, with support for mic and line level audio input, and adjustable volume control.

NDI® Virtual Input

Designate your NDI® PTZ Camera as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more, via the included software driver.

Network Identification

Easily identify your NDI® PTZ Camera on the network with the ability to apply custom device and channel names.

Free Firmware Updates

Download and install free firmware updates to ensure your NDI® PTZ Camera is equipped with the latest features, capabilities, and performance enhancements.
*Specifications subject to change without notice.

	PTZUHD	PTZ1
Video Output	NDI®|HX | HDMI 2.0	NDI®|HX | HDMI 2.0 | 3G-SDI
Video Formats	2160p: 59.94, 50, 29.97, 25 1080p: 59.94, 50, 29.97, 25 720p: 59.94, 50	1080p: 60, 59.94, 50, 30, 29.97, 25 1080i: 59.94, 50 720p: 60, 59.94, 50, 25
Lens	Zoom: 30x Optical	Zoom: 20x Optical / 12x Digital Focal Length: 4.7mm to 94mm Aperture: F1.6 to F3.5
Sensor	Sony 1/1.8" CMOS	1/2.8” CMOS
Shutter Speed	1/1 to 1/10,000 sec	1/1 to 1/10,000 sec
Panning Angle	-170° to +170°	-170° to +170°
Tilting Angle	-30° to +90°	-30° to +90°
Audio Input	3.5mm stereo audio input (line)	3.5mm stereo audio input (line)
Audio Output	NDI®	NDI®
Tally	Tally support via NDI®	Tally support via NDI®
User Interface	Web based or Vizrt NDI® Studio Monitor applications for remote configuration, control, and monitoring	Web based or Vizrt NDI® Studio Monitor applications for remote configuration, control, and monitoring
Control	NDI®	NDI®
Networking	1 Gigabit Ethernet	10/100 M Ethernet
Power	Power over Ethernet (IEEE 802.3bt) or fixed power supply	Power over Ethernet via POE+ (802.3at) or fixed power supply
Physical		Auto, Manual
White Balance	Dimensions: 7.3 x 8.9 x 6.7 in (187 x 226 x 170 mm) Weight: 4.4 lbs (2.0 kg)	Dimensions: 6.9 x 7.2 x 7.2 in (175 x 183 x 183 mm) Weight: 4.0 lbs (1.8 kg)
