Connect technologies, translate video, expand any workflow.

Using versatile functionality ranging from NDI, SDI to IP video conversion by I/O channel expansion, to 4K UHD connectivity and IP interoperability, Vizrt NC2 Studio I/O Modules offer the flexibility to outfit studios, facilities, or infrastructures not only for their current production needs but also those of the future.

More Than Conversion

NC2 Studio I/O Module offers support for 12G-SDI and 10 Gigabit Ethernet connectivity; it seamlessly connects multiple video and audio formats including NDI®, SDI, and other IP formats. This solution is far more than conversion; offering SDI signal capture, media file playback, selectable multi-viewers, and professional video scopes.

Adapt. Grow. Evolve.

Outfit your studio, facility, or pipeline according to your production needs now—and be ready as they change in the future. With versatile functionality ranging from 4K UHD 60p connectivity and IP interoperability, Vizrt Connect solutions are designed to help you build the workflow you need with the quality you demand as easily and efficiently as possible.

Why NC2 Studio I/O?

NC2 Studio I/O gives producers and broadcasters tremendous power, with a unified interface and in a single, rack-mounted unit. Greater I/O flexibility, support for 12G-SDI devices, up to 8 channels of SDI recording, and 10 Gigabit Ethernet connectivity is not all – Vizrt products are created with NDI® at their very core. NC2 Studio I/O perfectly integrates sources of all types to the flexibility of IP production and supports all the latest and upcoming features of the revolutionary NDI 5.

Simple, scalable and perfect for even the most complex studio workflows

NewTek’s NC2 Studio I/O Module is the ultimate solution for connecting technologies, translating video, and expanding any workflow.

• Simultaneously record up to 8 SDI inputs and combine with NewTek's Network Remote Storage
• 10 Gigabit Ethernet connectivity for high-speed networking environments
• Adaptable audio workflows through connection with USB and network-based audio drivers*
• Greater I/O flexibility with support for 12G-SDI devices
• Integrated NDI® KVM technology enabling remote module access and control
• Supports all the very latest NDI 5 Features

Essential Studio Functionality

Be confident in your presentation with local monitoring and management tools to include a dedicated multiviewer with selectable workspace layouts and customizable viewports, integrated waveform and vectorscope displays, and precision color correction capabilities.

Video In	NDI®2, SRT, SDI, RTMP, RTSP
Video Out	NDI®, SDI
IP I/O	Up to 8x
SDI I/O	Up to 8x via HD-BNC
4K UHD I/O SDI I/O	Up to 2x via 12G-SDI, 6G-SDI, or quad-link 3G-SDI
Media Playback Channels	Up to 8x
Recording Channels	Up to 8x SDI Inputs Only
Supported Video Formats	2160p: 59.94, 50, 29.97, 25, 24, 23.976 1080p: 59.94, 50, 29.97, 25, 24, 23.976 1080i: 59.94, 50 720p: 59.94, 29.97, 25, 24, 23.976 576i: 50 480i: 59.94 1080p: 60, 59.94, 50 1080p/PsF: 30, 29.97, 25, 24, 23.98 1080i: 30, 29.97, 25 720p: 60, 59.94, 50 576i: 25 480i: 29.97
Supported Media Formats	Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more
Audio I/O	Up to 8x SDI embedded
Audio Networking	Native support for network audio input and output via NDI® Embedded SDI audio supported for all NDI® input and output video signals Support1 for Dante™, AES67, and ASIO protocols via compatible audio drivers
Timecode	LTC and VITC
Signal Monitoring	Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
A/V Standards	12G-SDI (ST 2082-10) 6G-SDI (ST 2081-10) 3G-SDI Level A (ST 425-1 Level A Mapping), Quad Link 3G-SDI (ST 425-5), HD-SDI (ST 292), SD-SDI (ST 259)
Video Processing	Floating Point, YCbCr +A 4:4:4:4
Audio Processing	Floating Point, 96 kHz
Genlock	Reference input supporting SD (Bi-level), HD (Tri-level), or network (NDI) supported
Multiviewer	1x USB Type C
NIC	1 x 10 Gigabit NIC (10GBASE-T over RJ45) 1 x 1 Gigabit NIC (RJ45)
System Physical	H 1.88in (4.28cm) x W18.97in (48.2cm) x D22.73in (57.75cm) / 23.19in (58.91cm) with Bezel - Racking Kit Included 27.38lb / 12.42kg

Studio I/O Module Features

From connecting established and emerging technologies, to expanding the quantity and type of available inputs and outputs, to linking locations across your network, Vizrt NC2 Studio I/O Modules are powerful, versatile, and fully turnkey systems made for IP video production workflows.

Dynamic I/O Configuration

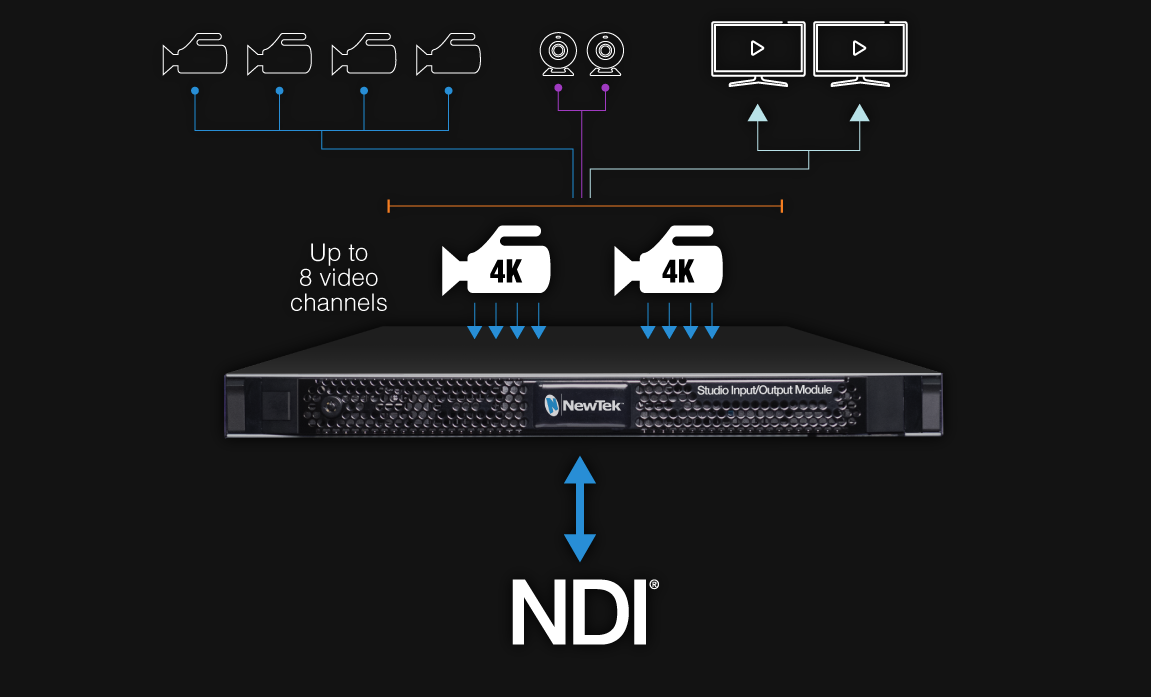

System can be configured as 8 x 3G-SDI , 2 x 12G-SDI with 4 x 3G-SDI, or a wide range between. Independently configure each channel for resolutions up to 2160p at 60 frames per second

8 Channel Recording

Simultaneously record up to 8 SDI inputs; combine with NewTek’s Network Remote Storage for the optimal power and adaptability

Built for NDI®

Supporting 10Gb Ethernet, the NC 2 Studio I/O is ideally placed for use in high-speed networking environments such as broadcast workflows, and is perfect for NDI traffic. Built to work with NDI 5, NC 2 I/O supports all the latest and upcoming features

Adapts to any workflow

NC 2 I/O is a powerful, adaptable solution offering IP flexibility while making use of existing SDI equipment and infrastructure. Audio integration provides adaptable workflows through connection with USB and network-based audio drivers (DANTE™/AES67/ASIO/WDM).1 Management and control of each channel can be harnessed locally, through integrated NDI KVM technology, or a web-based API.

Color Correction

Independently adjust the color characteristics of each channel, manually configuring brightness, contrast, hue, saturation, white balance, and more with integrated proc amp controls, or optionally enable automatic color matching between channel

Configurable A/V Sources

Independently configure the video and audio for each channel, selecting from any source accessible to your Studio I/O Module.

Multi-Format Processing

Accept and deliver video in any combination of compatible formats, with resolution and frame rate configurable per channel.

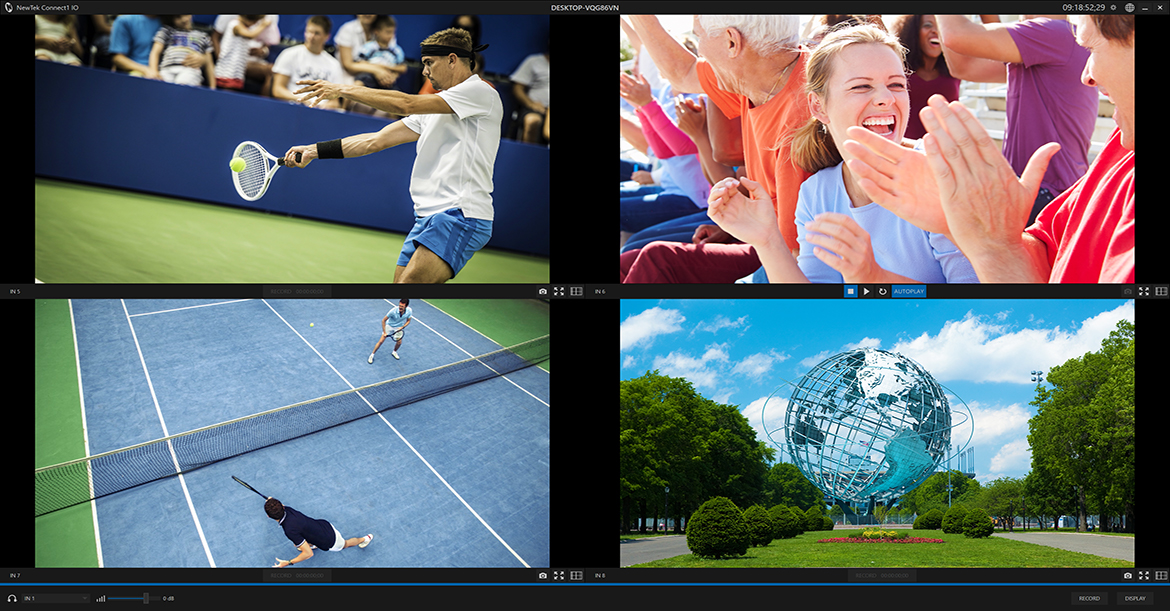

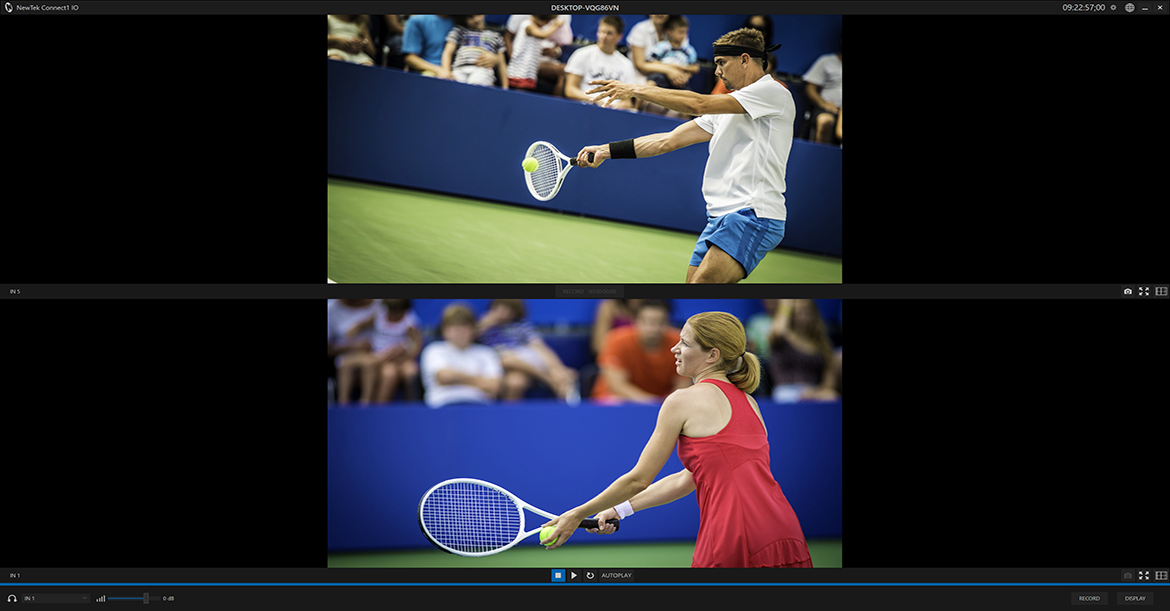

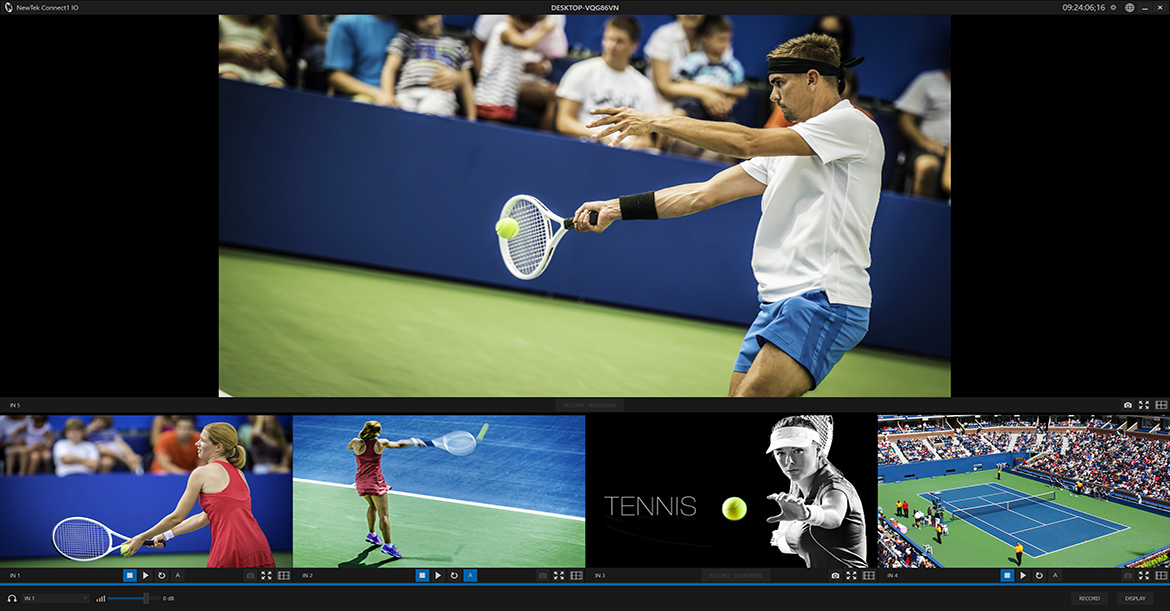

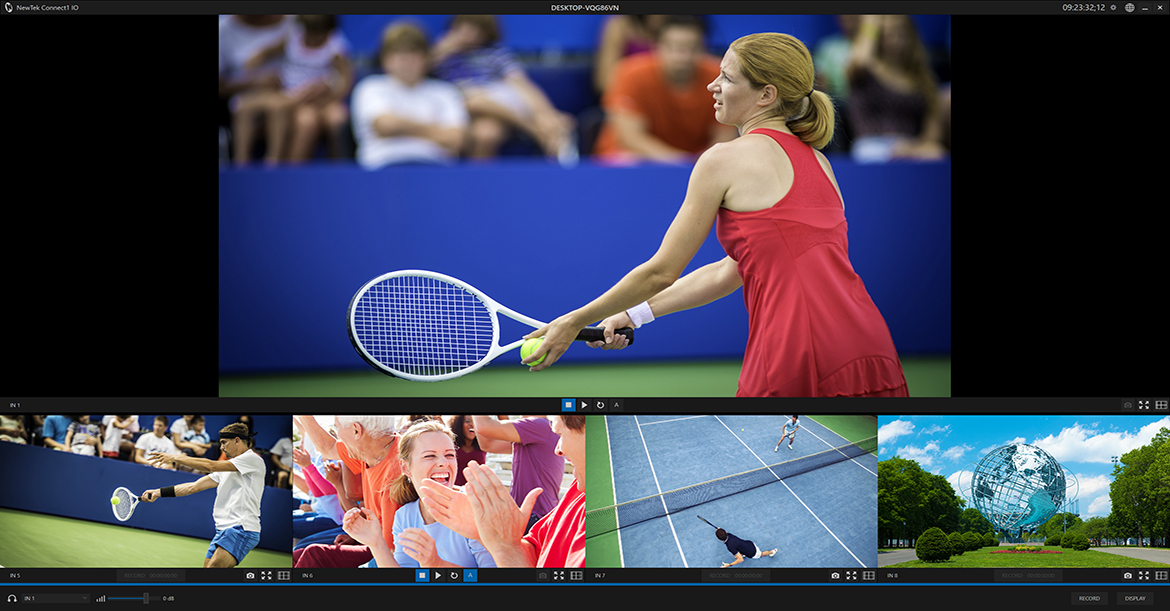

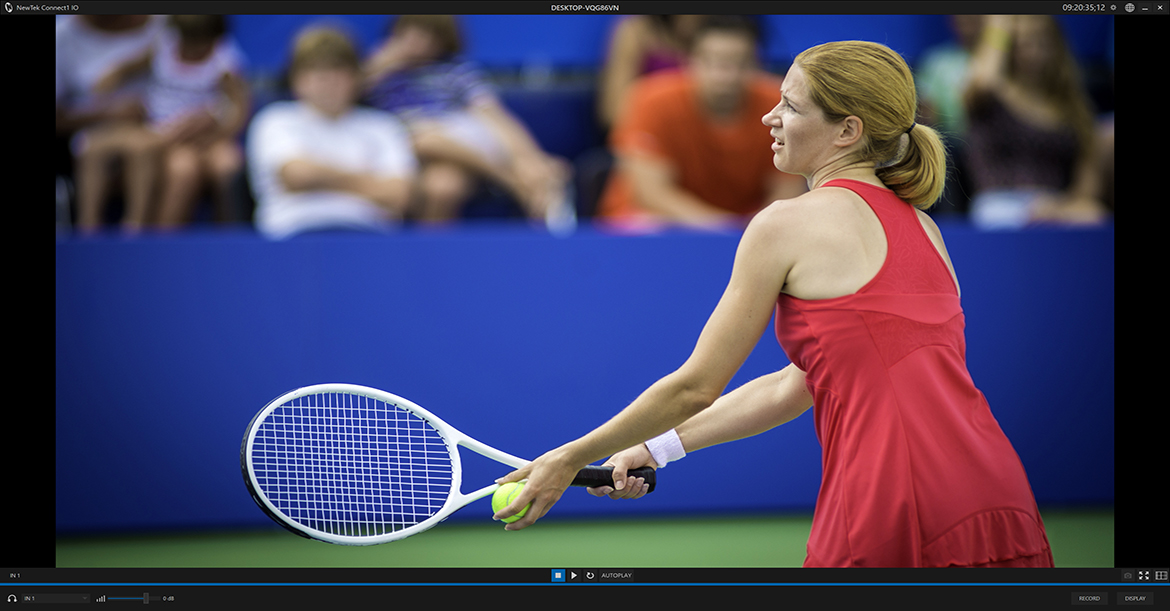

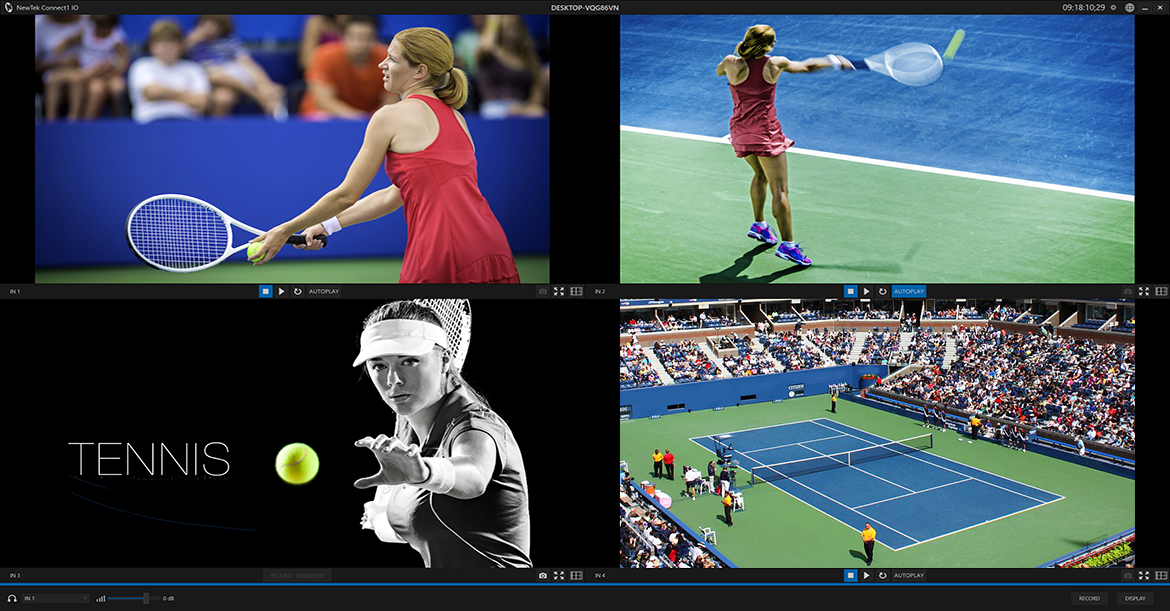

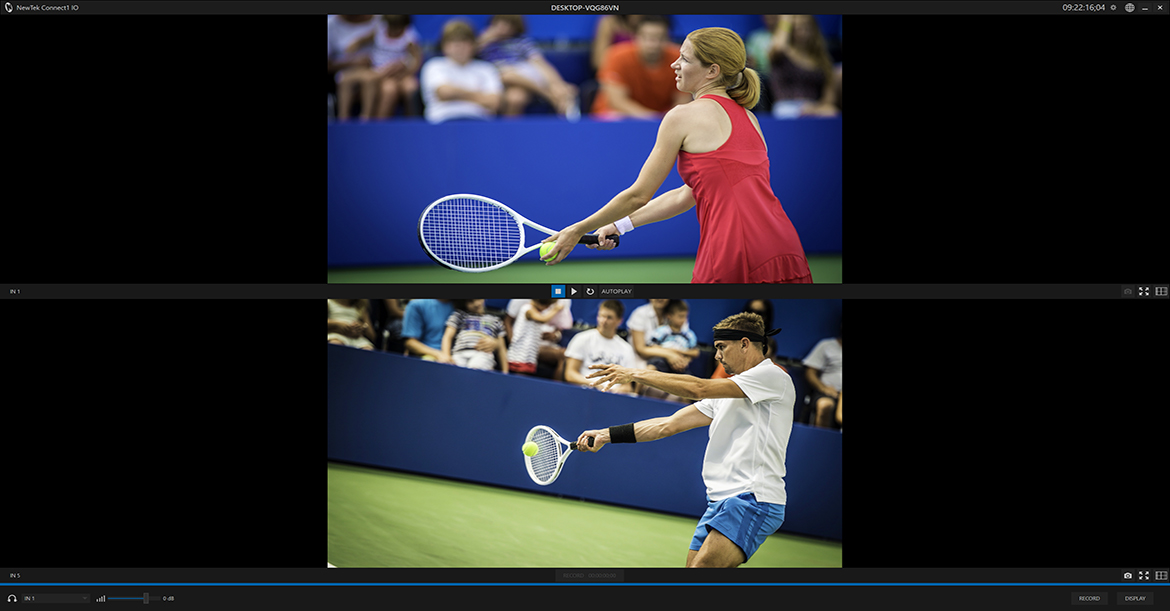

Multiviewer

Monitor a single source or multiple live signals with selectable workspace layouts and customizable viewports.

NDI® KVM

Access the user interface and control your Studio I/O Module remotely from any compatible computer, device, or touchscreen connected to the same network.

Professional Audio

Present high-quality sound, with flexible audio integration to include comprehensive support* for Dante™, AES67, and ASIO sound devices*

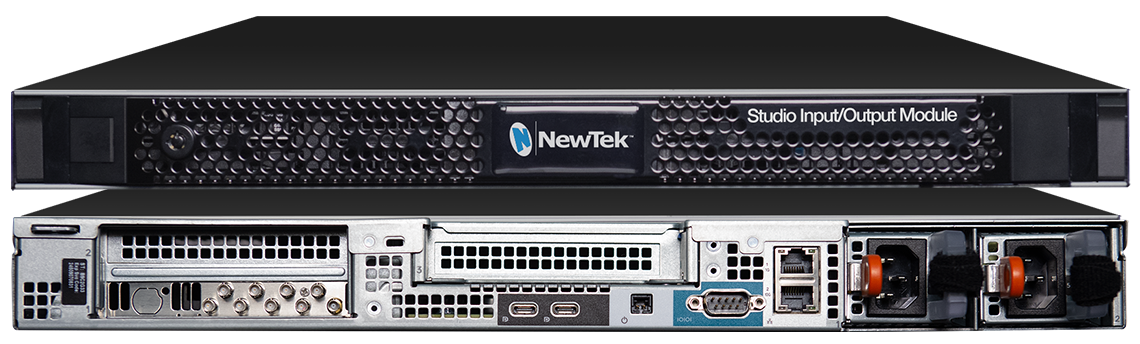

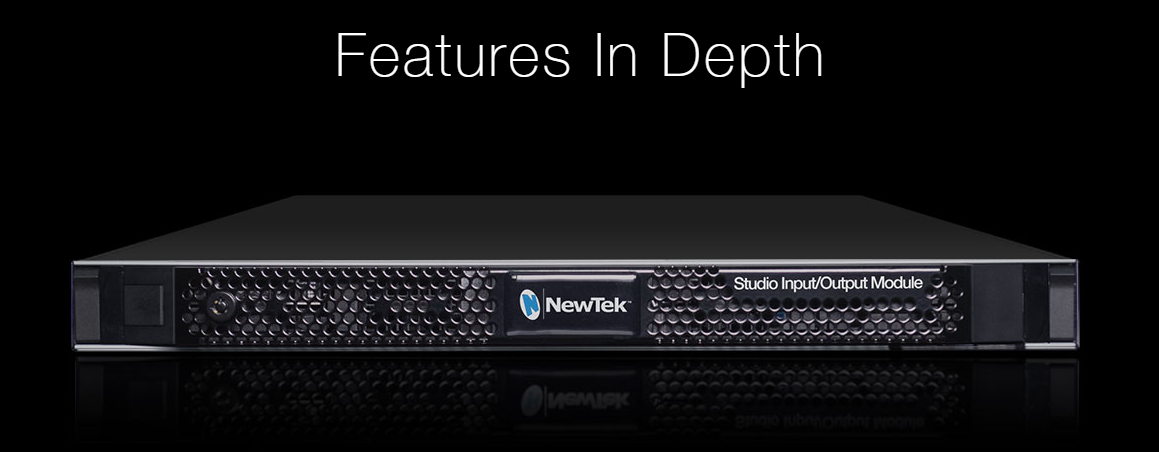

Rackmount Chassis

Industry-standard 1RU rackmount chassis integrates into any professional production environment, setup, or workflow

Redundant Power

Safeguard module availability with 550W redundant power supplies

Video Servers

Optionally configure each channel for stored media playback, with extensive file format support, on-screen transport controls, and Autoplay setting.

Waveform and Vectorscope

Calibrate and monitor video signals for broadcast compliance and viewing quality with built-in waveform and vectorscope displays

Grab

Grab full-resolution still images of channel video for real-time use, post-production activities, or archive.

Hardware Destination

Direct the video and audio output from the designated channel to a specific SDI connector on the module backplane, or other supported devices where applicable

Network Source Support

Optionally configure other network sources for input with support for real-time conversion and transmission of common IP video stream formats to include SRT, RTMP, RTSP, and HTTP.

Recording

Capture native-resolution video from one, multiple, or all channels to network attached storag

Remote Access

Monitor live signals and control your Studio I/O Module remotely from the browser of any networked device, including iOS and Android mobile devices, with a system-specific webpage.
