Deliver live streaming video directly to viewers—with or without the Internet.

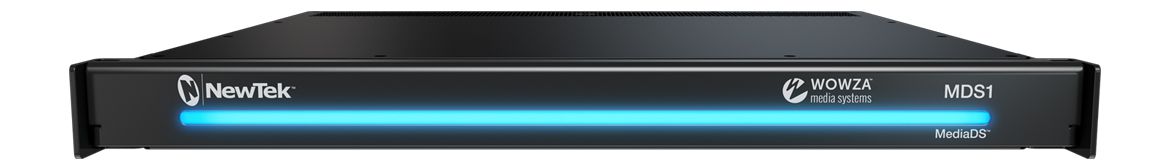

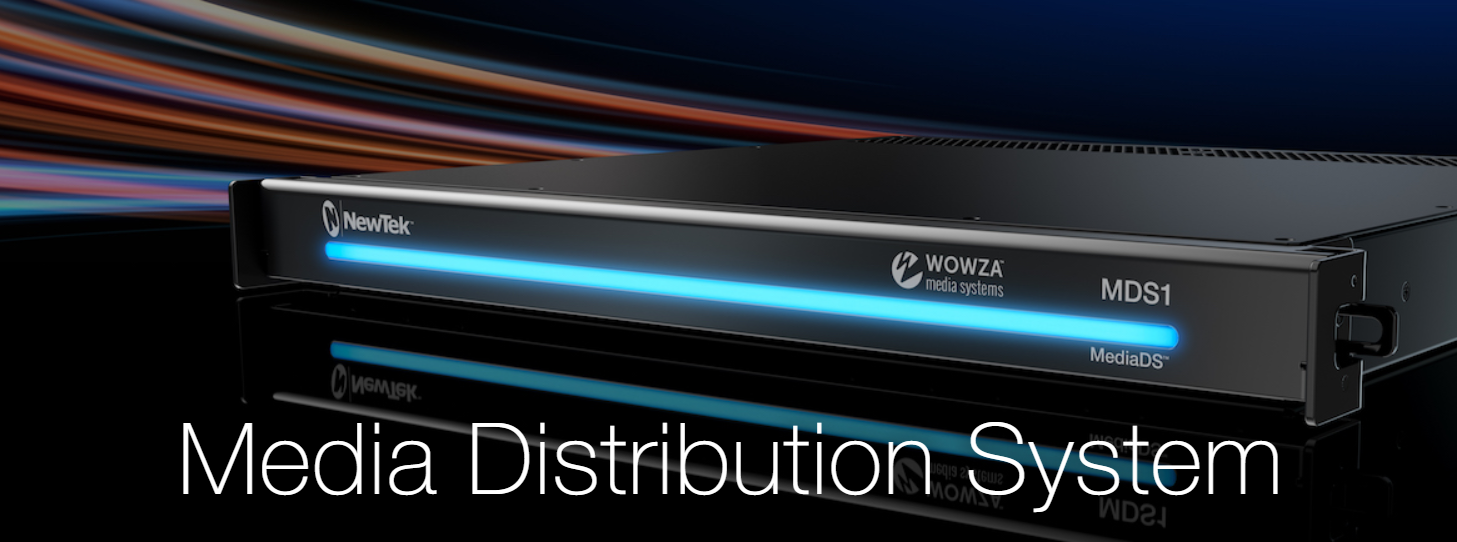

The MediaDS is a revolutionary real-time media encoding and live streaming video delivery platform—the first integrated production system establishing a direct link between the producers who create the content and the viewers that consume it.
Launch your own multi-channel content networks.

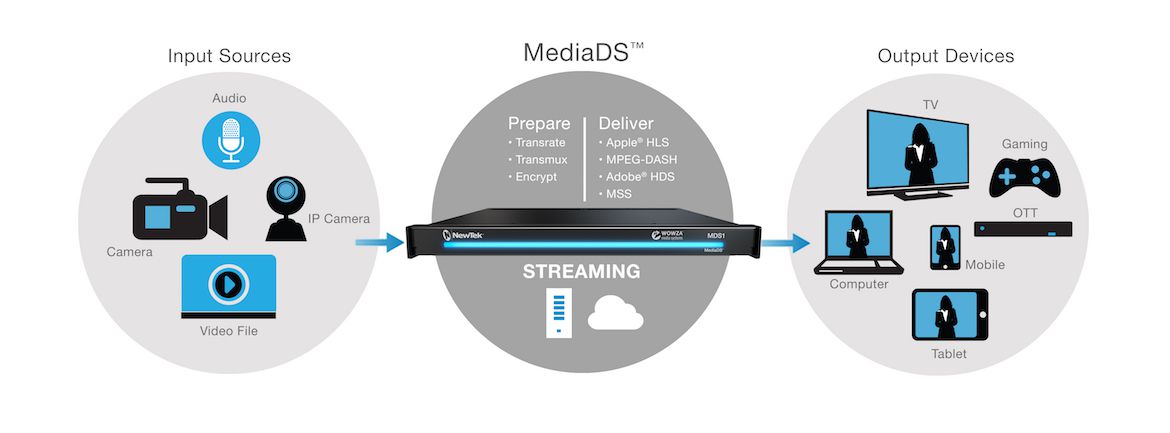

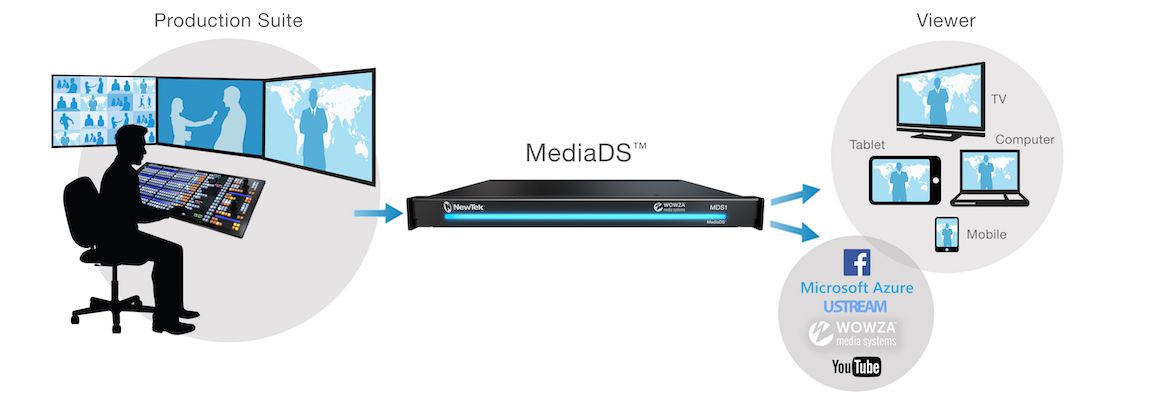

The bridge between video production and audience consumption.
A fully integrated hardware and software solution merging NewTek’s industry-leading live production technology with powerful Wowza streaming software, the MediaDS makes it possible to deliver content from any production—or production system—directly to viewers. No additional services required.
Effectively democratizing video encoding and streaming for producers of live and linear programming, the MediaDS introduces a myriad of new opportunities for distribution, expansion and content monetization.
The MediaDS is fully equipped for existing and emerging SDI, IP, and hybrid workflows, with flawless, multi-format processing allowing supported source types to be used interchangeably on each channel. Streaming signals are acquired through direct, physical input using 3G/HD/SD-SDI hardware connections, over IP via NDI, NewTek’s innovative Network Device Interface technology, and from other sources, including TCP/IP, webcams, and USB capture devices.
Freely flex your organization’s streaming video and media communications from local audiences to worldwide populations. With support for delivery to viewers on the local network through Wowza streaming software, in addition to all common streaming services, websites and CDNs, including Facebook Live, Microsoft Azure, Ustream, Wowza Streaming Cloud, YouTube Live, and more, your organization can reach all of your intended audiences, wherever they watch.
Signature Online Experience
Extend your brand and exposure beyond your actual video content. Each streaming channel includes its own independently customizable web page for audience viewing, with support for HTML and CSS editing to ensure that the on-screen experience adheres to your organization’s brand guidelines. Embed codes are also available to insert the hosted media player into existing webpages to complement your current web presence.

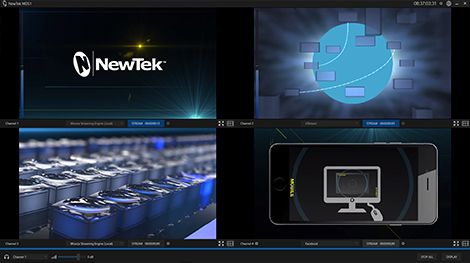

Introduce another layer of quality control into your signal flow, ensuring the optimal audio-visual experience for your viewing audience right from the system. With support for dedicated multiviewer monitoring, the local operator can observe all video streams in real time or focus on a specific channel full-screen, and manage image and sound quality with integrated waveform and vectorscope displays, independent color correction tools, and multi-channel audio level control available for every stream.
From systems and workflow engineering, to operator training and technical support, NewTek’s industry expertise will help ensure your success from design to installation to production. With Vizrt Professional Services optimizing your purchase, you can invest in the MediaDS with confidence.
Combining effortless enterprise deployment with a comprehensive, standalone transmission workflow spanning from signal origination at the SDI connection to content delivery over IP, the MediaDS enables your productions, presentations, and live events to be seen by anyone, anywhere, on any device—directly from your control room, studio, or production site.
| Local Video Input | 4 x 3G/HD/SD-SDI inputs |
| Network Video Input | 4 x IP inputs via NDI® |
| Local Video Output | 1 x DVI or HDMI user interface with multiviewer |
| Network Video Output | 4 x IP source outputs via NDI |
| Local Audio Input | 4 x SDI embedded 1 x 2 Balanced XLR (Line) 3 x 2 Balanced 1/4” (Line) |
| Network Audio |
|
| Supported SDI Input Formats |
|
| Encoding | 4 x RTMP streams via integrated Vizrt streaming encoder |
| Streaming Delivery | 4 x independent streams with support for Adobe® Flash® RTMP (RTMPE, RTMPT, RTMPTE, RTMPS), Apple® HTTP Live Streaming (HLS), MPEG-DASH, and WOWZ™, and simultaneous stream file archive |
| Streaming Targets | Independently configurable per video stream, with support for multiple selections and configurable presets |
| Streaming Profiles | Independently configurable per video stream, with presets included in formats up to 1080p 60 |
| Web | Built-in webpage available per video stream for local network viewing, with hosted media player, embed codes, and direct editing supported via HTML and CSS |
| Monitoring | Integrated multiviewer display with configurable workspaces and viewports |
| Video Configuration | Independently configurable video delay and color correction settings for each video stream, including white balance, proc amp controls and auto color |
| Audio Configuration | Independently configurable audio delay, automatic gain control, and manual audio channel level controls for each video stream |
| Signal Monitoring | Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709 |
| Processing | Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 48 kHz |
| A/V Standards |
|
| NIC | 2 x 1 Gigabit NIC |
| System Physical |
|
