Produce Sports Like a Pro. Anywhere.

Sports video producers can deliver a top-level fan experience from any location with the ultra-portable 3Play Mini. With instant replay, hi-resolution slow motion replay, transitions, high-end graphics, and more, the 3Play Mini live sports production suite is as powerful as it is portable.

Create audience-engaging coverage with a multi-camera replay and slow-motion system that fits in a backpack and captures all the action, wherever it’s happening. With 3Play Mini, home court advantage is yours!

• Produce instant replays, super-resolution slow motion, highlights, and more
• Add pro-level transitions and graphics into your programs
• Do much more than expensive replay systems for a fraction of the price—and size
• Plug into a switcher or video board and serve up every angle of excitement
• Control via a Web browser—just use a mobile device; no bulky hardware controller or additional cabling to pack
• Save time with a quick and easy set up
• Hand-carry size makes even the smallest or most extreme venues accessible

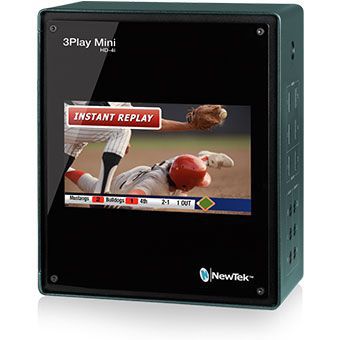

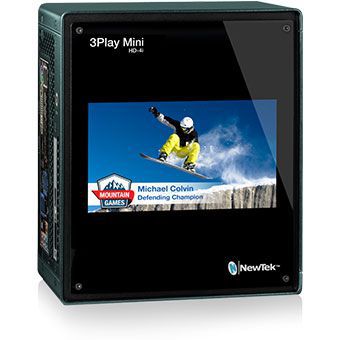

Don’t be constrained to a rack, booth, or truck. 3Play Mini gives you dozens of fan-favorite tools you can carry anywhere in one small solution. Plug in a few cameras, feed into a switcher or a video board, and you’re ready to produce championship-level productions in just moments.

• Capture the game’s greatest moments with slow motion, replay, and multi-angle camera switching

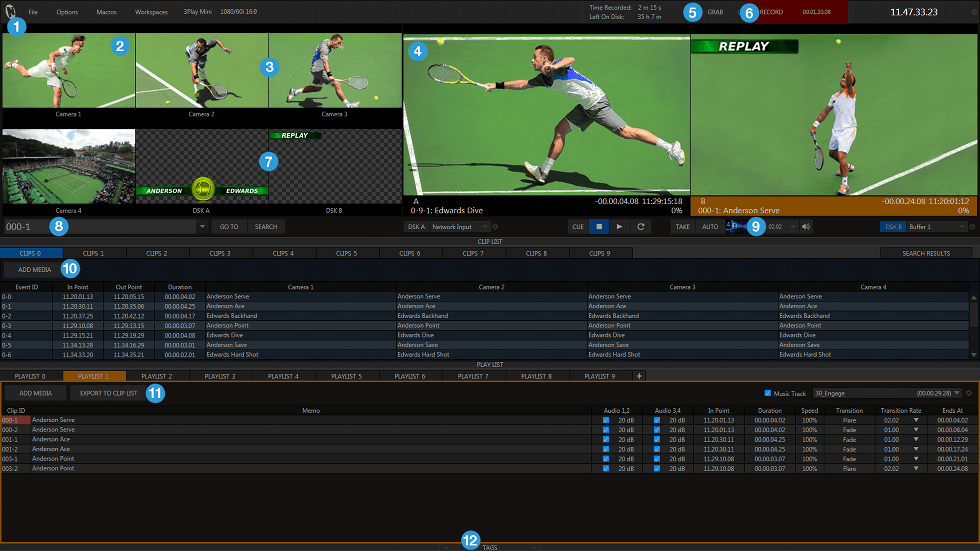

• With a Web-based control UI that you can access from any mobile device, keep your footprint small and your workflow fluid.
• ISO recording captures all angles for instant replay and saves them for real-time highlights editing or postproduction of later shows
• Clip, store, tag, and edit plays while recording live action
• Add graphics with names, scores, sponsor logos, and more without adding hardware
• Reach more fans with instant social sharing
• Monitor the live output with confidence on a built-in 7-inch LCD screen
• Cover more games with a solution that can be operated by a stringer
• Small size, easy-to-carry shape, and quick setup

The most real-time capabilities available in any multi-camera replay server.

All 3Play models are designed with fully integrated feature sets, including features that are exclusive to 3Play 440 and 3Play 4800 (where noted). This is how Vizrt helps you save money on video equipment, setup and takedown time, and video production costs, while expanding your opportunities for increased revenue. 3Play provides more creative visuals and higher quality, live sports production capabilities than any other system around.

Capture

Redundant Capture Mode*
3Play 4800 optionally allows 4-channel redundant recording to protect critical footage and speed up turnaround time for post-production workflows. With Redundant Mode enabled, 3Play 4800 delivers up to four primary recordings, each with its own duplicate recording backed up to a secondary drive. *Available only with 3Play 4800

Automatic Replay Recording
Forget to press record? No problem. When you set your first Mark In or Mark Out point, 3Play automatically triggers the Record button to capture incoming video signals.

Synchronized, Continuous Capture
When you press the Record button, configured sources are continuously captured and stored until you manually deactivate recording. Freely focus on 3Play's other functions without interrupting capture.

Multi-Channel Recording
3Play simultaneously records multiple channels of video at native resolution. Capture every angle of live action for instant replay, playback, or archive.

Playout

Simultaneous HD/SD Output
Record and playback content in HD and SD simultaneously, with configurable output resolutions.

Display Output
Supply an output signal from your production to a projector, scaling system, or display to present to an in-house or local audience.

Interpolated Slow Motion
Amplify the intensity of highlights or analyze the action frame by frame with smooth, interpolated slow motion. Replay the action at half-speed, quarter-speed, and more with incredible clarity and detail.

Multi-Speed Playback
Choose to replay captured clips or roll imported media in real time or at variable speeds. Show the action again at game speed, or alter the playback rate for dramatic emphasis.

List Playback
Choose and compile clips for sequenced playback. Create highlight reels or build blocks of content, then hit play to roll from one clip to the next automatically.

Clip Playback
Capture and mark live action as 3Play events, then replay clips from multiple angles. You can also import clips and operate 3Play as a media server.

Delayed Output
Once you begin recording, you can initiate playback whenever you like. Output recorded video seconds, minutes, even hours after recording starts.

Live Output
Send any incoming video signal directly to one or both output channels to supply a live feed to downstream displays or production systems.

Dual Playout Channels
3Play provides two fully independent, simultaneous playout channels for output, each capable of supplying a live feed or playback of recorded content to a downstream display or production system. It's like having two playback devices in one.

Control

MIDI Support*
Make automation of your production even easier or breakout control tasks to additional crew with 3Play's extensive MIDI support. Add one or any number of MIDI devices that fit your application and budget, assign macros to controller buttons, and provide dedicated control over 3Play operations—even combining commands with a TriCaster™ on the network or meshing them with other live elements like sound, lighting, effects, and more. *Not Available on 3Play 425

Macros*
Make commonly used series of commands automatic, or just simplify complex ones. Record any sequence of operations as a macro event, then trigger with a mouse click, keystroke, or MIDI button press. *Not available on 3Play 425

Control Surface*
Take a hands-on approach to 3Play operation. More intuitively and accessibly tap into all the capabilities the system has to offer with the companion control surface. *Compatible hardware control surfaces for 3Play Mini and 3Play 425 sold separately

Transport Controls
3Play's fundamental playback controls to stop, play, cycle, and scrub through clips let you navigate through your stored media with ease.

Operation

Highlight Reel Creation
Build and organize clip sequences in real time using the Play List. Configure audio settings and playback speed for each clip selected, add transitions, then select a background music track—and you have a highlight reel that's ready for in-show playback or export for later use.

Multi-Angle Clip Preview*
In addition to monitoring all incoming live feeds, you can preview every angle of recorded clips simultaneously with 3Play 4800 and 3Play 440. Simply turn on the embedded clip monitors and preview stored footage in the user interface, multi-view display, or both. *Not available on 3Play Mini or 3Play 425

Program-Preview Workflow*
Use 3Play's dual playout channels in tandem to enable switcher-style operation—cueing and preparing content on one channel, outputting the other, and using your choice of effects to transition between the two—to simplify your workflow or enhance production value. *Not available on 3Play 425

Signal Processing
Go end-to-end with zero signal degradation. 3Play processes signals at their native resolution, meaning no in-between down conversion or up conversion that can affect image quality.

Session Format Support
3Play supports live production in all industry-standard interlaced and progressive scan formats up to 1080p, with a variety of frame rates to choose from.

Multi-View Monitoring
Observe all incoming camera feeds and playout signals without an expensive, space-eating bank of monitors. You can even customize your screen layout to align with your preferred view of the action.

Visual Indicators
Real-time feedback in the form of color-coded visual indicators provides live cues while a production is in progress. Easily see the cameras currently recording, audio levels of incoming signals, clips currently displayed, and more.

Event Marking
Start and end events and clips at the exact frame you want with pinpoint Mark In and Mark Out controls. Each marked segment enters the Clips List as an event, a collection of the actively recording camera angles, and becomes available for playback.

Asset Management

Bookmarks*
Mark key points in clips using the timecode bookmark system. Bookmarks are marked independently of In and Out points, so your original clip remains intact as you create specific points to jump to in the recorded video. *Not available on 3Play 425

MAM Platform Integration*
Integrate 3Play with supported Media Asset Management (MAM) platforms, including axle Gear and Square Box Systems CatDV, to optimize any facility or workflow with dependencies on shared use and management of stored media assets. *Not available on 3Play 425

Tagging Engine*
Create your own coding system for instant metadata entry using the intelligent tagging engine. Assign keywords to teams, players, and more, then log clips with just a couple of clicks or button taps to stay organized and on top of the action. *Not available on 3Play 425

Event Filtering
Search for and filter clips by metadata descriptions to quickly and easily find the assets you're looking for. Simply enter keywords, and 3Play will display only the events with matching text.

Metadata
Enter custom descriptions for each clip to easily identify, organize, and manage 3Play assets.

List Organization
Organize all of your recorded content and stored media across multiple pages in both the Clips List and Play List, arranging assets by team, player, play type, time period, and more.

Workflow

Production Clocks
Keep tabs on production time with a primary clock matched to the current timecode, as well as a secondary clock matched to the custom-configured Start or End time, and hit every mark your show needs to hit.

Play List Export
Build a sequence of clips or a highlight reel in the Play List, then render as a single file available for playback from the Clips List and export for transfer or archive.

Media Export
Optimize stored media files for virtually any post-production purpose, with a versatile Export Media module that converts files into the most appropriate format or formats for their next destination.

Media Import
The Import Media module enables batch import of files with optional transcoding, and automatically categorizes and distributes incoming files to the appropriate locations for production use. All media formats apply. 3Play will play them.

Media Browser
Use this familiar interface to navigate through stored media files, with intuitive organization and filtering for efficient, effortless asset retrieval.

Channel Info
View critical information about the signal currently assigned to the output channels, including the control mode, timecode, playback speed, and more.

Timecode
Scrub through and sequence recorded files quickly and easily with embedded timecode. 3Play can generate a local timecode from the internal system clock or support an external linear timecode (LTC) reference.* *LTC timecode reference not supported by 3Play Mini

Configuration

Session Templates*
Set up and store session settings in reusable templates to jump right to your custom configuration during pre-show activities. *Not available on 3Play 425

Automatic Color Correction*
Manually adjust additional characteristics of incoming signals connected to 3Play with advanced color correction and shading—or enable automatic adjustments to video inputs, matching color characteristics to a specific camera or mean characteristics of all incoming signals. *Not available on 3Play 425

Proc Amp Controls
Make subpar sources look better—and all of them perfectly consistent. Adjust color characteristics and levels for input sources, including brightness, contrast, hue, and saturation, as well as white balance settings, to perform a quick-fix for visuals and boost the look of your camera angles.

Recording Configuration
Freely choose the destination drive for each active recording and other assets associated with your 3Play session.

Per-Asset Configuration
Fine-tuning at your fingertips. Freely configure input connection types and names, audio settings, color correction, clip settings, and more to your specifications. 3Play's configuration options are extensive, easy to use, and customizable to your particular needs.

Visuals

Program-Preview Transitions*
Operate the A and B output channels like a video mixer, cutting and transitioning between the two creatively, with hundreds of industry-standard wipes, dissolves, DVE effects, and more. *Not available on 3Play 425

Warping Effects
Add another dimension to animated transitions with imaginative effects, like real-time cloth dynamics, 3D warping, and transformations, to create a visual that will leave your audience in awe—and others wondering how you did it. *Not available on 3Play 425

Animated Transitions*
Raise production values beyond any standard replay system, with custom-created Animation Store Transitions. Embed your logo or signature visuals into transitions via full-color animated overlays, along with individual sounds for transitioning in and out. *Not available on 3Play 425

Buffers*
Access additional pre-produced video, motion graphics, titles, bugs, and animated effects instantly, and enhance the production value of live and recorded content. Watch folder functionality even enables remote, real-time updating of buffers over a local network. *Not available on 3Play 425

Real-Time Layering*
Apply titles, graphics, and animations to live output and video playback, layer one playback angle over another for picture-in-picture replay, or capture the game clock and layer over playback for official review. *Not available on 3Play 425

Play List Transitions
Roll from clip to clip in the Play List using hard cuts, or include transitions between clips for added effect.

Audio

Audio Configuration
Each 3Play video input supports independent configuration of the audio channel and audio input type for the simultaneously recorded sound, enabling you to standardize the audio between recordings or pair an audio source with a specific input for capture.

Mix-and-Match Audio Inputs
Use every digital or analog audio device within reach to capture nat sound, commentary, and more. 3Play accepts any combination of supported audio connections for flexible setup and top-quality sound.

Multimedia

Still Grab*
Capture freeze frames of the action from every angle simultaneously. Still images can be saved for later use or published in real time to supported storage locations and social media platforms. *Not available on 3Play 425

Network Source Support*
Connect 3Play to a local network and tap into a variety of compatible devices for supplemental production content—even selecting from multiple connected sources while live. *Not available on 3Play 425

File Format Support
Add media of virtually any file format to the Clips List or Play List for playback and intermix with captured footage for content variety.

Background Music for Highlights
Import an MP3 or WAV file of your favorite music bed or song, apply it to your Play List, and pump up your highlight reels with a background audio track.

Media Playback
Load and playback both long- and short-form video clips, pre-produced video packages, and motion graphics with support for an extensive range of file formats to work with essentially any media asset.

Integration

Turnkey Solution

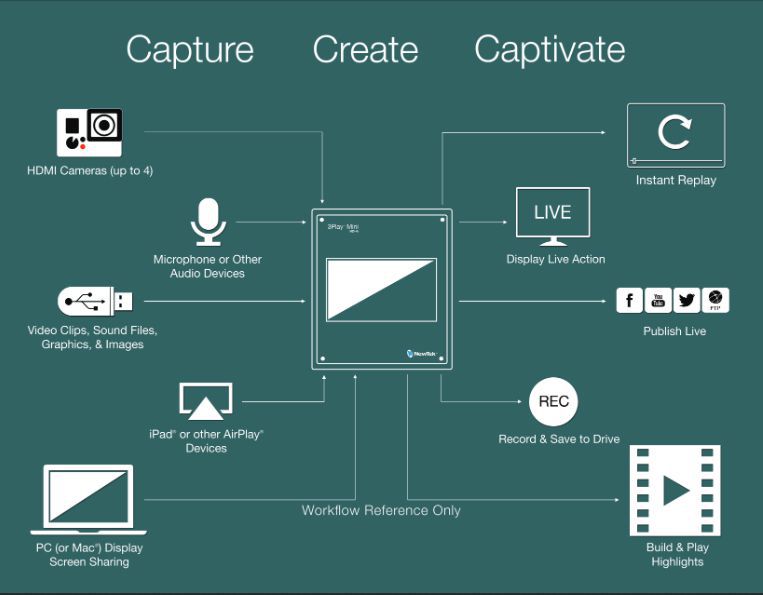

Everything you need to make professional-looking live sports coverage: multi-camera live video, multi-channel recording, instant replay with interpolated slow motion, in-game highlights, and more built into one compact frame without all of the additional setup time, complex cabling, and cost.

Router Support*
Scale your production to accommodate higher camera counts, flex from project to project, or simply integrate into an existing infrastructure with external video router support. Access and control upstream video routers right from the user interface, including models from Blackmagic Design, AJA, Miranda, Ensemble Designs, Utah Scientific, and brands supporting Grass Valley Native Protocol (GVNP). *Not available on 3Play 425

AMP Support*
3Play provides for seamless integration with third-party products supporting Advanced Media Protocol (AMP), enabling compatible systems to issue commands to 3Play for more fluid and sophisticated workflows. *Not available on 3Play 425

Scoreboard Data Feed*
Feed real-time scoreboard information into on-screen graphics. 3Play's network sources support data feeds from compatible scoreboards through NewTek's LiveText companion software and developer network solutions over the local network, enabling display of the score, game clock, and other statistical information. *Not available on 3Play 425

Display Ports*
Dual VGA display ports supply auxiliary output feeds to local monitors or projectors, expanding user workspace and on-site viewing options. *Not available on 3Play 425

Backup and Restore*
Run your production operation with a safety net. Easily restore factory defaults, or create a bootable clone of 3Play's system drive on another hard drive inserted into one of the removable drive bays or connected externally. *Not available on 3Play 425

Removable Storage*
When marathon recording is a must, take advantage of a surplus of recording capacity with 3Play's removable drive bays. Extend the base recording capacity even further by swapping out the included drives for fresh storage as needed. *Not available on 3Play Mini

Rackmount Form Factor*
Industry-standard 2U and 4U rackmount chassis mean you can install 3Play into any production environment with ease. Slide 3Play into the rack to replace racks of other equipment or to work alongside your current workflow. *Not applicable to 3Play Mini

Genlock*
Synchronize 3Play with other equipment in the video chain using the genlock connection on the rear panel and HD or SD reference signals. *Not available on 3Play Mini

Mult-Tiered Fail-Safe
For added protection and safeguarding, 3Play includes multiple "Always on Air" features that create a multi-tiered redundant fail-safe system that keeps your live production in tip-top shape, with minimal disruption even in the face of catastrophe.

Mix-and-Match Video Inputs
Go with new video cameras and get the most out of your existing inventory. Each 3Play supports HD and SD digital cameras, with resolutions and frame rates freely configurable for each live video input.

Publishing

Social Media Share Panel*
Take over second and third screens with built-in social media sharing. Real-time publishing instantly links you with all of your social networks—like Facebook, Twitter, and YouTube—so you can share, distribute, and engage instantly, even when you don't have a dedicated social media producer on site. *Not available on 3Play 425

FTP & File Copy*
Duplicate and transfer saved files and recordings for internal and external distribution, getting content to the people that need it, quickly and efficiently. *Not available on 3Play 425

Clip Publishing*
Prepare recorded files for publishing, marking in and out points on the frames of preference, then upload to the desired destination for internal use or external viewing. *Not available on 3Play 425

Total Solution

Cross-Platform Control*
Connect TriCaster and 3Play to the same local network to enable remote operation of 3Play clip cueing and playback from the TriCaster interface, and consolidate control by combining macro commands that trigger operations across both platforms. *Not available on 3Play 425

SDK Program and Developer Network
Create a live sports production ecosystem around 3Play, thanks to a growing list of organizations and developers using NewTek's SDK program to produce partner solutions. Developed specifically for Vizrt products, these partner solutions can help you create more efficient and compelling workflows.

Updates, Upgrades, and Trade-Ups
3Play systems incorporate a "check for updates" function to ensure your system has the most current support. In addition, Vizrt provides highly competitive upgrade pricing and the most generous trade-up offers available. Contact your local reseller for more details.

Network Output to TriCaster
Supply 3Play output feeds over the network to TriCaster. When connected to the same local network, TriCaster recognizes 3Play and can accept the output signals as live sources through the network inputs.

Video Inputs	4 simultaneous live video sources over HDMI, with per-input auto-detection of format, resolution, and frame rate Compatible with external video routers manufactured by AJA, Blackmagic Design, Ensemble Designs, Miranda, Utah Scientific, and brands supporting Grass Valley Native Protocol Per-input scaler (including 3:2 intelligent pull-down) and frame synchronizer enabling intermixing of formats Optionally enable automatic color correction and shading to dynamically match color characteristics between inputs
Video Outputs	2 fully independent HDMI playout channels 1 x DVI and 1 x HDMI (video only) display ports for auxiliary monitoring or display, with independent color control Ethernet connection for A/V output over a local network to TriCaster
Output Modes	A; B; A+B with transitions between playout channels
Recording	Standalone recording of up to 4 simultaneous channels
Recording Format	Native recording up to 1080p resolution in high-quality QuickTime format (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio)
Recording Capacity	2 x 750GB internal drives accommodating a total of ~30 hours 1080i (varies by resolution and format; capacity expandable using additional supported storage) Simultaneous recording of up to 4 channels (2 channels per drive) to included storage or other supported storage configurations Supports recording to external USB 3.0 storage and shared storage integration via third-party partner solutions
Playback	Variable-speed playback from -200% to 200% via on-screen controls, companion Web CS, or optional hardware control surface
Grab	Grab still images from output or all inputs and outputs
Media Publishing	Supports direct content upload to YouTube™, Facebook, Twitter™, FTP, local or external volumes, and network servers
Overlays	1 overlay per playout channel, with independent transition, positioning, scaling and cropping, and support for picture-in-picture layering of live camera, playback angle, game clock signal, and more
Network Inputs	2 live inputs for overlay application via Gigabit connection, selectable from any available network sources with support for video, audio, and alpha channel Supported sources include networked computers via Vizrt iVGA client application, wireless Apple® AirPlay® devices, Vizrt LiveText™ remote titling software, and a variety of third-party partner solutions
Buffers	Content buffers to store and playback animations, still images, and graphics for overlay application Shareable across network for watch folder application, with real-time edit and update of content
Effects and Transitions	Standard transitions and customizable animation store transitions supported for transitioning between playout channels and playlist clips Animation Store Creator application included for custom transitions and effects Integrated TransWarp effects engine supports per-pixel alpha blending between sources, real-time 3D warping of video or graphics, and embedded audio
Asset Management	FastClip information window displays asset data and collects input from keyboard or optional control surface for data entry, editing, navigation, search, and management Tags system to enter and organize metadata via user-defined codes, with support for Microsoft Excel list import Bookmarks to define and transport to action points Supports integration with external MAM platforms, including axle Gear and Square Box Systems CatDV
Scoreboard Integration	Display real-time scoreboard data in on-screen graphics over local network via Vizrt LiveText or third-party partner solutions
Live Desktop	Resizable, full field rate preview monitors for all live sources and playout channels, with optional overlays for audio VU meters and safe areas Optionally display DSK monitors to preview overlay sources Single or dual pane operation of Clips List and Playlist, with undo/redo commands
Multi-Viewer	Supported with 2nd display, including playback data
Audio Inputs	4 HDMI Embedded 1 x 1/4” (6.35 mm) balanced mic 2 x 1/4” (6.35 mm) balanced line
Audio Outputs	2 HDMI Embedded 2 x 1/4” (6.35 mm) balanced line 1/4” (6.35mm) stereo headphone jack
Supported Session Formats	NTSC model: 1080/30p, 1080/60i, 720/60p, 720/30p, 480/60p Multi-Standard model: NTSC 1080/30p, 1080/60i, 720/60p, 720/30p, 480/60p; NTSC-J 1080/30p, 1080/60i, 720/60p, 720/30p, 480/60p; PAL 1080/25p, 1080/50i, 720/50p, 720/25p, 576/50p
Session Management	Set up and store session settings in reusable template sessions
Processing	Video: 4:4:4:4, 32-bit Floating Point Audio: 4 channels, 96kHz, 32-bit Floating Point
Time Code	Internal system clock
Tally Display	Supports tally display from Vizrt TriCaster system (or other supported system via Vizrt SDK) over local network
Macros	Record commands and operation sequences for recall and automation using keyboard, mouse, or compatible control device supporting macro assignment Macro editor for modifying user-defined macro configurations and sequences Augment and extend 3Play operation using macro plug-ins to control external devices
External Control	Companion Web CS supporting control via mouse or compatible touchscreen device Support for standard MIDI protocol enabling third-party MIDI device control of 3Play operations via macros Support for Advanced Media Protocol (AMP), enabling remote operation of 3Play functions by compatible third-party production systems Support for remote operation of 3Play functions by a companion Vizrt TriCaster system
Optional Hardware Controller	Supports tactile control via optional 3Play hardware control surface Surface ~ 12.7 W x 1.0 H x 11.7 D in (32.3 x 2.5 x 29.7 cm) Base ~ 12.7 W x 10.8 D in (32.3 x 27.4 cm) Base Height ~ 0.7-2.7 in (1.8-6.9 cm) 7.5 lbs (3.4 kg)
Monitoring	DVI and HDMI monitor outputs for user interface and multiview preview displays
Case Display	7.0 in (17.8 cm) LCD screen with configurable output (A or B playout channel; external monitor required for user interface)
Built-In WiFi	Supports wireless connection to local network for publishing and networking with external devices 802.11ac WiFi standard
Built-In Bluetooth	Support for keyboard and mouse using wireless Bluetooth technology
System Physical	4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm) 9 lbs (4.1 kg) Multi-tiered software fail-safe Included cable retention bracket may double as handle
System Electrical	AC Mains: Voltage (volts): 100/240 Current (amps): 1.8 Frequency (Hz): 50/60

Feature	3Play 4800	3Play 440	3Play Mini	3Play 425
Video Format	HD/SD	HD/SD	HD/SD	HD/SD
I/O	SDI + Analog	SDI + Analog	HDMI	SDI + Analog
Video Inputs	8	4	4	4
Playout Channels	2	2	2	2
Recording Channels (max)	8	4	4	4
Redundant Recording Mode	Yes	-	-	-
Base Recording Capacity (HD)	~ 200 HRS	~ 140 HRS	~ 30 HRS	~ 40 HRS
Recording Format	HQ QuickTime	HQ QuickTime	HQ QuickTime	MPEG-2 all I-frame
Playback Speed Range	-200% to 200%	-200% to 200%	-200% to 200%	0% to 100%
External Video Router Support	Yes	Yes	Yes	-
Media Publishing	Yes	Yes	Yes	-
Grab Stills	Yes	Yes	Yes	-
Transition Between Playout Channels	Yes	Yes	Yes	-
Effects	Yes	Yes	Yes	-
Animation Store Transitions	Yes	Yes	Yes	-
Animation Store Creator	Yes	Yes	Yes	-
Playlist Transitions	Yes	Yes	Yes	Crossfade only
Playlist Music Track	Yes	Yes	Yes	Yes
DSK Overlays	Yes	Yes	Yes	-
Network Inputs	Yes	Yes	Yes	-
Animation Buffers	Yes	Yes	Yes	-
Metadata Entry	Yes	Yes	Yes	Yes
Keyword Tagging Engine	Yes	Yes	Yes	-
Asset Management	Yes	Yes	Yes	-
Macros	Yes	Yes	Yes	-
MIDI Support	Yes	Yes	Yes	-
Auto Color and Advanced Shading	Yes	Yes	Yes	-
External Monitor Color Control	Yes	Yes	Yes	-
Multi-View Monitoring	Yes	Yes	Yes	Yes
Clip Monitors	Yes	Yes	-	-
Case Display	-	-	Yes	-
Supplemental Display Ports	Yes	Yes	Yes	-
Supplemental HDMI Output	Yes	Yes	-	Yes
AUX Output	Yes	-	-	-
Network Output to TriCaster	Yes	Yes	Yes	Yes
Genlock	Yes	Yes	-	Yes
Downstream System Tally Support	Yes	Yes	Yes	-
TriCaster Workflow Integration	Yes	Yes	Yes	-
Advanced Media Protocol (AMP) Support	Yes	Yes	Yes	-
Scoreboard Data Feed Support (via LiveText)	Yes	Yes	Yes	-
External MAM Platform Integration	Yes	Yes	Yes	-
SDK Support	Yes	Yes	Yes	-
Hardware Fail-Safe	Yes	Yes	-	Yes
Software Fail-Safe	Yes	Yes	Yes	Yes
Redundant PSU	Yes	-	-	-
Internal Storage	-	3TB	2 x 750GB	2TB (partitioned)
Removable Storage	4 x 2TB	3TB	-	1TB
Hardware Control Surface	Included	Included	Optional	Optional
Form Factor	4U Rack Mount	2U Rack Mount	Mini	2U Rack Mount

3Play Mini Reference
