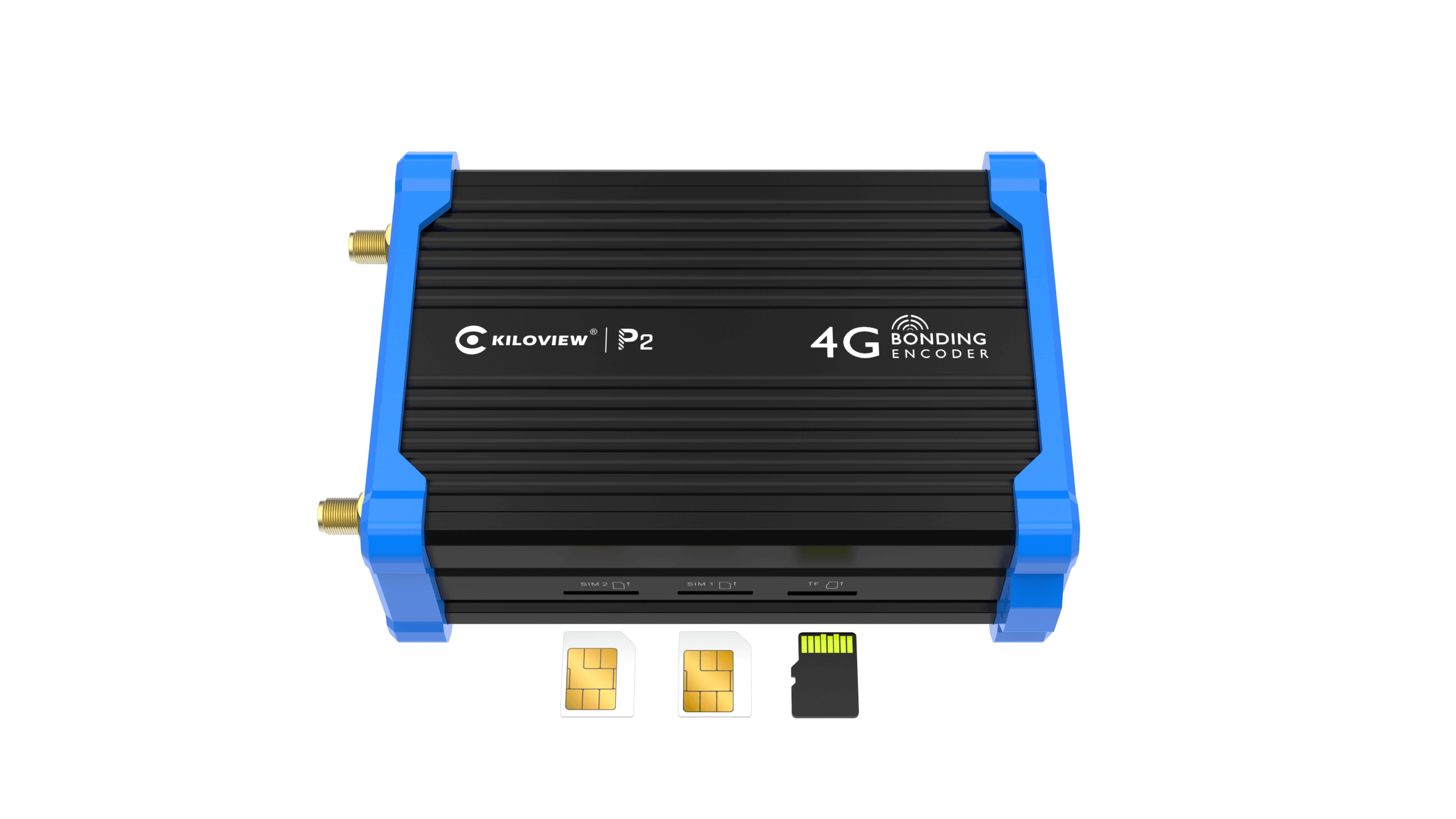

P2 HDMI over IP 4G Bonding Encoder with Battery

Kiloview P2 portable live video encoder offers wireless live streaming directly from your HDMI camera source to any online destination through multi-channels 4g bonding, wifi and wired network. Kiloview P2 encoder lets content creators of all sizes, budgets and markets live stream professional quality HD video directly to any online video provider without a large crew and lots of equipment. P2 encoder has approved by CE,FCC,ISO,etc.

Features

• H.264 video encoding
• SDK Provided
• Branded chips
• Multi-channels 4G-LTE bonding
• Removable hot shoe
• Low bandwidth transmission
• Built-in lithium battery
• 1080P HD live streaming
• Full live platforms supported

Reliable & portable video encoding transmission, suitable for a variety of outdoor live broadcast applications.

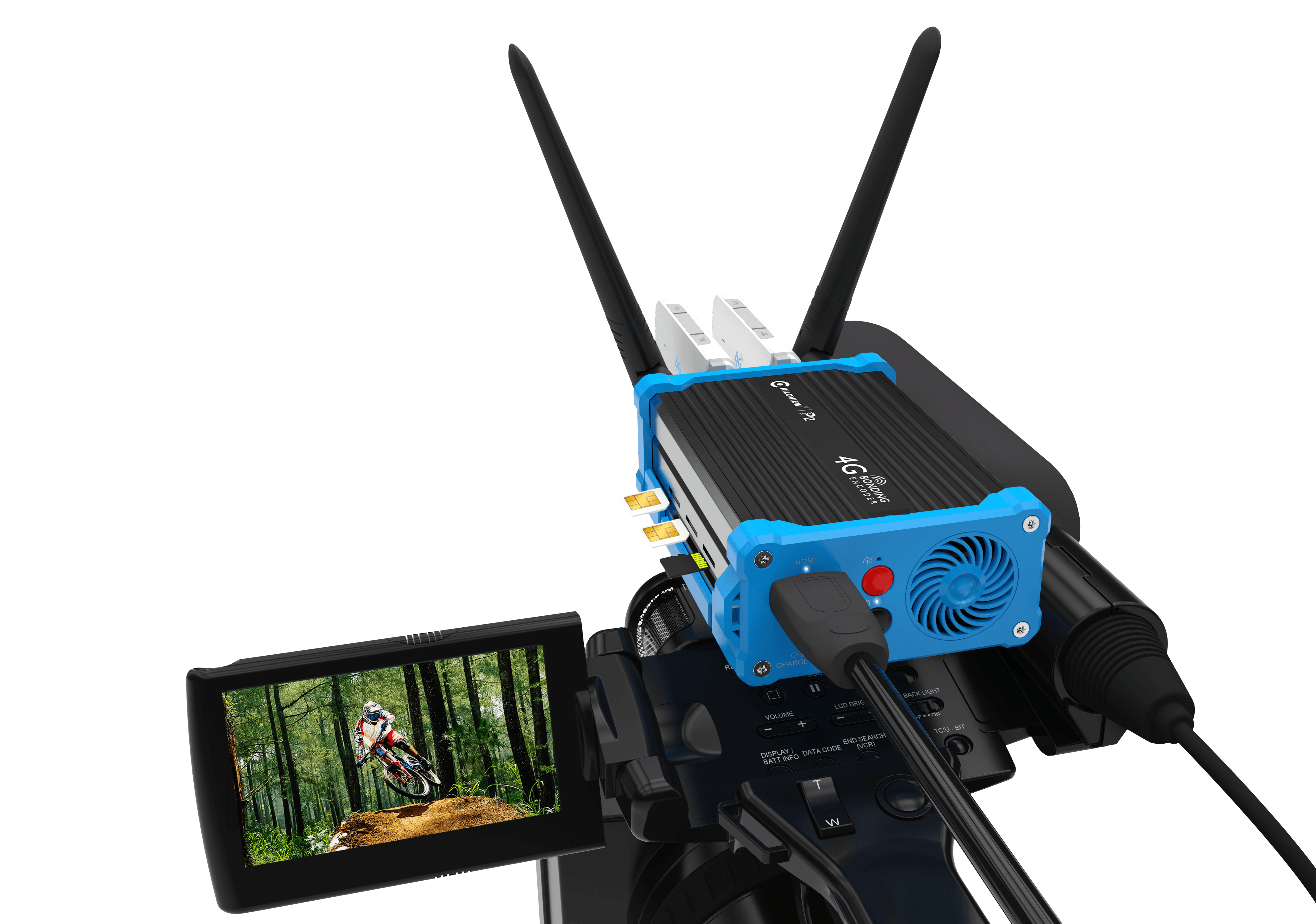

• Total weight is only 400g (including battery), with hot shoe bracket, it can be mounted on camera for portable application.
• Supports 5 channels bonding including 4 channels 4G-LTE and 1 channel Wifi/Ethernet by USB, transmission bandwidth is greatly expanded to improve the reliability of video wireless transmission.
• Built-in large-capacity lithium battery lasts about 3 hours, it also supports 5-16v external mobile power supply, making continuous working possible.
• Internal cooling fan makes the encoderr adapting to high temperature conditions, stable and reliable operation.;

Advanced encoding and transmission technology, Kiloview P series video encoder has high bandwidth adaptability, makes it possible to transmit high-definition, low-latency, good image under low bit network.

• With branded chips solution together with video dynamic noise reduction and image enhancement technology, it can realize good encoding image under low bit transmission. Good video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p network.
• Advanced video buffering technology, dynamic rate adjustment technology, FEC technology and links aggregation technology to ensure video encoding delay ≤ 67ms and stable transmission.
• Adjustable bit rate from 64kbit/s～40Mbit/s

Powerful streaming media service function, supports RTSP/RTMP/TS/Onvif/SIP（customization avaliable）and SRT protocols, supports image and characters overlay, voice intercom and other functions

• RTSP/ RTMP/ HLS/ TS/ Onvif/ SIP(customization avaliable) and some other streaming media protocols supported for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform / NVR system.
• SRT supported to ensure secure and reliable transmission.
• Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding.
• Capable with customized text and image overlay function, which can be at any position on the screen.
• Voice intercom function (need to deploy voice intercom software).
• With SD/TF card slot, it supports local recording, and supports NAS network storage.

Model	P2
Video input	1*HDMI
Network support	Support 4G-LTE, WIFI (2.4G/5.0GHz dual mode), USB extend Ethernet
4G bonding	Support 4-channels 4G bonding (2 internal + 2 external)
Video resolution	Up to 1080P60Hz, details as follows: 1080p23.98/24/25/29.97/30 1080p50/59.94/60 1080i50/59.94/60 720p23.98/24/25/29.97/30 720p50/59.94/60
Video encoding	H.264/ AVC High/ Main/ Baseline profile (up to Level 5.3) ; Motion-JPEG
Audio encoding	AAC/G.711
Encoding latency	<67ms
Media transmission protocols	RTMP/ SRT/ HLS/ TS over UDP/ RTSP/ Onvif/ SIP(customization avaliable) and so on
Management	Web/ APP
Hot shoe	Removable
Battery capacity	3.7V 6800mAh（29.6Wh）, last about 3 hours to work
Power supply	DC 12V 1A
Power consumption	6.5W
Working temperature	-20℃~45℃
Size	115*75*35mm(4.53*2.96*1.38")
Weight	400g(14.11oz)
