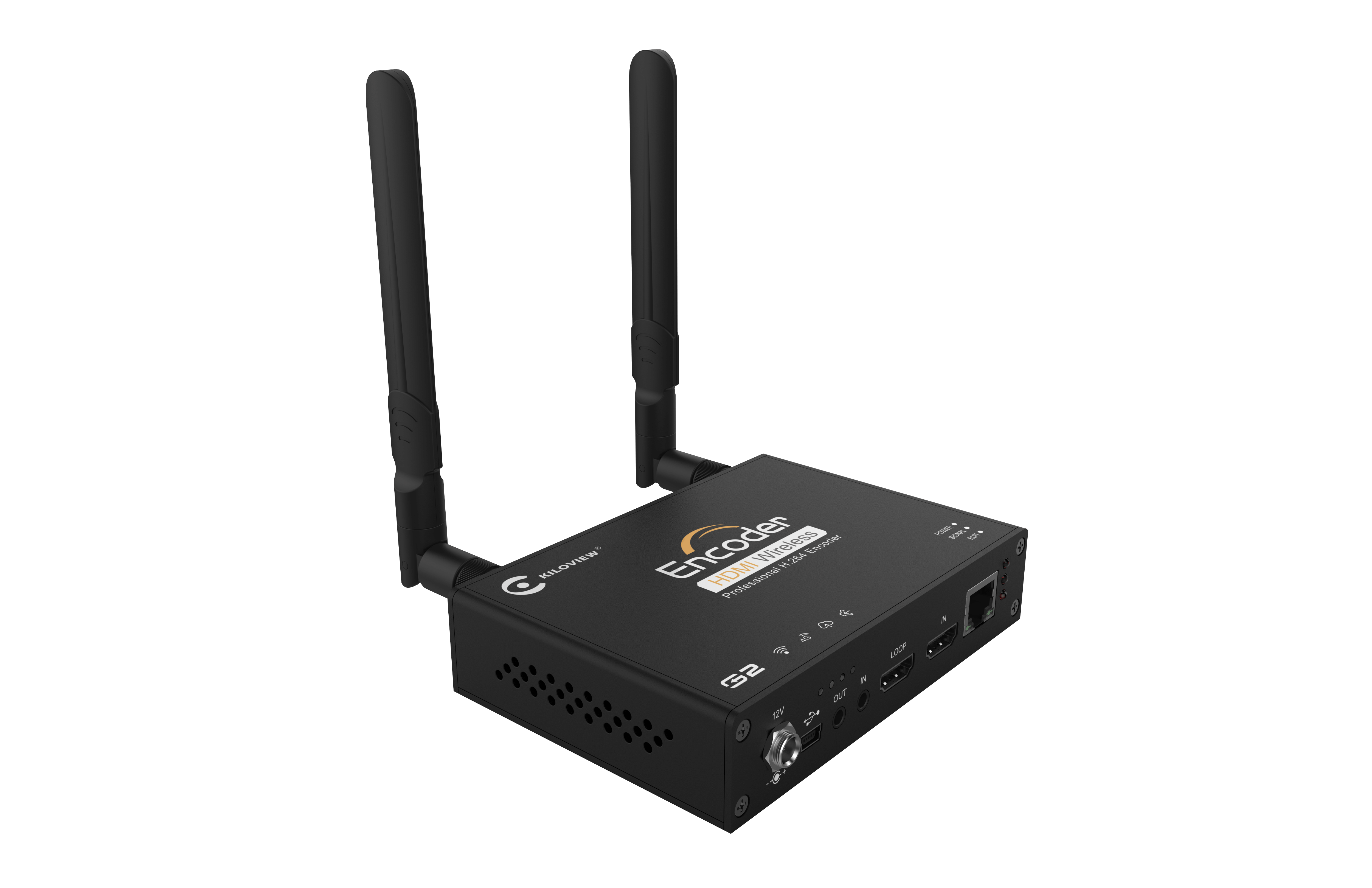

G2 1080P HDMI to IP 4G-LTE Wireless Video Encoder

Kiloview G2 wireless video encoder can convert the full 1080P HDMI video source to IP signal without loss and push to internet streaming broadcast platforms through Ethernet, built-in Wifi or 4g network to realize video transmission, which makes live broadcasting available at anytime and anywhere. Kiloview G2 encoder is widely applied in hotel TV system, school teaching, video conference. G2 encoder has approved by CE,FCC,ISO,etc.

Features

• H.264 video encoding
• HDMI loop monitoring
• Voice intercom
• Branded chips
• SDK provided
• SRT supported
• Support wifi/4g/Ethernet
• Low power consumption (<4w)
• Text and image overlay

Built-in WIFI module, wireless video transmission/live broadcast supported.

• Built-in dual-band (2.4G/5.8G Hz) wifi module, USB 4G-LTE Dongle supported, it supports wireless transmission/ live broadcast of mobile video sources in local space.
• Built-in self-adaptive Ethernet interface, wired network transmission also supported.
• Low power consumption, 24 hours continuous working available.

High bandwidth adaptability makes it possible to transmit high-definition, low-latency, non-padding image under low bit network.

• With branded chips solution together with video dynamic noise reduction and image enhancement technology, it can realize good encoding image under low bit transmission. Good video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p network.
• Advanced video buffering technology and FEC technology ensures video encoding delay ≤ 67ms and stable transmission.
• Adjustable bit rate from 64kbit/s～40Mbit/s
• Note: (≤67ms) refers to the delay of the encoder end, and the end-to-end delay also relates to network, decoding, etc.

Powerful streaming media service function, supports RTSP/RTMP/TS/Onvif/ and SRT protocols, supports image and characters overlay, voice intercom and other functions.

• RTSP/ RTMP/ HLS/ TS/ Onvif/ SIP/ NDI (Customization available) and some other streaming media protocols supported for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform / NVR system.
• SRT supported to ensure secure and reliable transmission
• Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p60Hz video encoding.
• Capable with customized text and image overlay function, which can be at any position on the screen.
• Audio embedding encoding supported, with voice intercom function (need to deploy voice intercom software).
• With SD/TF card slot, it supports local recording, and supports NAS network storage.
• With video real-time loop function, there is no delay and it is convenient for live monitoring.

Model	G2
Input interface	1*HDMI
Analog video input	1*3.5mm
USB	2*USB 2.0 Type-A ；1*USB 2.0 Mini-USB
Micro SD	1*Micro SD/TF Card
Network support	WIFI(2.4G/5.0G Hz), Wired network, 4G-LTE
Video loop	1*HDMI
Video resolution	Up to 1080P60Hz： 1080p23.98/24/25/29.97/30Hz 1080p50/59.94/60Hz 1080i50/59.94/60Hz 720p23.98/24/25/29.97/30Hz 720p50/59.94/60Hz, 576i, 480i/720*480(NTSC)，720*576(PAL)
Video encoding	H.264/ AVC High/ Main/ Baseline profile (up to Level 5.3) ; Motion-JPEG
Audio encoding	AAC/G.711
Encoding latency	<67ms
Transmission protocols
Management	Web/APP
Power Supply	DC 12V 1A
Power Consumption	4w
Operating temperature	-20℃~60℃
Size	125*89*28mm（4.92*3.5*1.1"）
Weight	380g(13.4oz)
