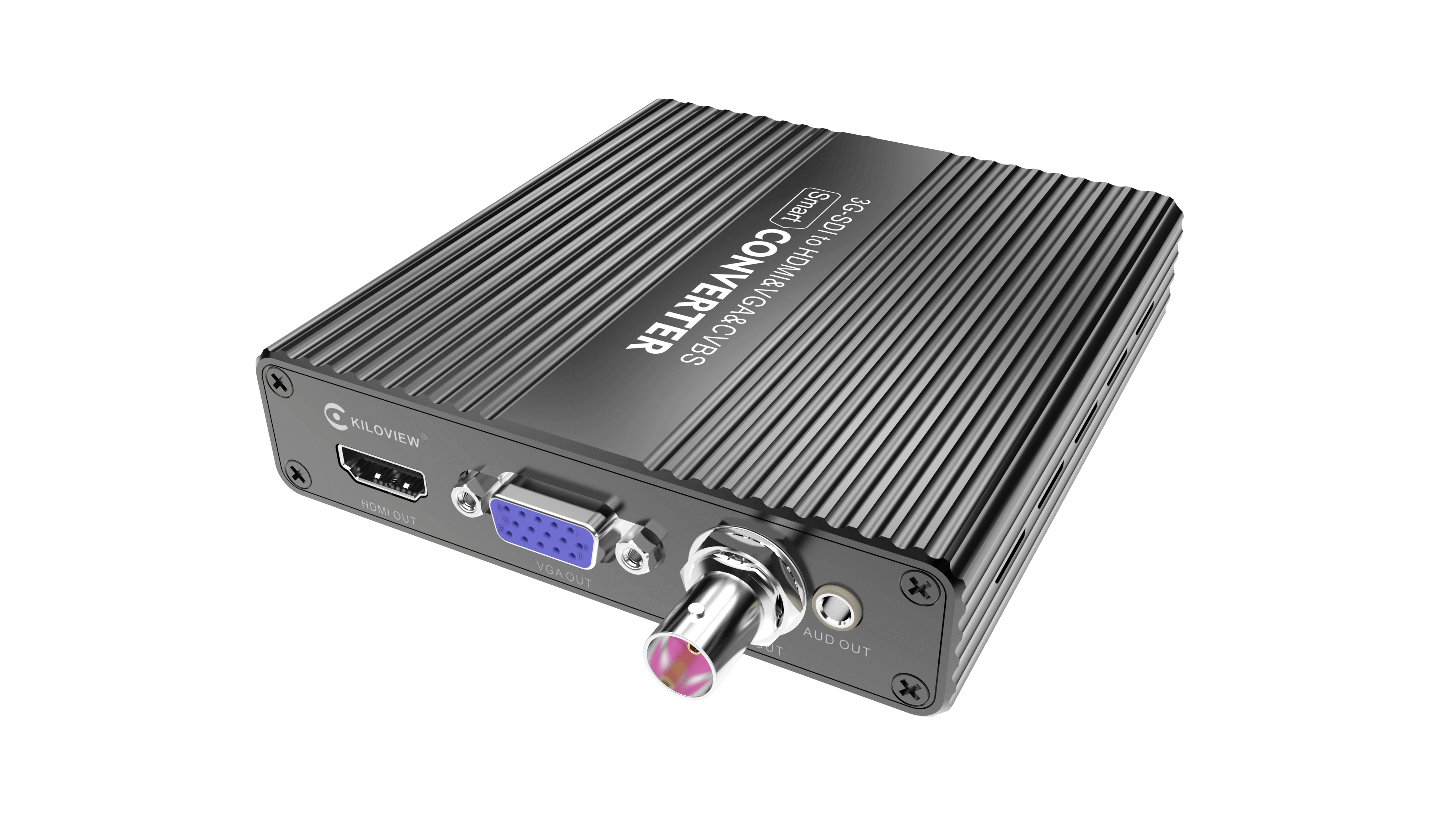

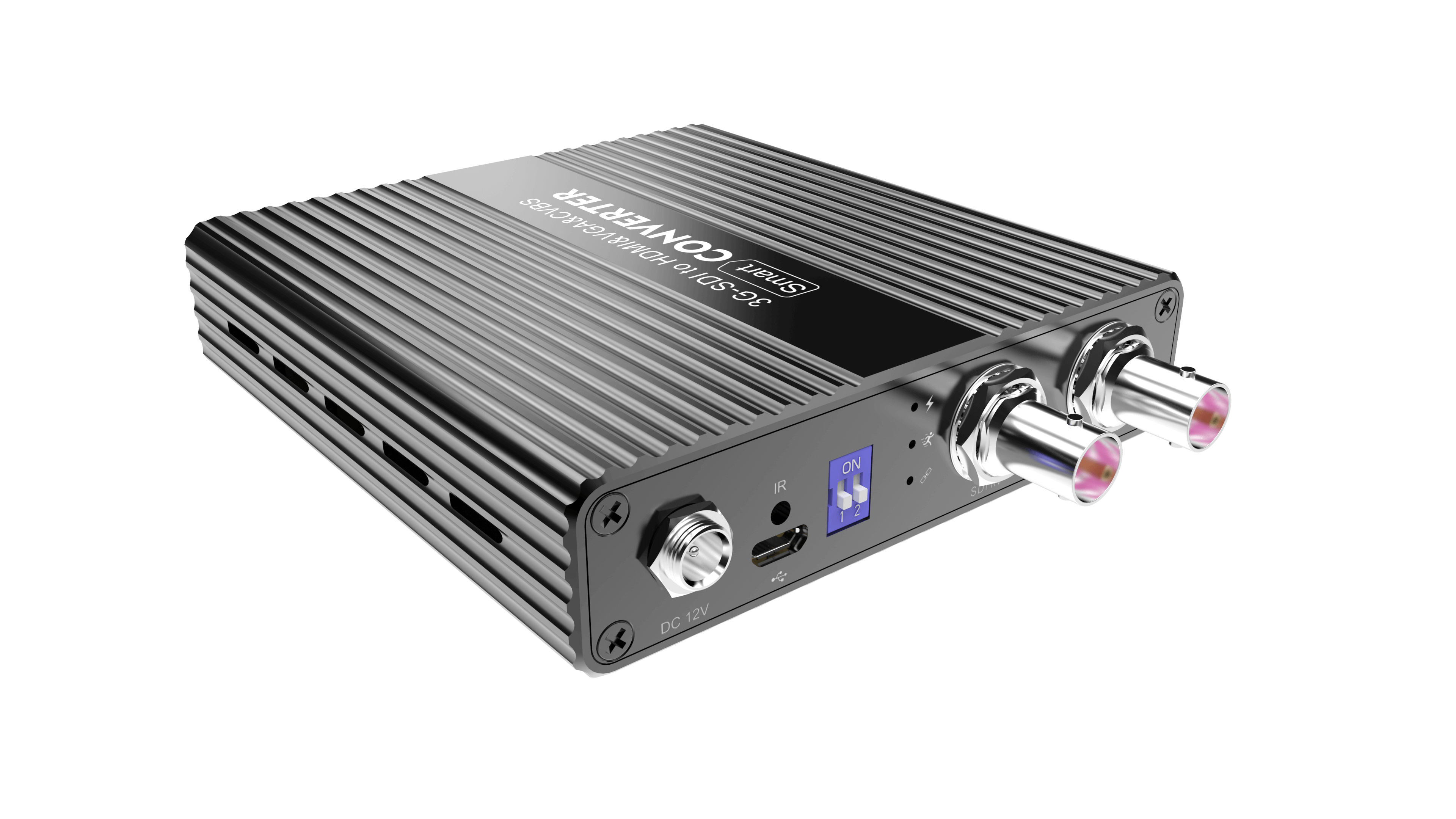

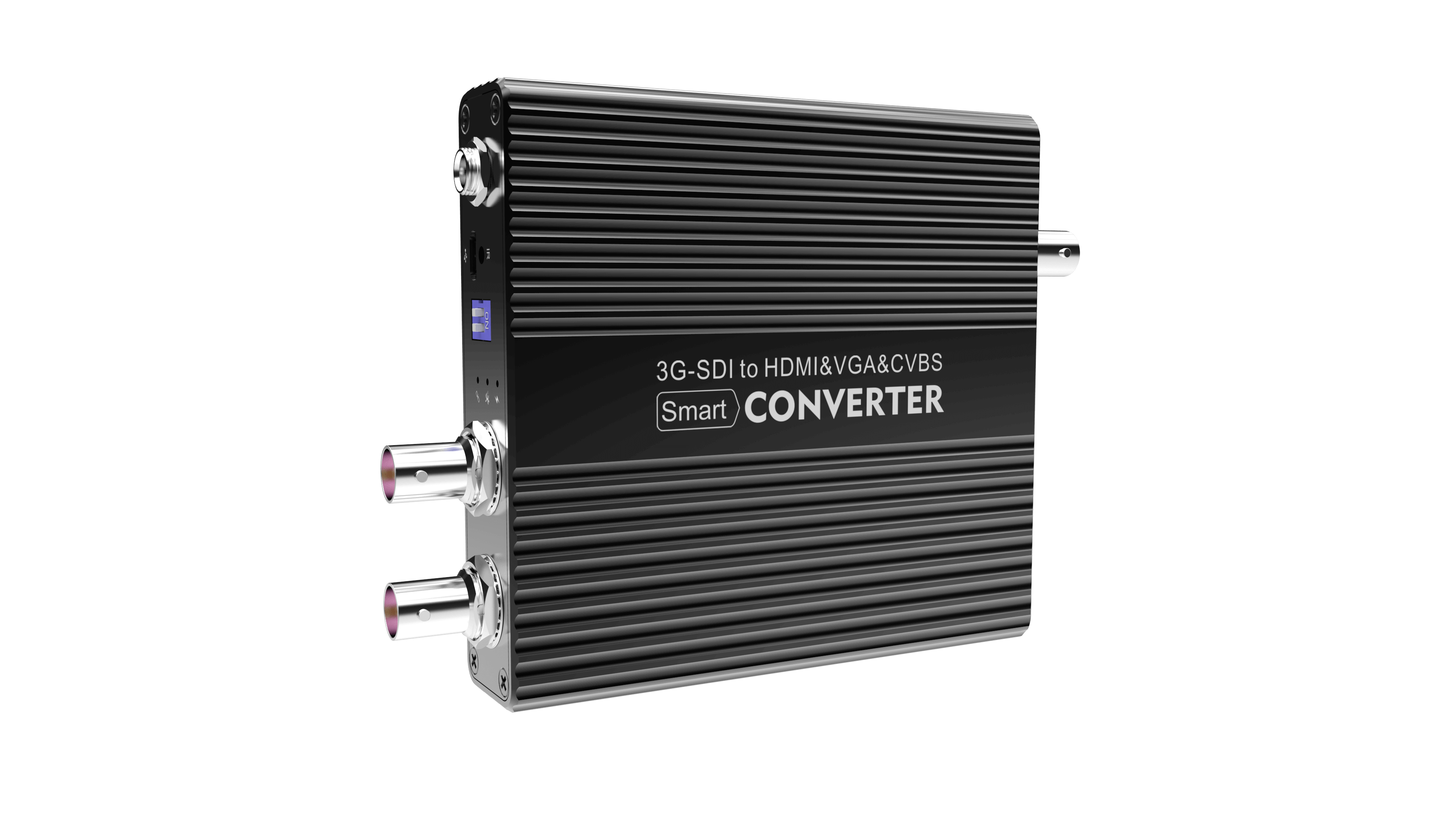

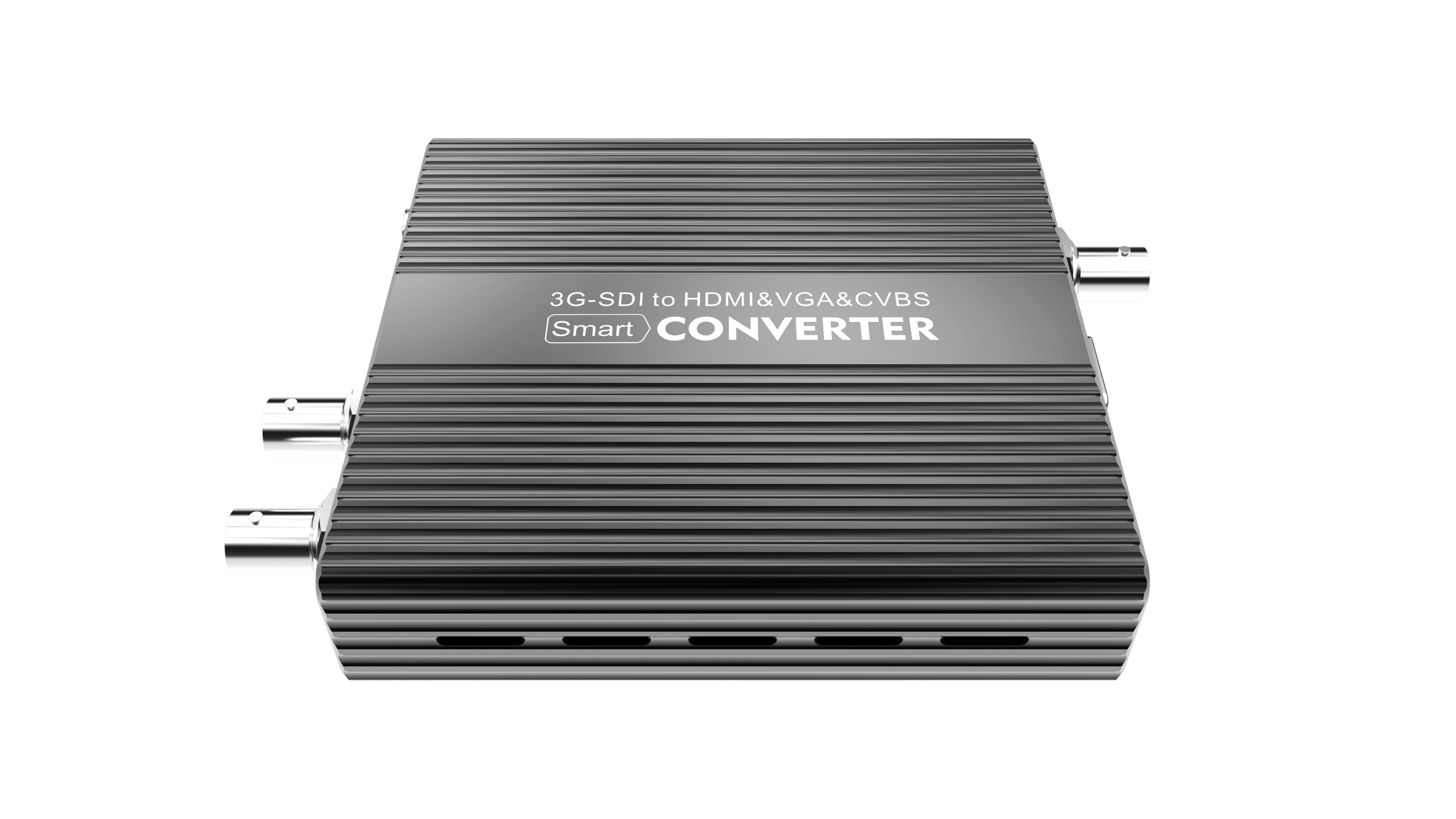

CV180 Broadcast Grade SDI to HDMI/VGA/AV Video Converter

Kiloview KV-CV180 is a broadcast level multifunctional video converter which can convert SDI to HDMI, VGA and AV(CVBS) with functions of frame conversion, resolution conversion, image scale up/ down, color conditioning, image enhancement and adjustment, etc.

Features

• SD/ HD /3G SDI to HDMI/ VGA /AV( CVBS)
• High compatibility
• Frame/ resolution conversion
• Remote control
• Web configuration management
• 7*24h continuous working

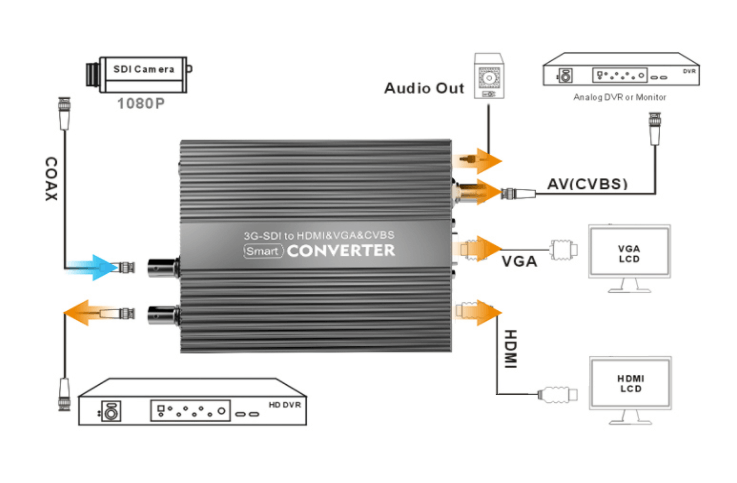

Kiloview CV180 video converter is suitable for the applications that need to convert SDI to (HDMI/ VGA/ AV (CVBS)/ independent audio, etc.) such as broadcast, video teaching and training, HD video information release, HD video long-distance transmission, video conferencing, multimedia advertising and video security monitoring etc..

High compatibility, wide application.

• SD/HD/3G SDI input together with built-in SDI clock recovery circuit and line equalizer, it can recover attenuation and distortion SDI signal after long-distance transmission.
• HDMI/VGA/AV(CVBS) output simultaneously supported with self-defined resolution, independent audio output available.
• HDMI/ VGA DDC function supported, it can self-adaptively output the best mode of HDMI/ VGA.
• OSD menu operation interface supported.

High quality image conversion and image enhancement processing, it can make sure the image quality to broadcasting level.

• 10bit YUV4:2:2 conversion, it can keep the color without distortion.
• Professional color adjustment, 3D noise reduction, interlace/ progressive video conversion, video scaling up/down conversion and frame rate conversion etc., which can guarantee the professional image conversion quality.

High quality, 7*24h continuous working mode.

• High quality capacitors, PCB board, interfaces adopted which ensured the stability of the device, making 7*24h continuous working available.
• EMC and HDMI test passed, products have high compatibility and reliability.
• Blue screen display while signal loss.

Model	CV180
Input interface	1×BNC SDI (SD/HD/3G SDI)
Output interface	1*HDMI； 1×BNC AV（CVBS）；1×VGA（Any 2 of signals can be output Simultaneously）
Input format	525i 59.94，625i 50； 720p 23.98/24/25/29.97/30/50/59.94/60； 1080i 50/59.94/60； 1080p 23.98/24/25/29.97/30/50/59.94/60；
Video loop	1×BNC SDI
SDI transmission distance	Belden 1694A: SD-SDI 400m，HD-SDI 200m，3G-SDI 120m； Note: the transmission distance depends on the coax with different specifications
SDI signal amplitude SDI impedance Management	0.8Vp-p 75Ohm Remote-control / PC control
SDI coupling type	AC
Power supply	12V, 1A
Power consumption	4w
Working temperature	-20℃~60℃
Size	120mm*100mm*26mm
Weight	315g
