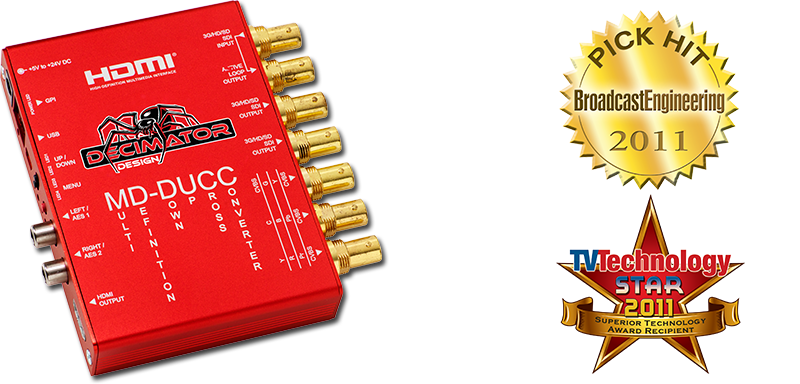

Multi-Definition Down Up Cross Converter
(3G/HD/SD)-SDI to (3G/HD/SD)-SDI, HDMI and Analogue Video
with 2 x AES/EBU or 2 x Analogue Audio Outputs
FEATURES:
- Supports both 3G level A and B on the input and output. Allowing conversion between A and B.
- Horizontal and/or Vertical image flipping via the built in scaler.
- Auto detects 3G, HD or SD (26 Formats in total)
- Full 10-bit data path and multipoint interpolation
- Professional motion-adaptive de-interlacing
- True Down Up Cross conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no matter what the input format is
- Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions
- Full 16-Channel Audio metering with:
- Any of the 4 audio groups individually selectable
- Vertical or Horizontal Bars
- AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only
- Transparency adjustment
- Separate Bar and Float Ballistics control
- Adjustable Reference level
- Red, Yellow and Green Range adjustment
- Bar thickness adjustment
- Margin adjustment
- Adjustable Graticules Generator with:
- Separate enables for Safe Action, Safe Title and Centre Cross
- Adjustable position for either Safe Action or Safe Title
- Adjustable colours for Safe Action, Safe Title and Centre Cross
- Text Overlays with:
- (NEW) Custom Position, Size and Justification
- Adjustable Foreground and Background colours
- Adjustable 16 character text
- Current input format status
- The audio source for all 4 stereo pairs in the HDMI output can be selected from the 8 stereo pairs available in the SDI input
- When scaling is enabled, the audio source for all 8 stereo pairs in the SDI output can be selected from the 8 stereo pairs available in the SDI input
- HDMI output:
- Selectable analogue video output from:
- 3 x CVBS out
- YPbPr out
- RGB out
- CVBS & YC out
- 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
- GPI on RJ-45 for Tallies
- 3G/HD/SD-SDI Active Loop-Through Output
- De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
- LEDs for status and buttons for basic configuration
- USB port for control and firmware updates
- Locking DC Power Socket
- The following is also included with the unit:
- Power Supply, HDMI Cable, USB Cable and Mounting Bracket
