HDMI / SDI CROSS CONVERTER
with Scaling, Frame Rate Conversion, Overlays,
Video Test Pattern Generator and Audio Tone Generator
- Support both 3G level A and B on the input and output. Allowing conversion between A and B.
- Horizontal and/or Vertical image flipping via the built in scaler:
- 1.SDI IN to HDMI and SDI OUT
- 2.SDI IN to SDI OUT and HDMI IN to HDMI OUT
- 3.SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
- 4.SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
- 5.HDMI IN to SDI OUT and SDI IN to HDMI OUT
- 6.HDMI IN to HDMI and SDI OUT
- 7.HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
- 8.HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
- 9.Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
- 10.Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
- 11.Scaled SDI IN to HDMI and SDI OUT
- 12.Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
- 13.Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
- 14.Scaled HDMI IN to HDMI and SDI OUT
- Professional 3G/HD/SD Test Pattern Generator featuring:
- 26 Selectable Output Formats
- 54 Test Patterns including Luma and Chroma Zone-plates
- Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

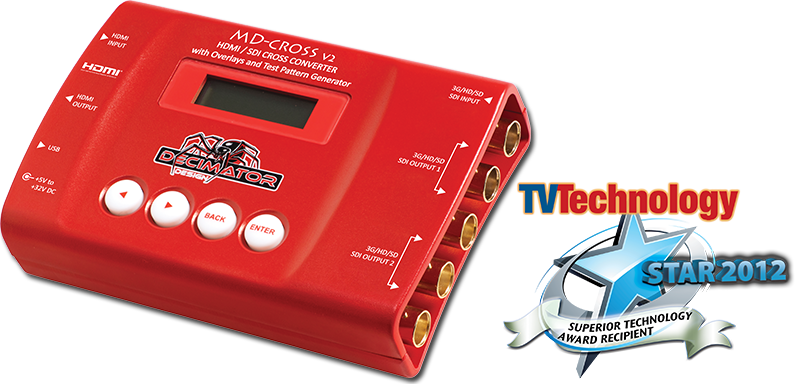

- The MD-CROSS is a truly portable converter, that incorporates a new easy to use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone.
- This unit also includes:
- (3G/HD/SD)-SDI Active Loop-Through Output
- Full 16-Channel Audio Metering Overlays
- Adjustable Safe Title and Safe Action Overlays and static Center Cross
- Text Overlays
- USB port for control and firmware updates
- New Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
