1 to 16 Channel MultiViewer
with HDMI output for 3G/HD/SD
and Custom Layouts
- Support for both 3G level A and B on the inputs.
- Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- Audio ID overlay
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
- Pass-Through mode allowing any of the 16 inputs to be selected and routed to the the HDMI output
- In Pass-Through mode the selected input is passed through to the HDMI output

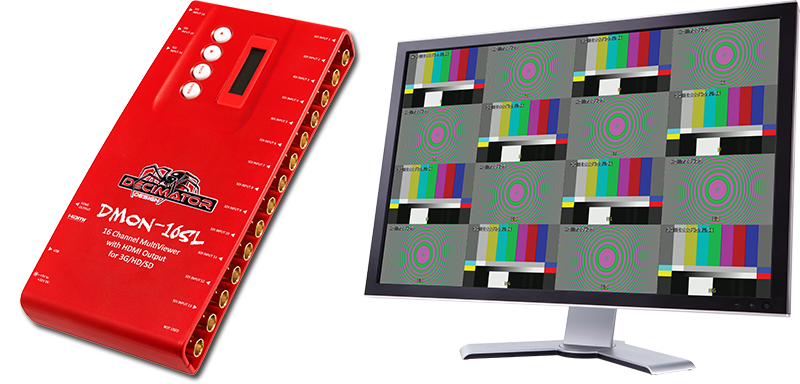

- The DMON-16SL is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
- This unit also includes:
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
