Seamless Interoperability for IP Video Production

Complete your current workflow or create an entirely new one, bridging your network of NDI® systems and software with SDI or SMPTE ST 2110 infrastructure. With the turnkey connection and conversion capabilities of Vizrt NC1 Studio I/O Modules, you can integrate compatible devices across your network for switching, streaming, display, and delivery.

• Multi-channel video translation for delivery to compatible destinations and devices with near-zero latency
• Stackable, scalable architecture supporting systematic expansion and strategic deployment
• Fully equipped for facility installation with low-profile 1RU chassis, industry-standard hardware, and redundant power
• Designate for any supported I/O combination, with format and resolution independently configurable per channel
• Multi-channel video translation for delivery to compatible destinations and devices with near-zero latency
• Stackable, scalable architecture supporting systematic expansion and strategic deployment
• Fully equipped for facility installation with low-profile 1RU chassis, industry-standard hardware, and redundant power
• Designate for any supported I/O combination, with format and resolution independently configurable per channel

Adapt. Grow. Evolve.

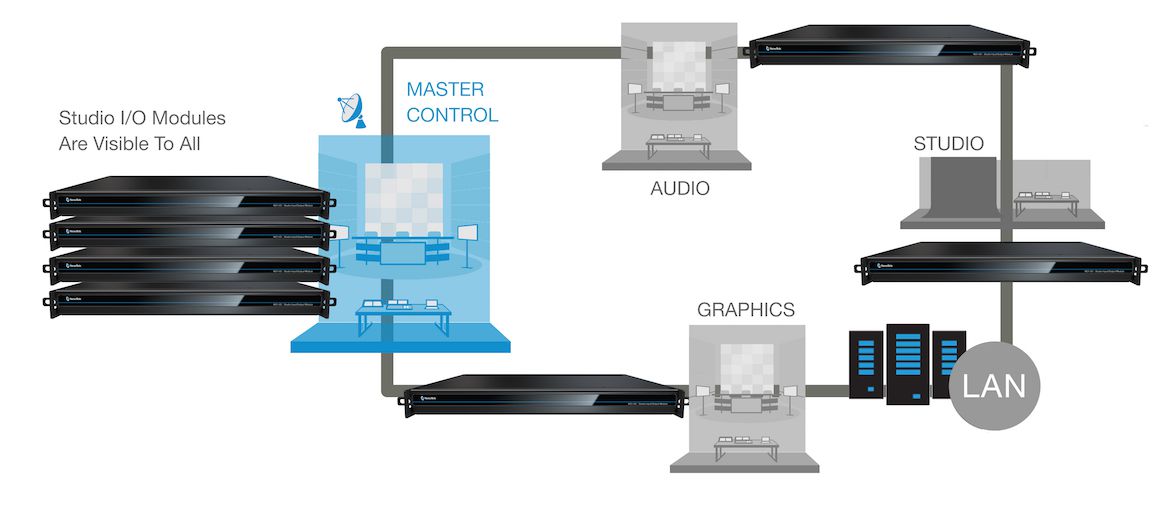

Commitments and requirements vary from production to production, environment to environment. Powerful and versatile, Vizrt NC1 Studio I/O Modules effortlessly adapt to evolving production needs to facilitate the multi-source, multi-destination, multi-system, and multi-site workflows that your unique business models demand.

Essential Studio Functionality

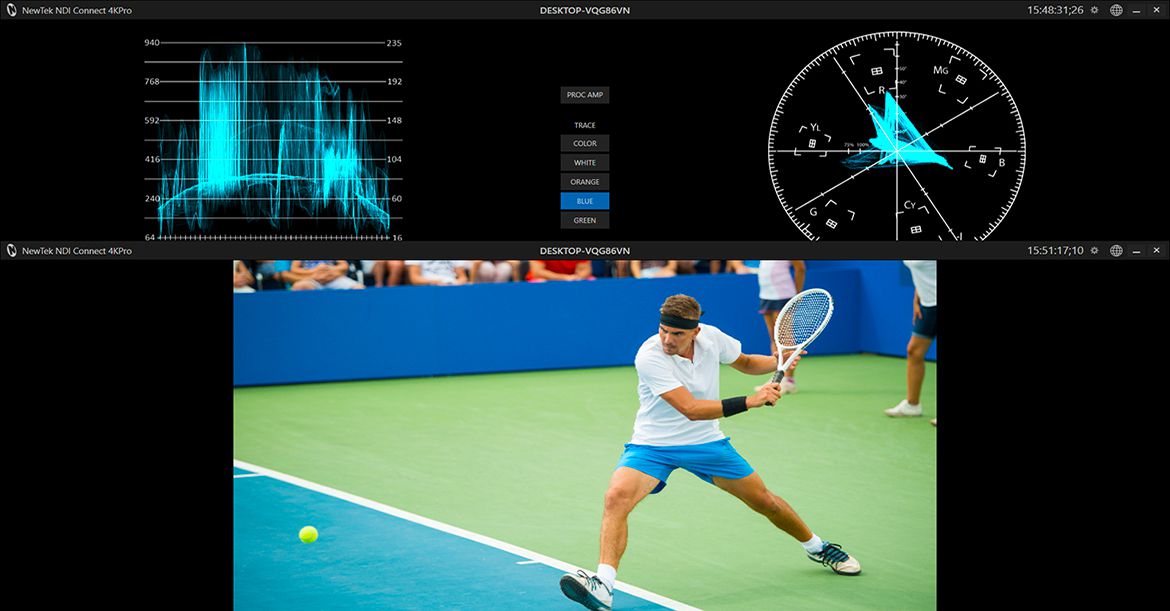

Be confident in your presentation with local monitoring and management tools to include a dedicated multiviewer with selectable workspace layouts and customizable viewports, integrated waveform and vectorscope displays, and precision color correction capabilities.

Capitalize on existing investments and emerging technologies.

Studio I/O Module Features

From connecting established and emerging technologies, to expanding the quantity and type of available inputs and outputs, to linking locations across your network, Vizrt NC1 Studio I/O Modules are powerful, versatile, and fully turnkey systems made for IP video production workflows.

3G/HD/SD I/O
Input, translate, and output multiple video channels in resolutions up to 1080p at 60 frames per second.

Color Correction
Independently adjust the color characteristics of each channel, manually configuring brightness, contrast, hue, saturation, white balance, and more with integrated proc amp controls, or optionally enable automatic color matching between channels.

Compatible With Any NDI® Workflow
Integrate over IP with any compatible system, device, or application that supports NDI®, including Vizrt solutions and products from third-party manufacturers and developers

Configurable A/V Sources
Independently configure the video and audio for each channel, selecting from any source accessible to your Studio I/O Module.

Multi-Format Processing
Accept and deliver video in any combination of compatible formats, with resolution and frame rate configurable per channel.

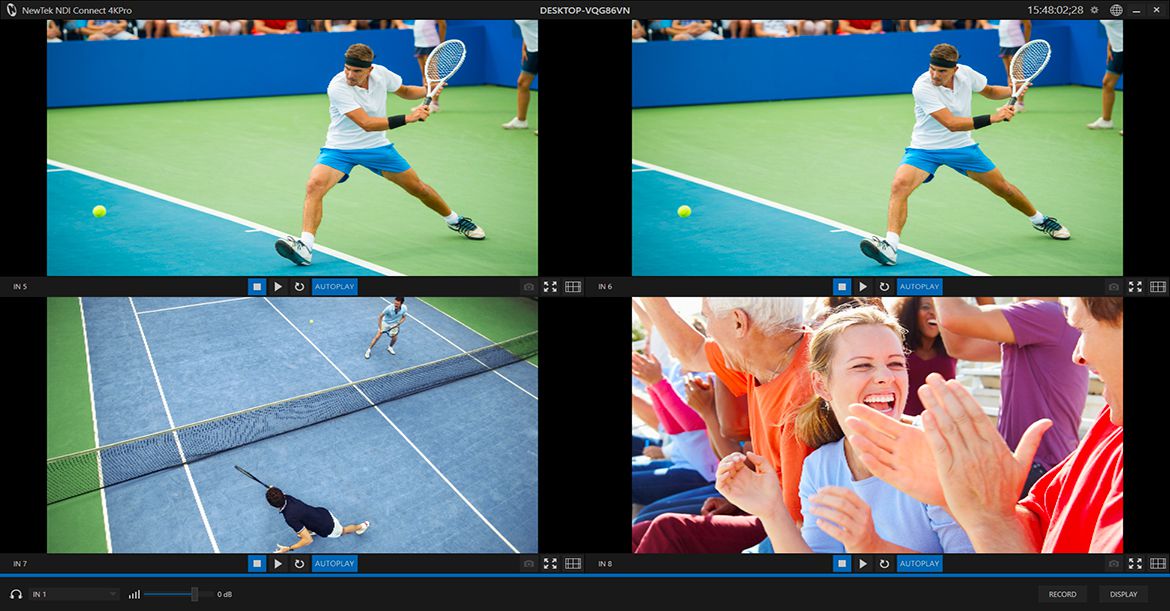

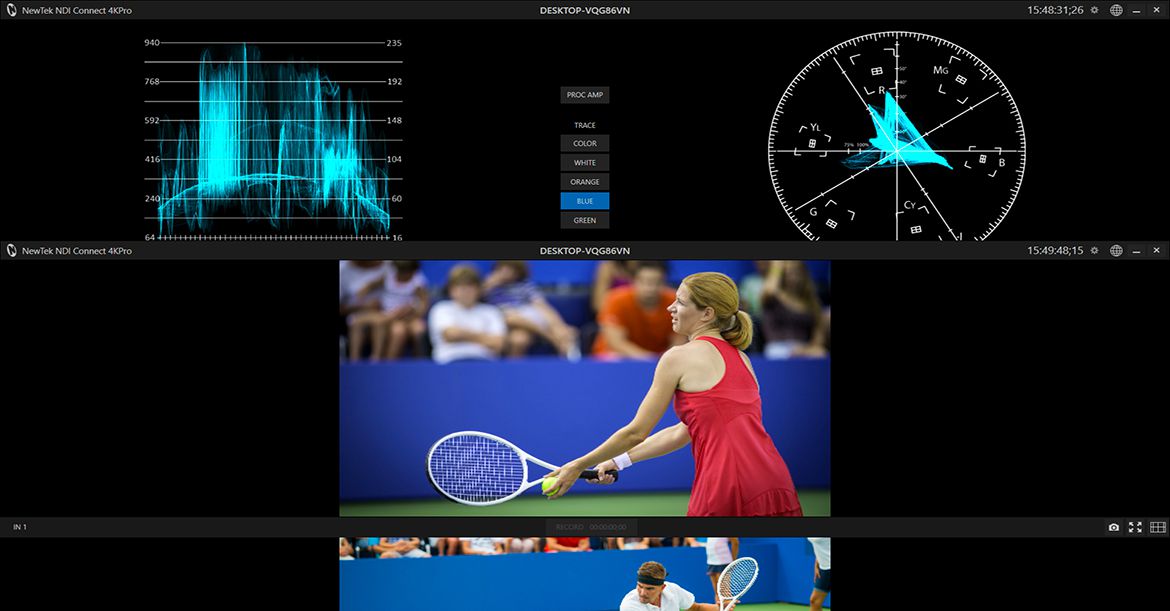

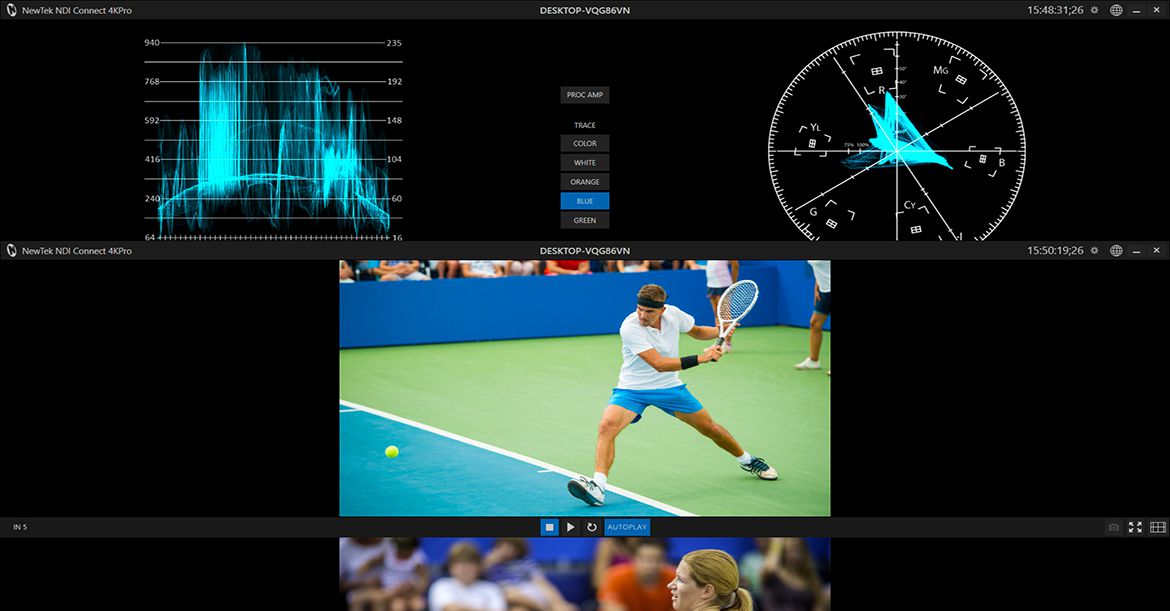

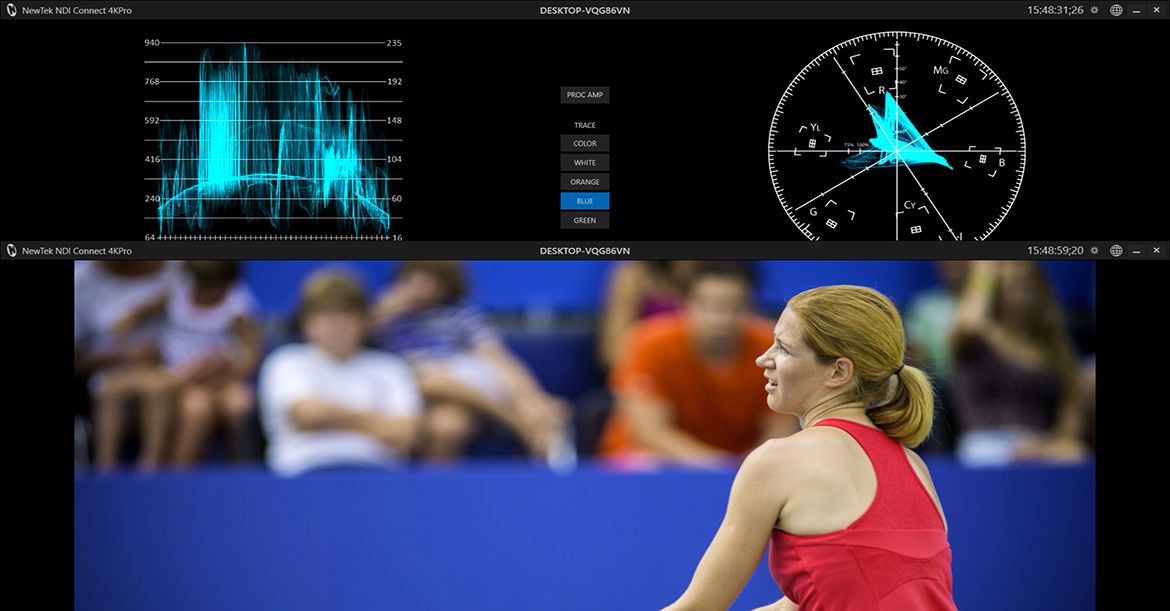

Multiviewer

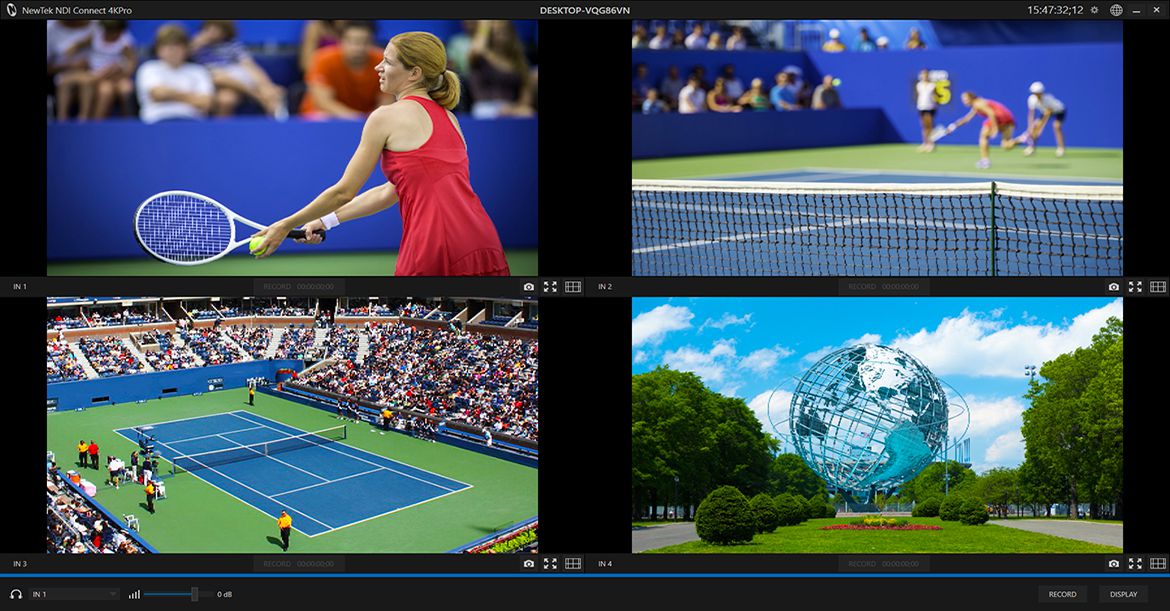

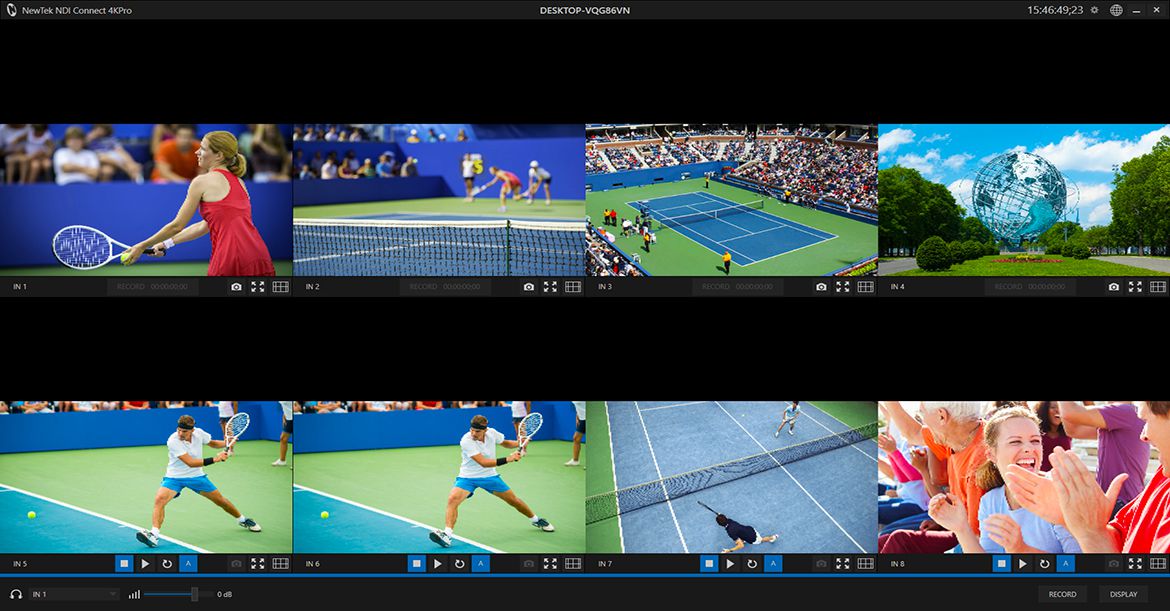

Monitor a single source, multiple live signals, or all channels simultaneously, with selectable workspace layouts and customizable viewports.

NDI® KVM
Access the user interface and control your Studio I/O Module remotely from any compatible computer, device, or touchscreen connected to the same network.

Professional Audio
Present high-quality sound, with flexible audio integration to include comprehensive support* for Dante™, AES67, and ASIO sound devices*

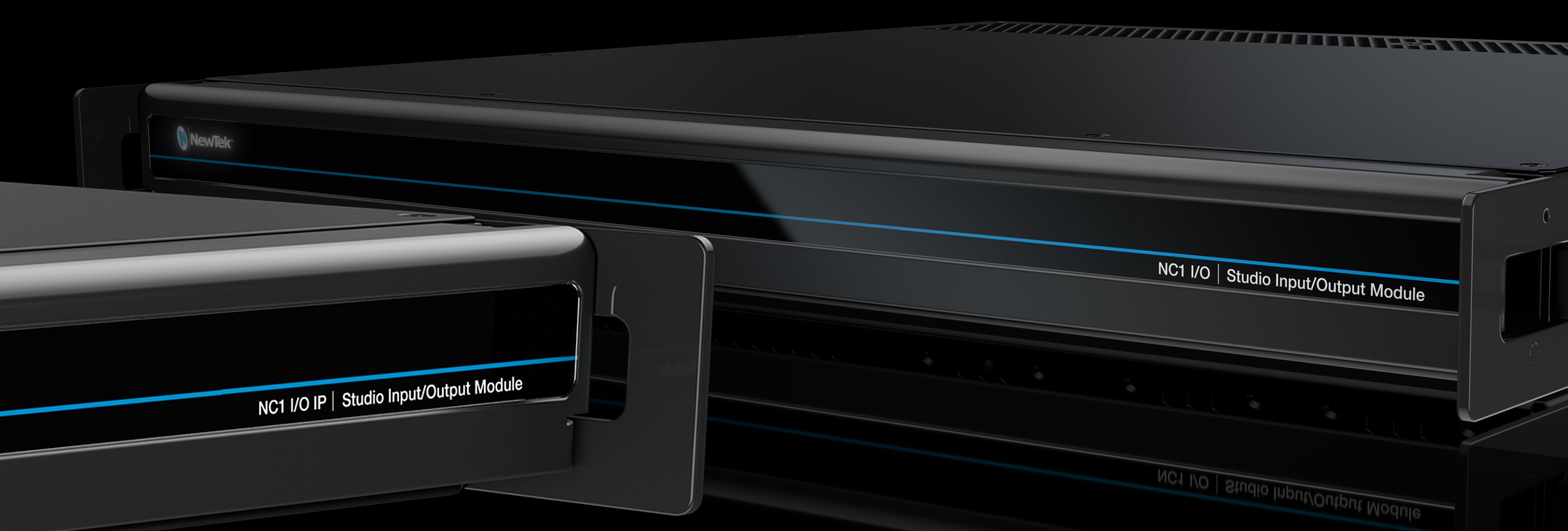

Rackmout Chassis
Industry-standard 1RU rackmount chassis integrates into any professional production environment, setup, or workflow.

Redundant Power
Safeguard module availability with 280W redundant power supplies.

Video Servers
Optionally configure each channel for stored media playback, with extensive file format support, on-screen transport controls, and Autoplay setting.

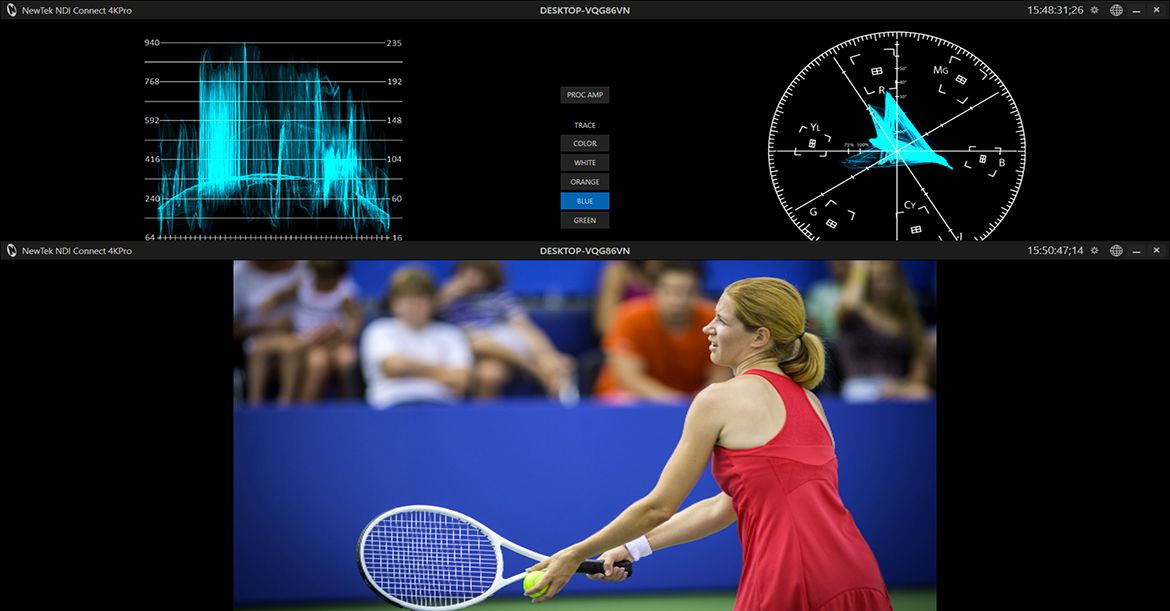

Waveform and Vectorscope

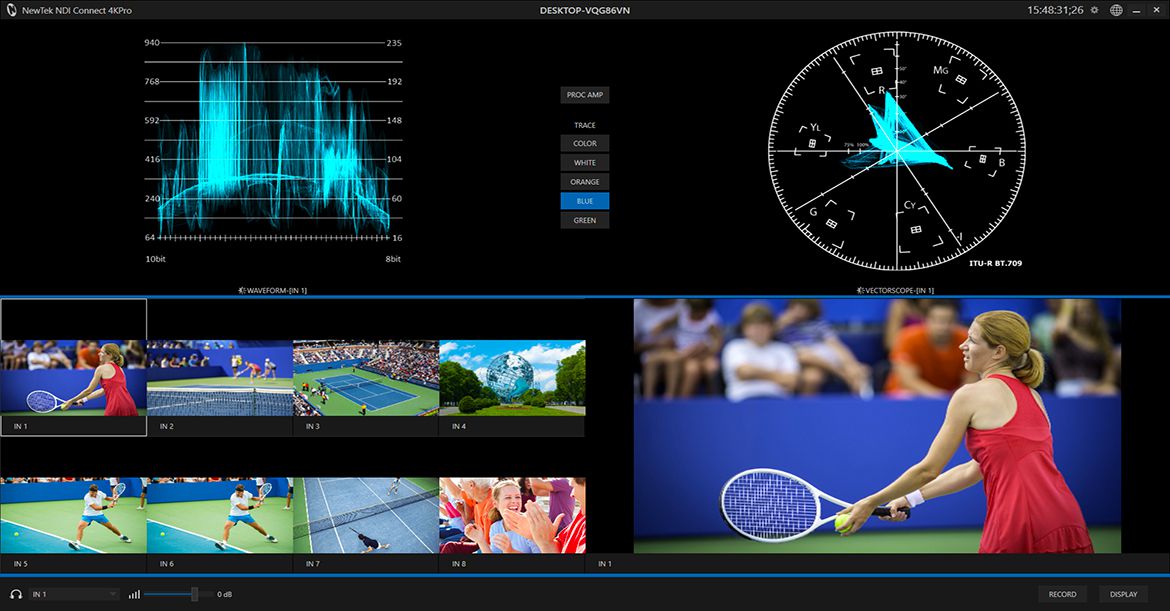

Calibrate and monitor video signals for broadcast compliance and viewing quality with built-in waveform and vectorscope displays.

Free System Updates
Download and install free system updates to ensure your Studio I/O Module is equipped with the latest features, capabilities, and performance enhancements.

Vizrt NC1 Studio I/O Module Exclusive Features

SDI Interoperability

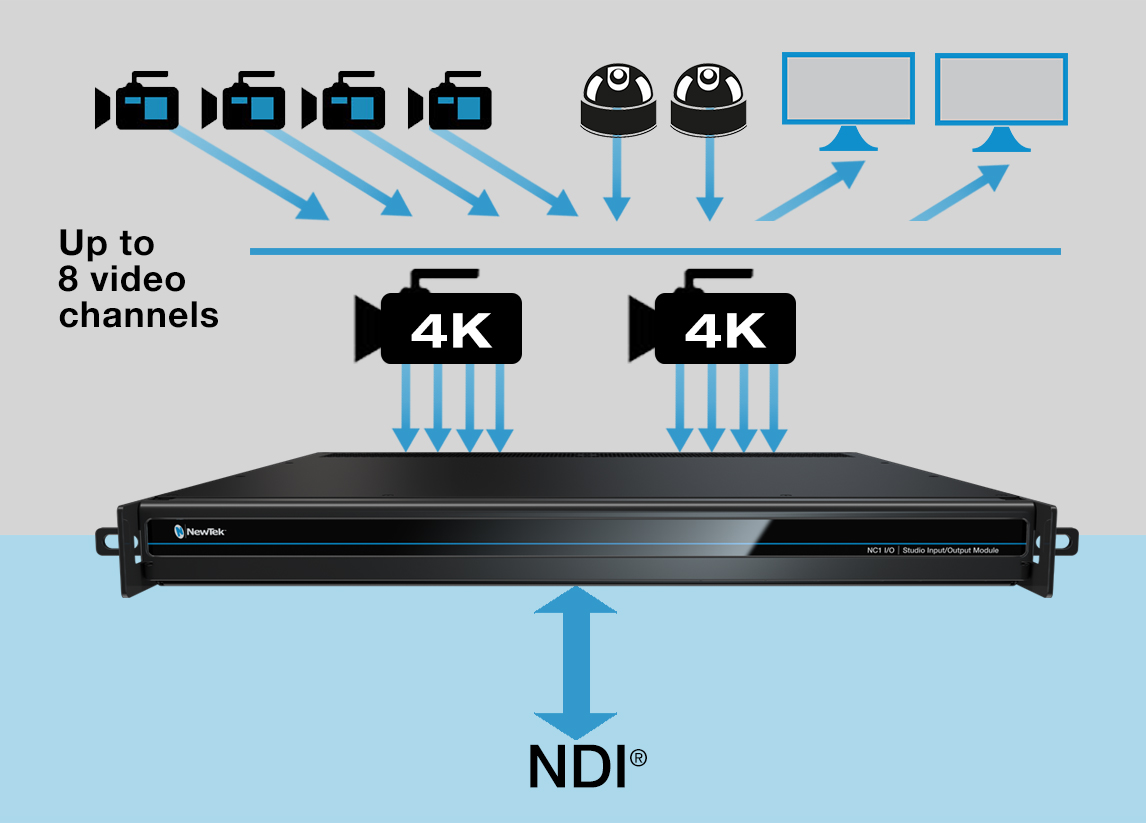

Connect up to eight SDI production devices via DIN 1.0/2.3 for input, output, or a combination of both, with support for embedded audio.

4K UHD I/O
Native support for 2160p video at up to 60 frames per second, with baseband input, output, or both enabled via 3G-SDI quad-link grouping.

Grab
Grab full-resolution still images of channel video for real-time use, post-production activities, or archive.

Hardware Destination
Direct the video and audio output from the designated channel to a specific SDI connector on the module backplane, or other supported devices where applicable.

Network Source Support
Optionally configure other network sources for input or output, with support for real-time conversion and transmission of common IP video stream formats to include RTMP, RTSP, and HTTP.

Recording
Capture native-resolution video from one, multiple, or all channels to external USB 3.0 media drives or network attached storage.

Remote Access
Monitor live signals and control your Studio I/O Module remotely from the browser of any networked device, including iOS and Android mobile devices, with a system-specific webpage.

Vizrt NC1 Studio I/O IP Module Exclusive Features

SMPTE ST 2110 Interoperability
Support for full bi-directional conversion of SMPTE ST 2110 to and from NDI®, with guaranteed non-bursty packet transmission of essence signals.

10GbE Networking with SFP+ Support
Outfitted with dual-port 10 Gigabit NIC with SFP+ interfaces supporting MSA-compatible transceivers.

16-Channel Audio
Support for up to 16 channels of AES67 PCM audio per video flow for SMPTE ST 2110-30 encapsulation.

Genlock
Support for genlock over IP as per SMPTE ST 2059-2

Virtualization Gateway
Deploy as a bridge between standards-based SMPTE ST 2110 infrastructure and a virtualized environment utilizing NDI® to move video between VMs.
